Categories | Economic 4.5KA, 6kA Regular Series Circuit Breaker |

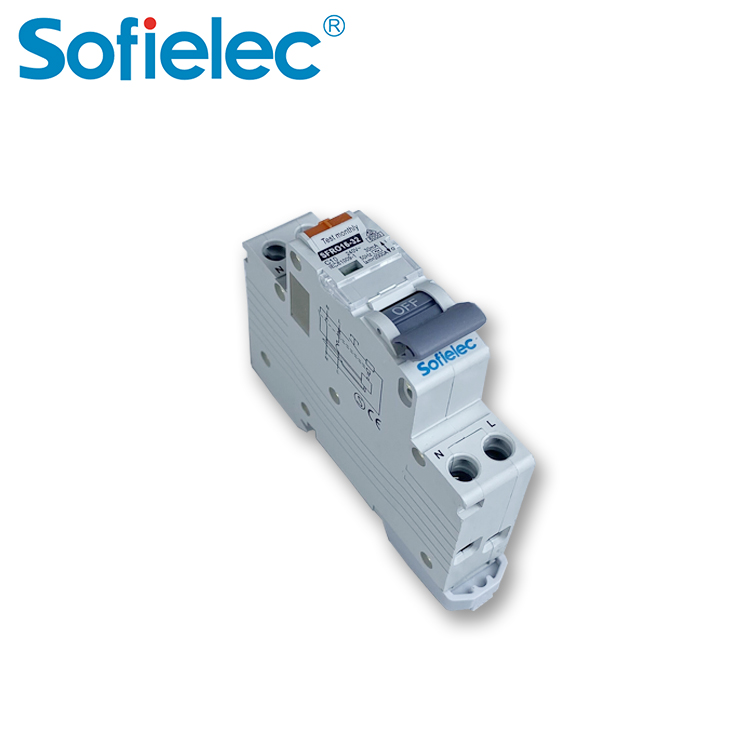

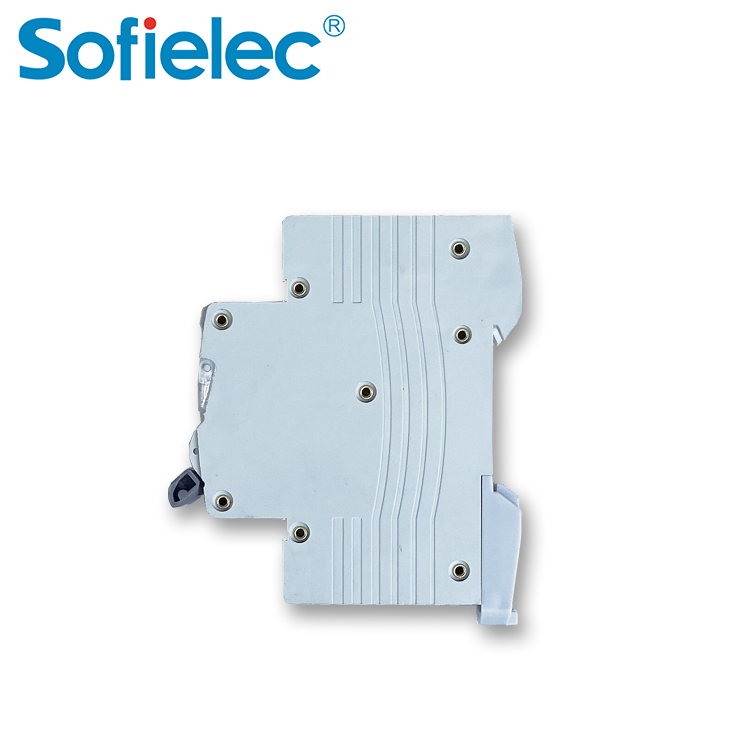

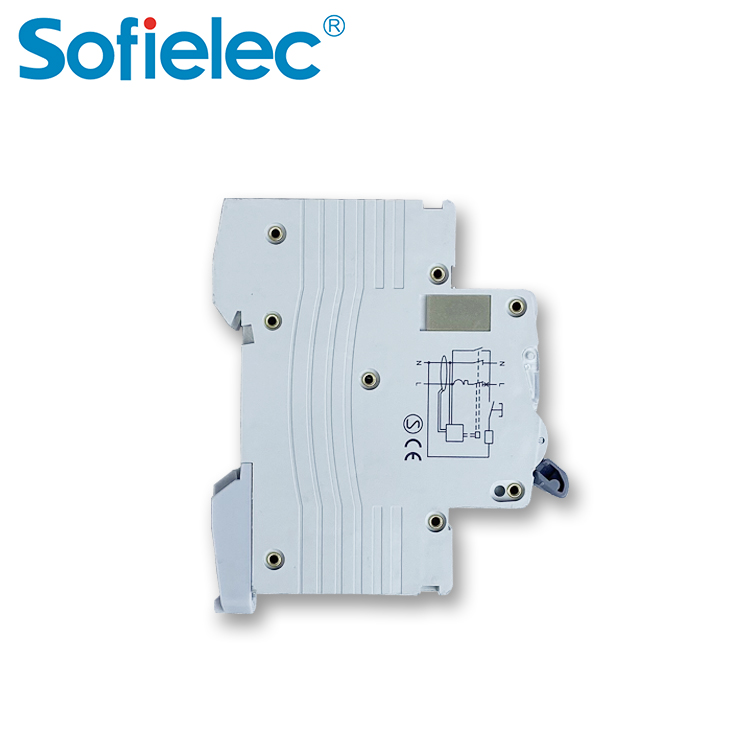

Model | SFRO16-32 |
pole | 1P+N |
Residual current characteristics | ac or a |
Rated short-circuit breaking capacity | 6KA |
Rated current (A) | 6, 10, 16, 20, 25, 32 |
Rated voltage | 240V |
Tripping curve | B,C |
Construction and Feature |
■Operating machanism adopt double contact with DPN form, N pole opening first,then breaking. |
■Leakage protecion adopt electronic type integrated circuit,Contact ON/OFF state display. |
■Trigger has middle-postion function and a clamshell to put tags in and characteristic stripes on both sides. |
■Provides protection against earth fault/leakage current,short-circuit,overload,and function of isolation. |
Technical Data |
■Residual current characteristics:AC.A |
■Pole No.:1P+N |

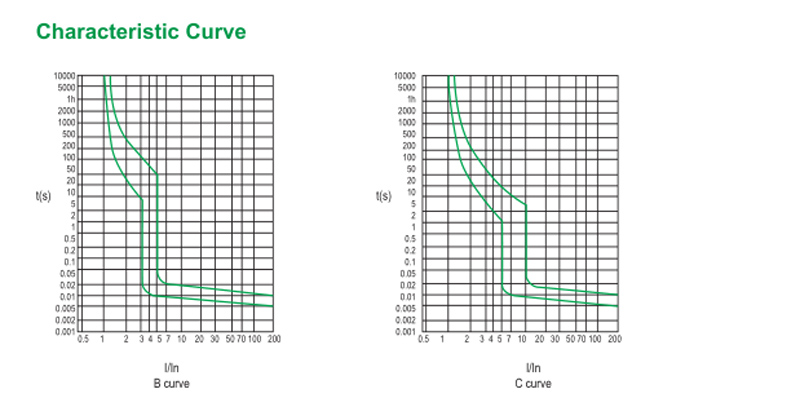

■Tripping curve:B,C |
■Rated short-circuit breaking capacity:6 kA |
■Rated current(A):6,10,16,20,25,32 |
■Rated voltage:240V |
■Rated frequency:50Hz |
■Rated residual operating current(A):0.03 |
■Tripping duration:instantaneous≤0.1s |
■Electro-mechanical endurance:4000 cycles |
■Diameter of screw d(mm):M4 |
■Degree of protection:IP20 |
■Fastening torque:12.N.m |
□On symmetrical DIN rail 35mm |

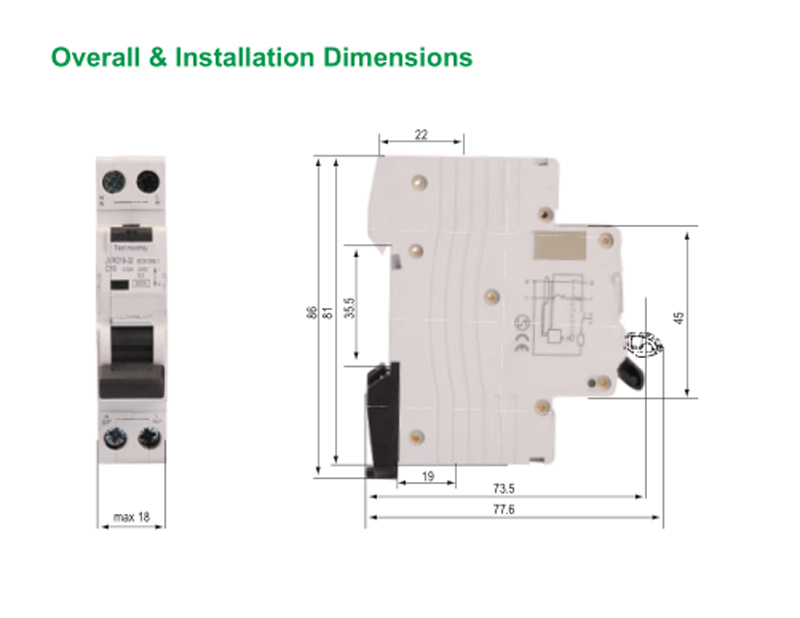

□Terminal Connection Heihgt:H1=19mm H2=22mm |
