■Thread spe. Metric
■Material: Parts A,C,E are made of UL approved nylon PA66,parts B and D are made of Nitie butadiene rubber(NBR).
■Working temperature:-40℃ to 100℃ in static state, instantaneous heat resistanceup to 120℃;-20℃ to 80℃ in dynamic state, instantaneous
heat resistance up to 100℃.
■Characteristics: Special design of clamping die and rubber part, large range in clamping cable,ultra-strong stretching resistance, waterproof,
dustproof, and high ability to resist salt, acid, alkal,alcohol, grease and general solvent.
■Color: Black(RAL9005),light grey(RAL7035),silver(RAL7001)as well as special colors that can be designed at request.

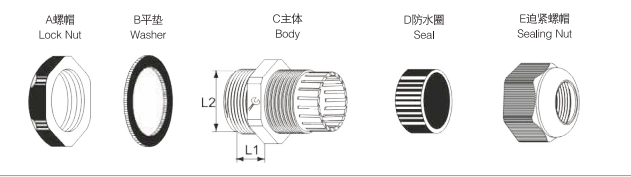

Schematic

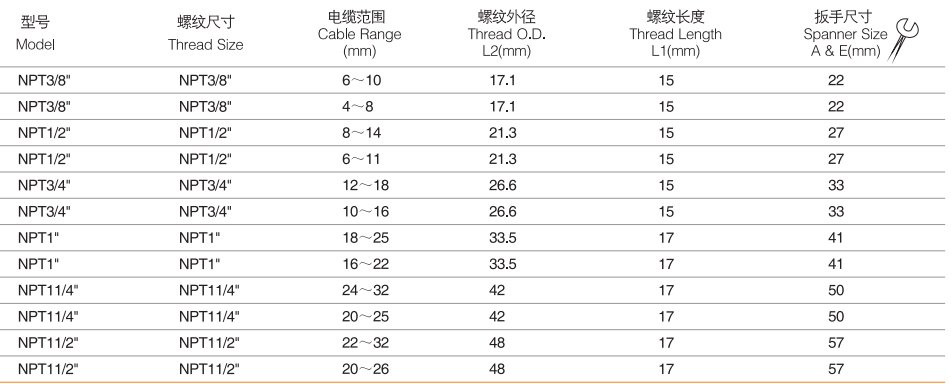

technical parameter
