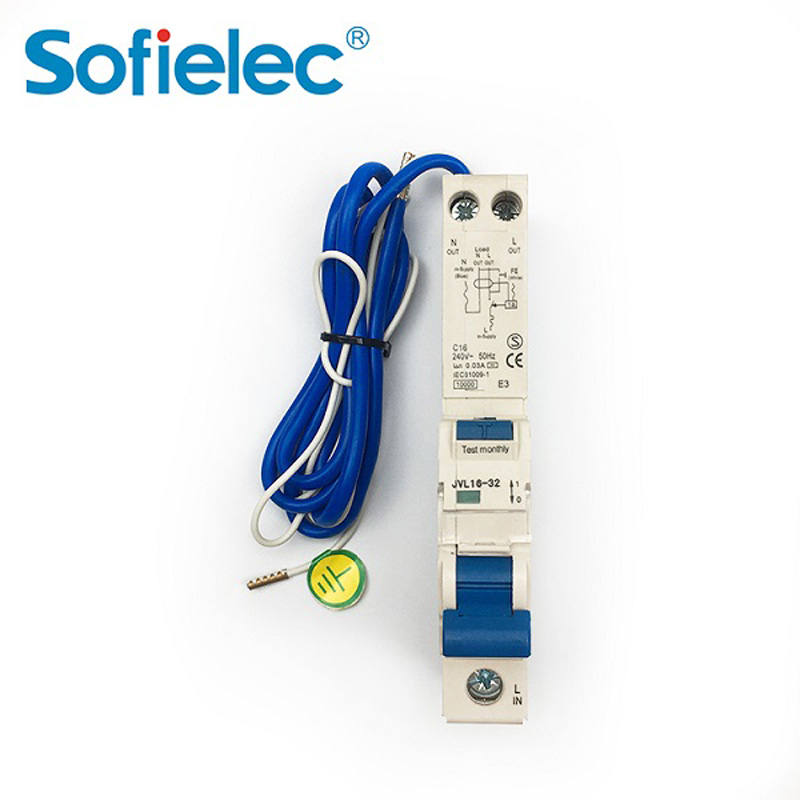

Elegant appearance; cover and handle in arc shape make comfortable operation.
Contact position indicating window
Transparent cover designed to carry label.
In case of overload to protected circuit, RCBO handle trips and stays at central
position, which enables a quick solution to the faulty line. The handle cannot stay in
such position when operated manually.
RCBO handle can be locked either at “ON” position or at“OFF” position to
prevent unwanted operation of the product.
Provides protection against earth fault/leakage current, short-circuit and overload
High short-circuit capacity
Provides complementary protection against direct contact by human body.
Effectively protects electric equipment against insulating failure
Contact position indication
Provides protection against over-voltage

Categories Superior 10kA 16 Series Circuit Breaker
Model JVL16-32
Type electronic type
Residual current characteristics A,AC
Pole No 1P+N
Tripping curve B,C,D
Rated short-circuit capacity 10kA
Rated current (A) 1, 2,3,4,6,10,16,20,25,32
Rated voltage 230V AC
Rated frequency 50/60Hz
Rated residual operating curnet(mA) 0.3.01.0.3
Tripping duration instantaneous <0.1s
Technical Data

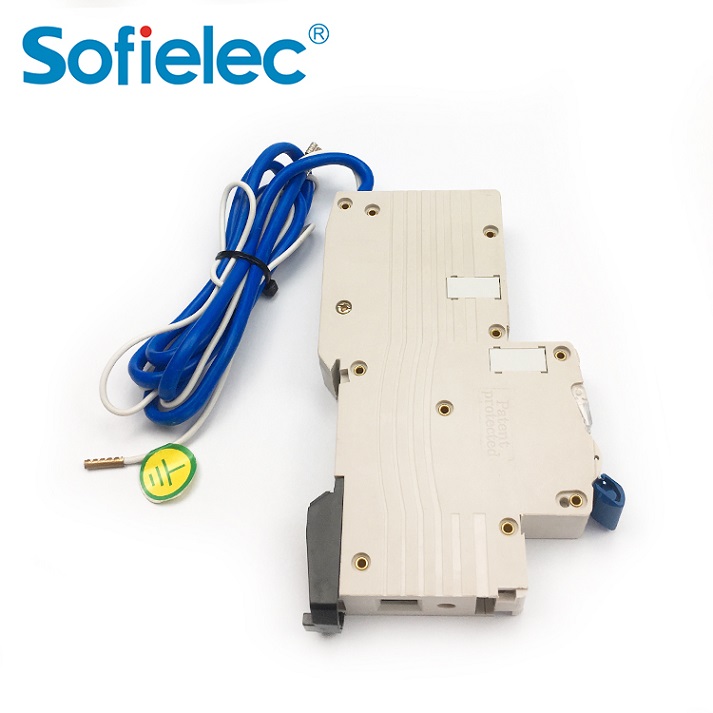

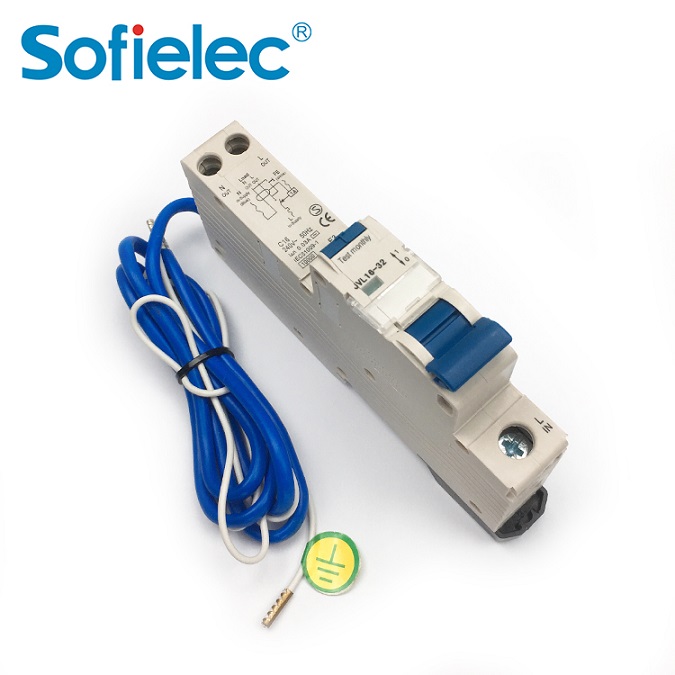

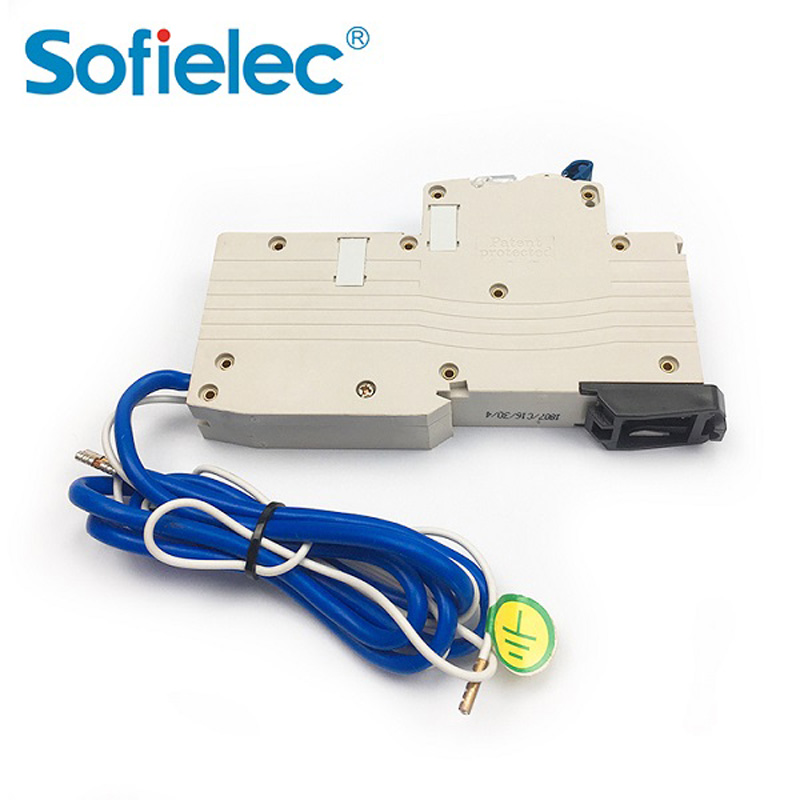

10kA JVL16-32 1P+N single module RCBO circuit breaker

Type: electronic type

Residual current characteristics: A,AC

Pole No.: 1P+N

Tripping curve: B, C, D

Rated short-circuit capacity: 10kA

Rated current (A): 1, 2,3,4,6,10,16,20,25,32

Rated voltage: 230V AC

Rated frequency: 50/60Hz

Rated residual operating current(mA): 0.03,0.1,0.3

Tripping duration: instantaneous<0.1s

Terminal Connection Height: H1=19mm H2=22mm H3=18mm



10kA JVL16-32 1P+N single module RCBO circuit breaker

Electro-mechanical endurance: 4000 cycles

Connection terminal:pillar terminal with clamp

Connection capacity: Rigid conductor 10mm ²

InstallationOn symmetrical DIN rail 35mm Panel mounting

Construction and Feature

10kA JVL16-32 1P+N single module RCBO circuit breaker

1、Elegant appearance; cover and handle in arc shape make comfortable operation. Contact position indicating window.

2、Transparent cover designed to carry label.

3、In case of overload to protected circuit, RCBO handle trips and stays at central position, which enables a quick solution to the faulty line. The handle cannot stay in such position when operated manually.

4、RCBO handle can be locked either at “ON” position or at“OFF” position to prevent unwanted operation of the product.

5、Provides protection against earth fault/leakage current, short-circuit and overload

6、High short-circuit capacity

7、Provides complementary protection against direct contact by human body.

8、Effectively protects electric equipment against insulating failure

9、Contact position indication

10、Provides protection against over-voltage

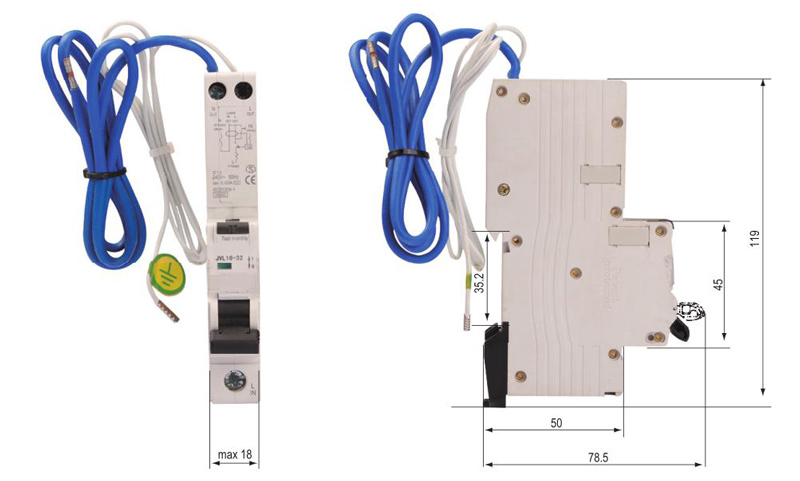

Overall & Installation Dimensions

10kA JVL16-32 1P+N single module RCBO circuit breaker

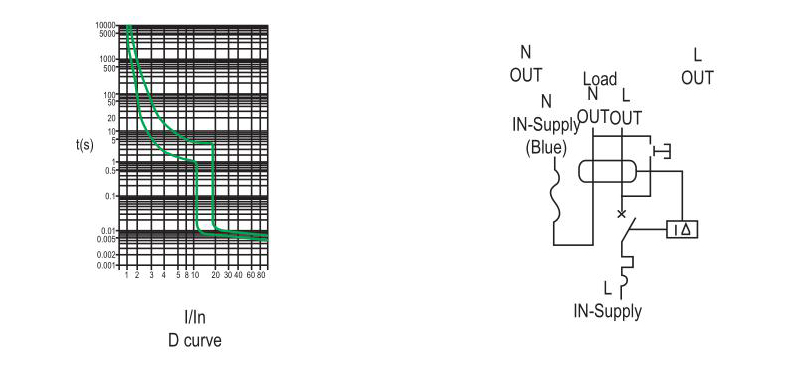

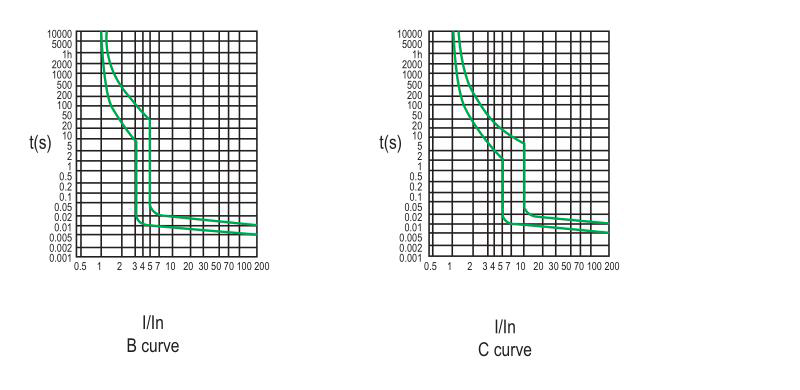

Characteristic Curve

Characteristic Curve

Characteristic Curve



Video
