Technical Data
■Ratedcurrent: 6A,8A,10A,13A,16A,20A,25A,32A,40A
■Rated voltage: 240V(230V)~
■Rated frequency: 50/60Hz
■Number of pole: 1P+N
■Module size: 18mm
■Curve type: B&C Curve
■Breaking capacity: 6000A
■Rated residual operating current:
□10mA,30mA,100mA,300mA Type A and AC
■Optimum operating temperature: -25℃ to 40℃
■Terminal Tightening torque: 1.2N-m
■Terminal Capacity(top): 16mm2
■Terminal Capacity(bottom): 16mm2
■Electro-mechanical endurance: 4000 cycles
■Mounting: 35mm DinRail
■Line and Load reversible:
□Suitable Busbar: PIN Busbar
Compliance
■IEC61009-1
■EN61009-1
■AS61009-1
■NZS61009-1
■ESV Compliant

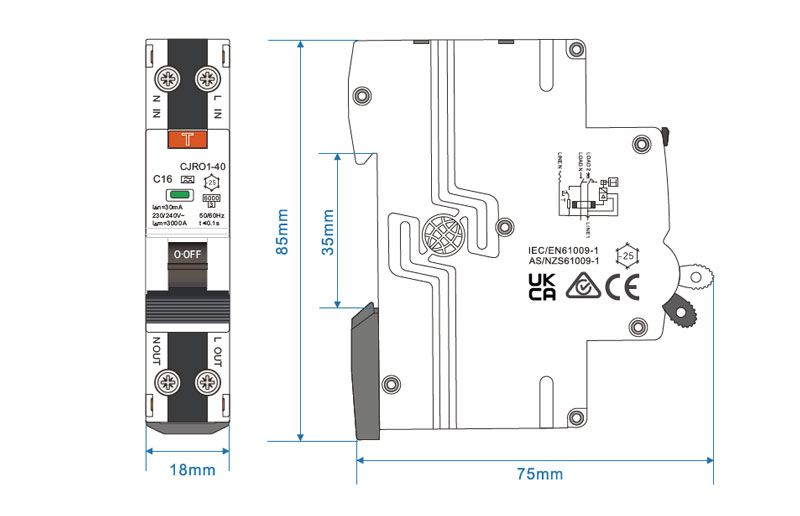

Overall & Installation Dimensions

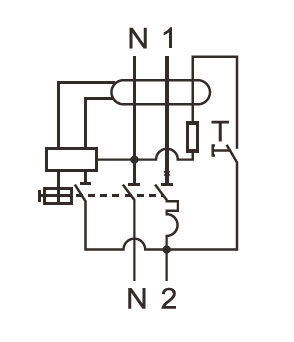

Wiring Diagram

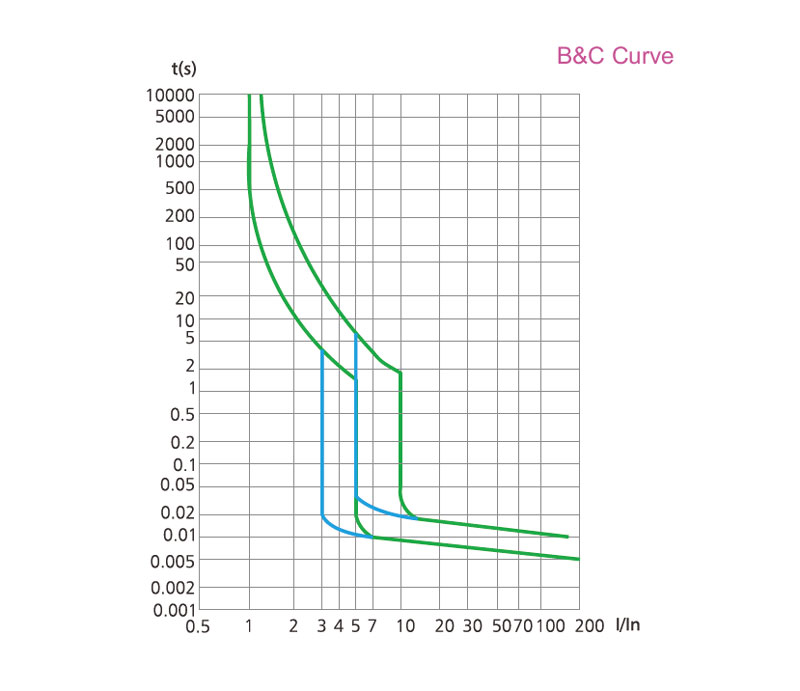

The tripping characteristic curves
