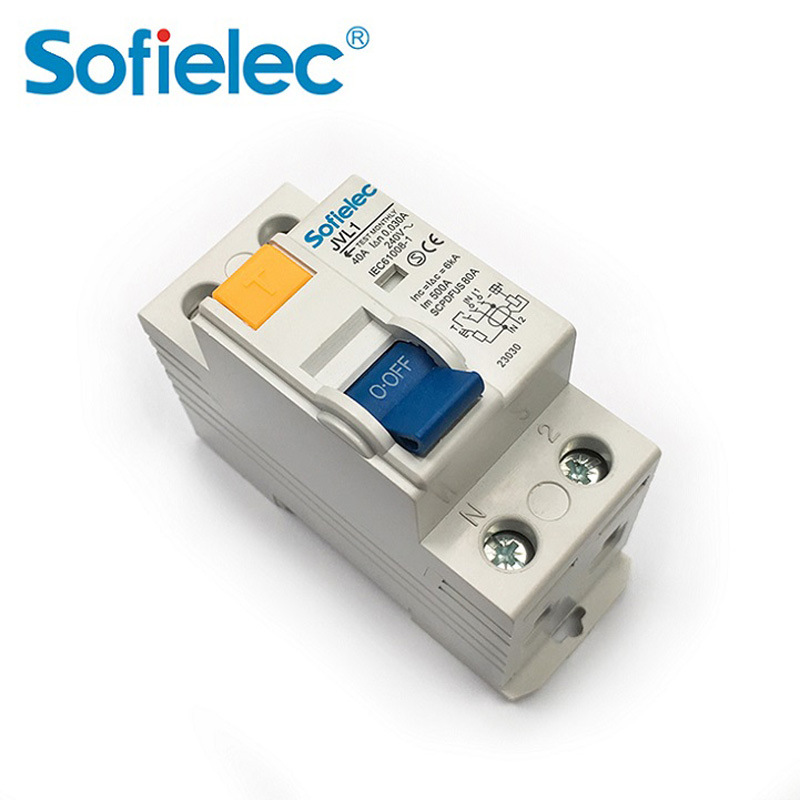

A 2-pole Earth Leakage Circuit Breaker (ELCB) with a rating of 40A and a breaking capacity of 6kA is designed to detect and protect against earth leakage faults in electrical circuits. The 50mA indicates the sensitivity of the ELCB, meaning it will trip and disconnect the circuit when a leakage current of 50mA or higher is detected.
ELCBs are commonly used in electrical installations to prevent electric shock and fire hazards caused by ground faults. They provide an additional layer of safety by detecting any imbalance between the live and neutral conductors, indicating the presence of a fault to the earth.
| Categories | Economic 4.5KA, 6kA Regular Series Circuit Breaker |
| Mode | eltro-magnet type, elecronic type |
| Residual current charaterstis | A, AC |
| Pole No | 2, 4 |
| Rated making and breaking capacity | 500(ln=25A.40A) or 10InA(In=63A,80A,100 125A) |
| Rated current(A) | 25, 40, 63 |
| Rated voltage | AC 230(240)/400(415) |
| Rated frequency | 50/60Hz |
| Rated conditional short-circuit current Inc | 10kA |
| Connection capacity | Rigid conductor 25mm |
| Terminal Connection Height | 21mm |
2 Pole Earth Leakage Circuit Breaker Technical Data
|
l Mode: electro-magnetic type, electronic type |
|
l Residual current characteristics: A, AC |
|
l Pole No.: 2, 4 |
|
l Rated making and breaking capacity: 500(In=25A,32,40A),630(In=63A) |
|
l Rated current(A): 25, 40, 63 |
|
l Rated voltage: AC 230(240)/400(415) |
|
l Rated frequency: 50/60Hz |
|
l Rated residual operating current I△n(A): 0.03, 0.1, 0.3, 0.5 |
|
l Rated residual non operating current I△no: 0.5I△n |
|
l Rated conditional short-circuit current Inc: 10kA |
|
l Rated conditional residual short-circuit Current I△c: 10kA |
|
l Tripping duration: instantaneous tripping≤0.3s(0.1) |
|
l Residual tripping current range: 0.5I△n~I△n |
|
l Terminal Connection Height: 21mm |
|
l Electro-mechanical endurance: 4000 cycles |
|
l Connection capacity: Rigid conductor 25mm ² |
|
l Connection terminal: Screw terminal |
|
l Pillar terminal with clamp |
|
l Fastening torque: 2.0Nm |
|
l Installation: On symmetrical DIN rail 35.5mm Panel mounting |
|
l Protection class:IP20 |

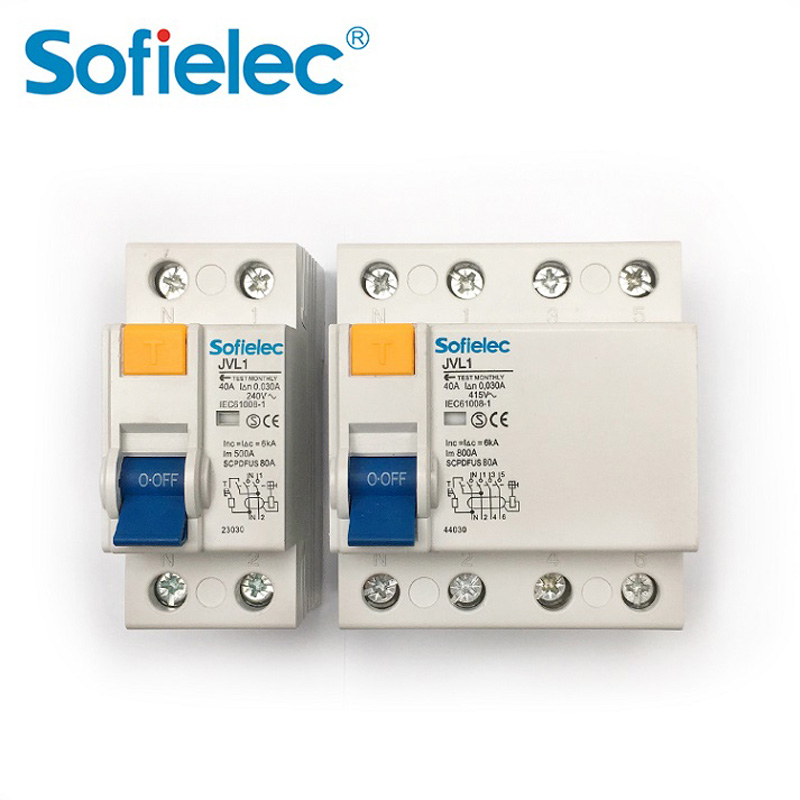

2 Pole Earth Leakage Circuit Breaker Construction and Feature
Fine and unique appearance
Short-circuit and overload dual-protection performance
High-breaking capacity (10KA) that is leading among the world similar products
Unique label, transparent window
Convenient and reliable installation mode
2 Pole ELCB Overall & Installation Dimensions

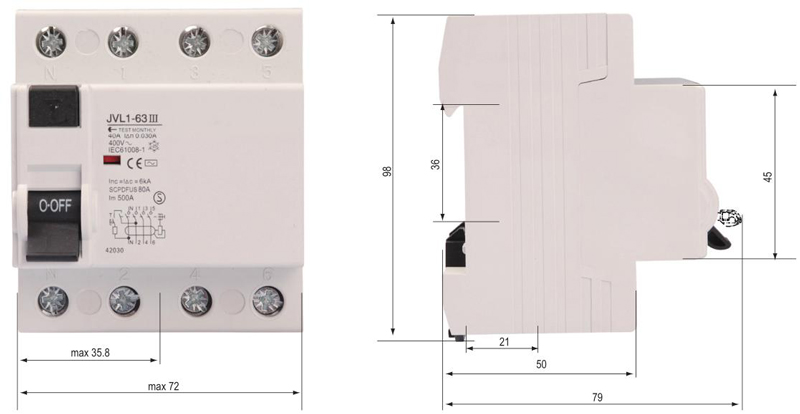

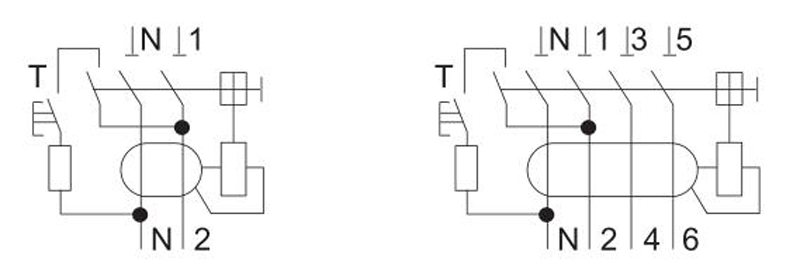

2 Pole ELCB Connection Diagram
