Elegant appearance; cover and handle in arc shape make comfortable operation.
Contact position indicating window
Transparent cover designed to carry label.
In case of overload to protected circuit, RCCB handle trips and stays at central
position, which enables a quick solution to the faulty line. The handle cannot stay in
such position when operated manually.
Provides protection against earth fault/leakage current and function of isolation.
High short-circuit current withstand capacity
Applicable to terminal and pin/fork type busbar connection
Equipped with finger protected connection terminals
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/leakage current occurs and
exceeds the rated sensitivity.
Independent of power supply and line voltage, and free from external interference,
voltage fluctuation

Categories Superior 10kA 16 Series Circuit Breaker
Mode electro-magnetic type
Residual current characteristics A, AC,G,S
Pole No 2, 4
Rated current(A) 25, 40, 63
Rated voltage AC 230(240)1400(415)
Rated frequency 50/60Hz
Terminal Connection Height 19mm
Electro-mechanical endurance 4000 cycles
Fastening torque 2.0Nm
Protection class IP20

RCCB circuit breaker Technical Data

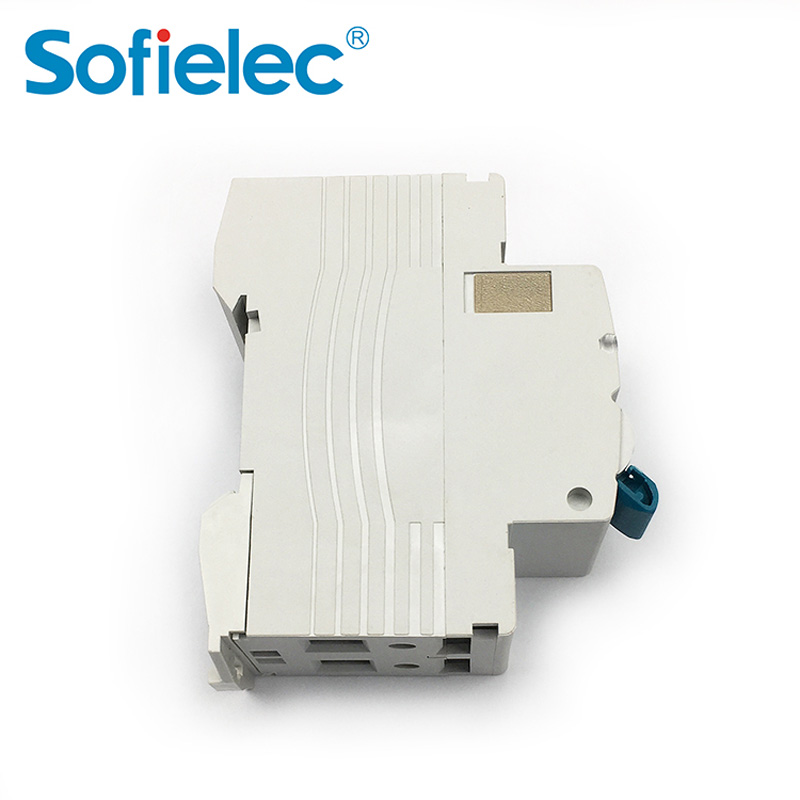

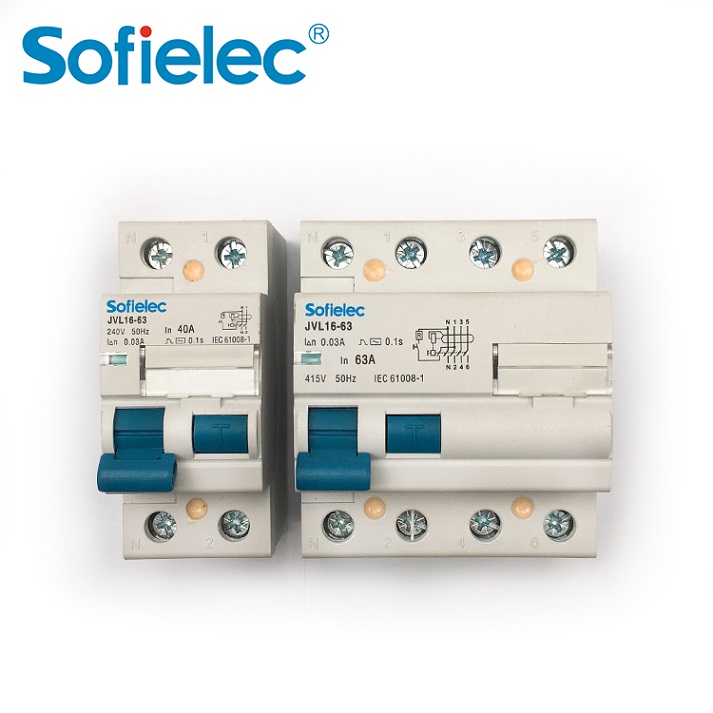

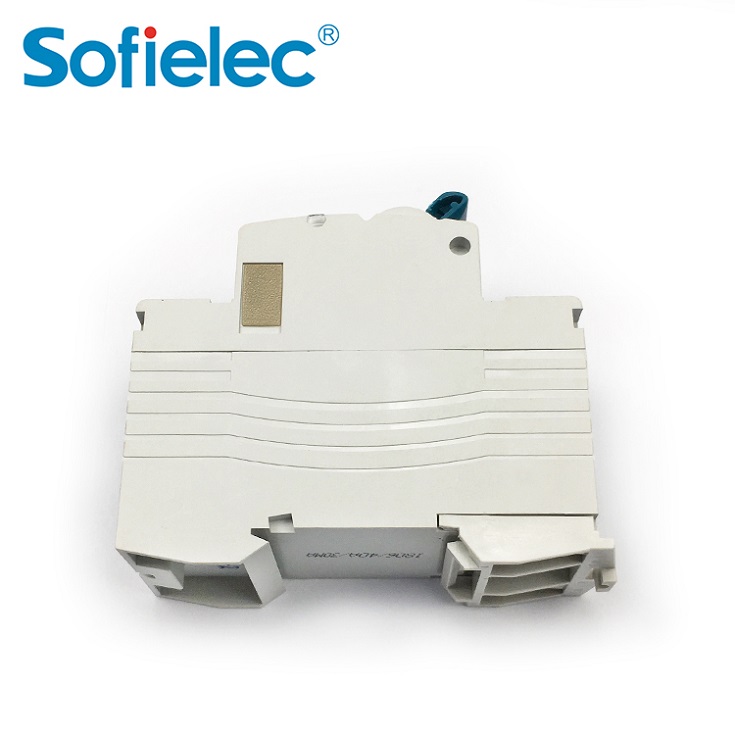

10kA JVL16-63 63A Rated current residual current rccb circuit breaker

● Mode: electro-magnetic type

● Residual current characteristics: A, AC,G,S

● Pole No.: 2, 4

   ● Rated making and breaking capacity:            500A(ln=25A,40A) or 630A(ln=63A)

● Rated current(A): 25, 40, 63

● Rated voltage: AC 230(240)/400(415)

● Rated frequency: 50/60Hz

● Rated residual operating current IAn(A):0.03, 0.1, 0.3, 0.5

●Rated residual non operating current lAno: 0.5IAn

● Rated conditional short-circuit current Inc: 10kA



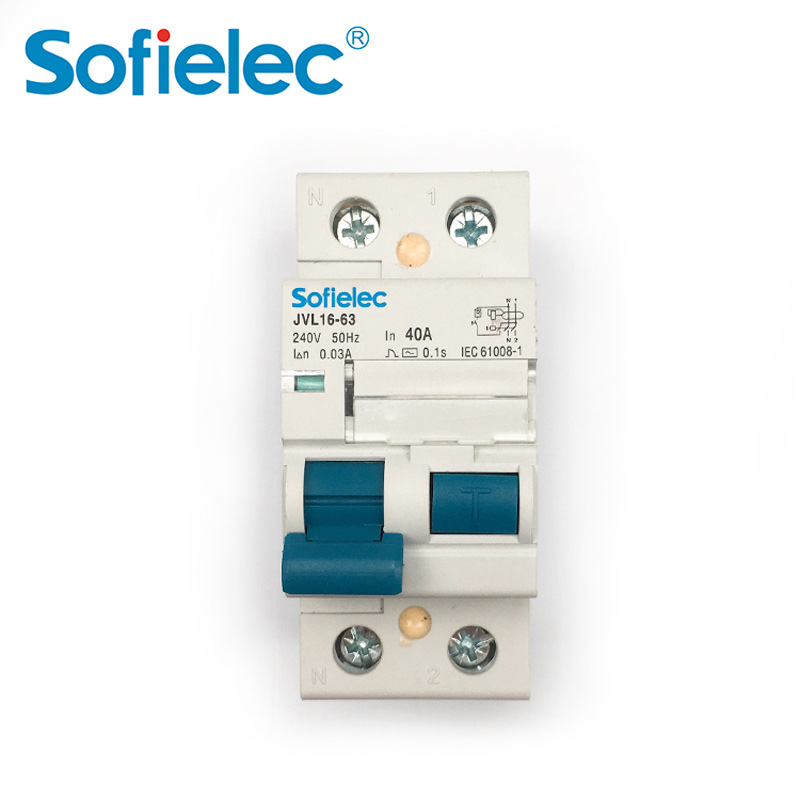

10kA JVL16-63 63A Rated current residual current rccb circuit breaker

● Rated conditional residual short-circuit Current I Ac: 10kA

● Residual tripping current range: 0_5IAnH An

● Terminal Connection Height: 19mm

● Electro-mechanical endurance: 4000 cycles

● Connection capacity: Rigid conductor 25mm²

● Connection terminal:Screw terminal

● Pillar terminal with clamp

● Fastening torque: 2.0Nm

● Installation: On symmetrical DIN rail 35mm Panel mounting

● Protection class:IP20





 RCCB circuit breaker  Construction and Feature

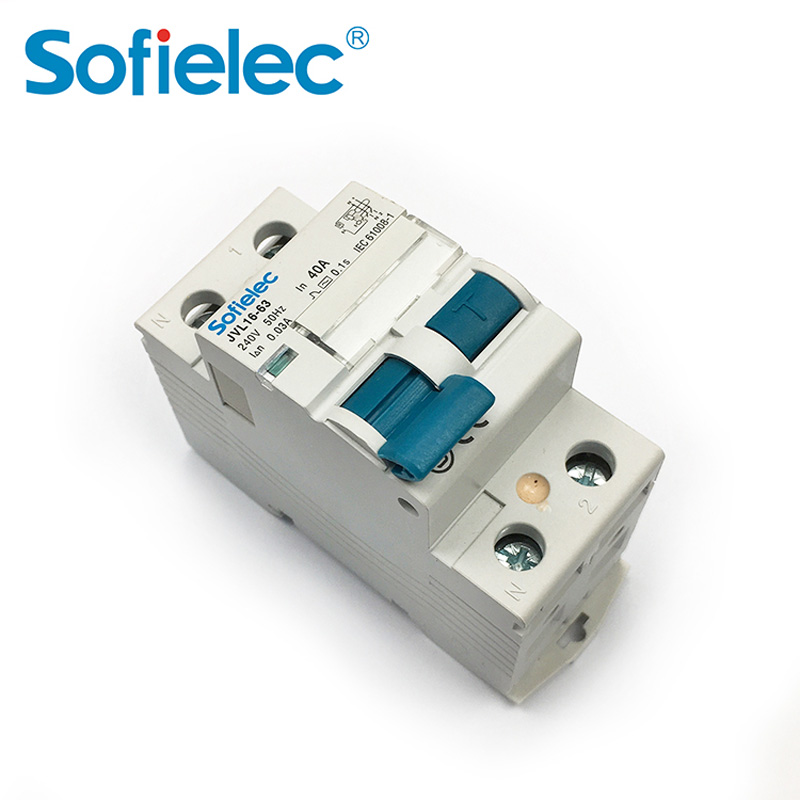

10kA JVL16-63 63A Rated current residual current rccb circuit breaker

Elegant appearance; cover and handle in arc shape make comfortable operation. Contact position indicating window

Transparent cover designed to carry label.

In case of overload to protected circuit, RCBO handle trips and stays at central position, which enables a quick solution to the faulty line. The handle cannot stay in such position when operated manually.

RCBO handle can be locked either at “ON” position or at“OFF” position to prevent unwanted operation of the product.

Provides protection against earth fault/leakage current, short-circuit and overload

High short-circuit capacity

Provides complementary protection against direct contact by human body.

Effectively protects electric equipment against insulating failure

Contact position indication

Provides protection against over-voltage

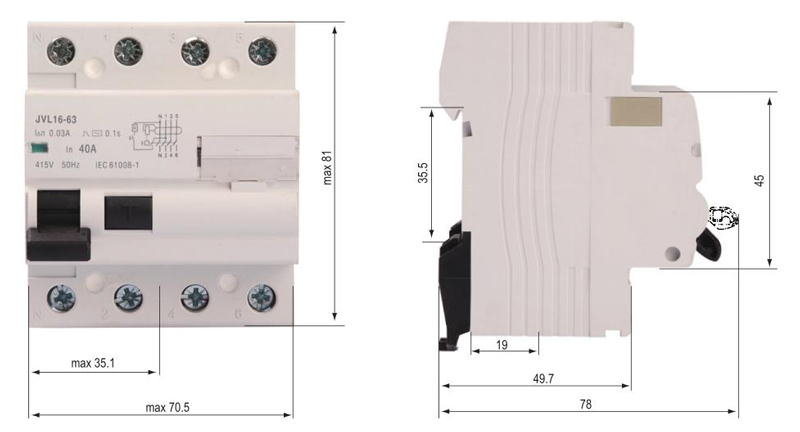

RCCB circuit breaker Overall & Installation Dimensions

Overall & Installation Dimensions

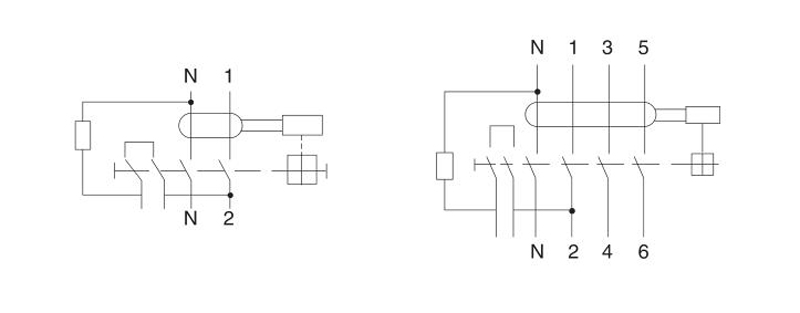

RCCB circuit breaker Wiring Diagram

Wiring Diagram

RCCB circuit breaker  Video
