| Categories | Isolator |
| Model | UKF4 |
| Place of Origin | Zhejiang, China (Mainland) |
| Model Number | UKF4 |
| Max. Voltage | 250V |
| Product name | weahterproof isolator switch |
| Rated voltage | 250VAC |
| Type | screw type |
| Brand Name | OEM/SOFIELEC |
| Max. Current | 63A |
| Rated current | 10A-63A |
| Certificate | TUV.CE CB |
| protection rate | IP66 |
| Rated frequency | 50/60 Hz |
| materical | PC |
| use scope | Isolator switch |
| weisite | www.sofielec.com |
Main Features
Mini Weatherproof Switches
mini weatherproof switch mini weatherproof switch mini weatherproof switch
Compact size of 86*86*81mm
Large rotary handle for easy operation even with gloved hands
Padlock facility with 8mm pole in OFF position
Ample conduit entries in the bases,2*25mm plain,2*20mm
mini weatherproof switch mini weatherproof switch mini weatherproof switch
and 1*20mm on each side of box as well as 1*25mm rear entry for back wiring
IP Protection :IP66
Technical Data
| Part No. | Rating(Amps) | Specification | Qty/Ctn(pcs) |
| UKF120 | 20 | 1pole,1 way | 50 |
| UKF135 | 35 | ||
| UKF220 | 15 | 2pole, 2 way | |
| UKF235 | 20 |
Description

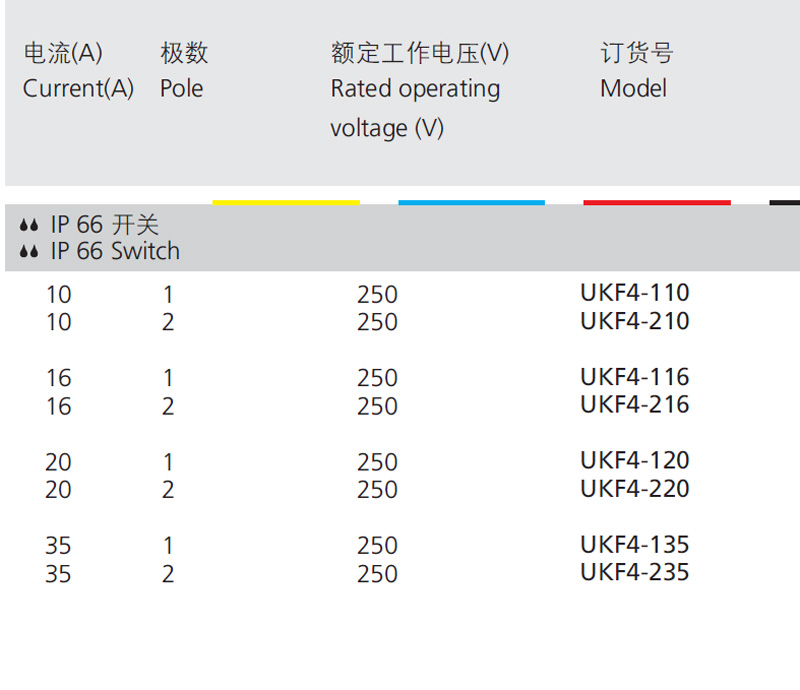

Parameter
| Current(A) | 10 | 16 | 20 | 35 | |||||
| Pole(P) | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 | |
| Dimension(mm) | a | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| b | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | |
| 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | |

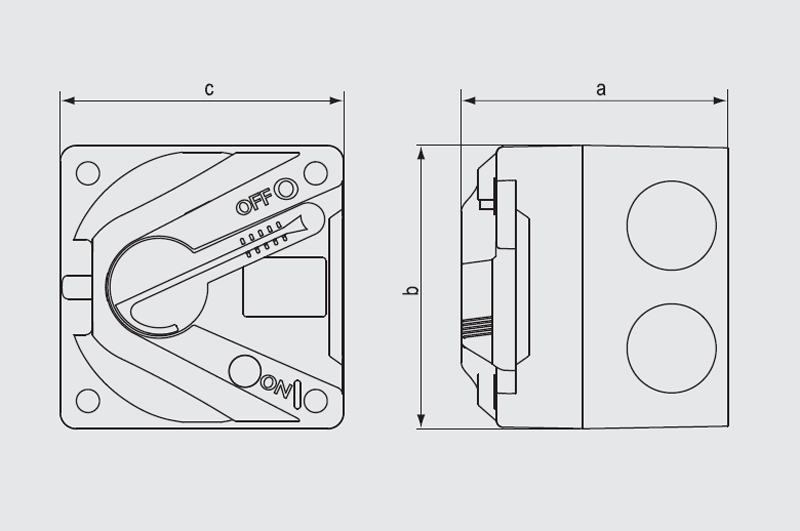

Dimension
