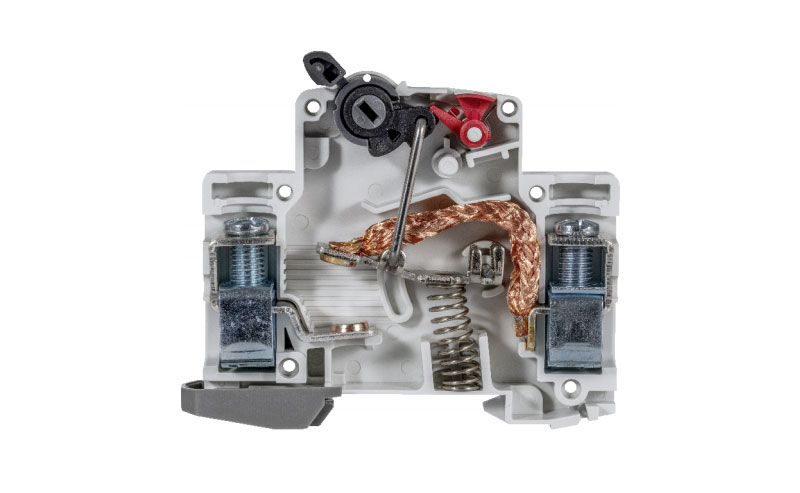

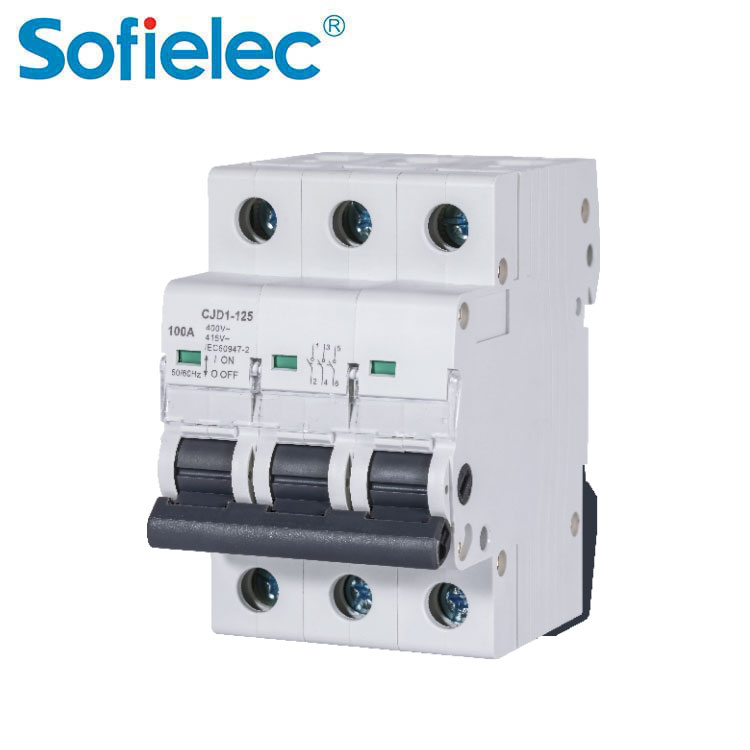

Construction and Feature
■Capable of switch electric circuit with load
■Adaptable to padlock device
■Contact position indication
■Capable of quickly releasing stored energy operation
■Highlighted of high making and breaking capacity
■High short-circuit current withstand capacity
■Used as main switch for household and similar installation
Technical Data
■Pole No.: 1,2,3,4
■Rated current(A): 63,80,100,125
■Rated voltage: 230/400V AC
■Rated frequency: 50/60Hz
■Rated short-circuit making capacity: 6kA
■Rated withstand current: 2kA within 1sec
■Electro-mechanical endurance: 10000 cycles
■Connection capacity: Rigid conductor 35mm2
■Connection terminal:
□Screw terminal
□Pillar terminal with clamp
■Installation:
□On symmetrical din rail 50mm
□Panel mounting
■Terminal Connection Height: H=19mm
Compliance
IEC60947-3

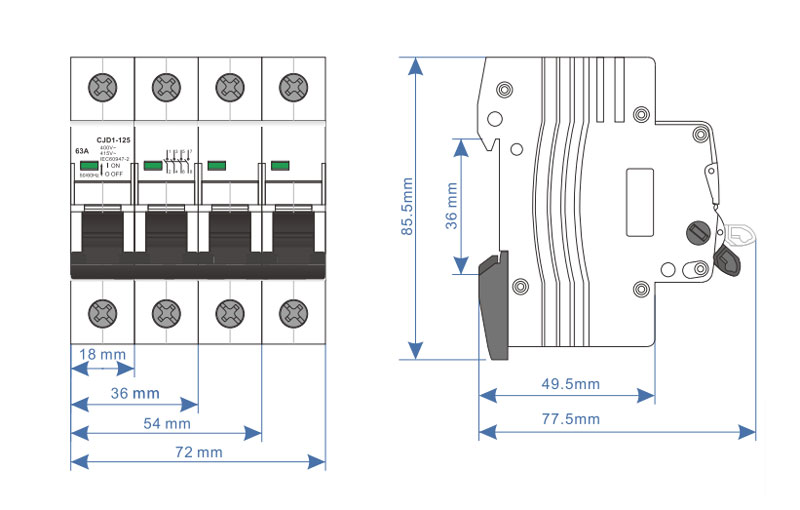

Dimensions: (mm)
