GN□-12 Series Isolating Switch

GN□-12 Series Isolating Switch
GN□-12 Series Isolating Switch

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

Structure and performance



The GN□-12 isolating switch has a novel structure and is a new isolating switch independently developed by the company. The moving and static contacts are installed on two horizontal insulators, and the moving contact is directly driven by the driving spindle to rotate to realize opening, closing and grounding, and has a small installation space. , The busbar is easy to connect, and the fracture is obvious. It is suitable for side-mounted high-voltage cabinets with compact installation height and space. It can be driven by the BET-type mechanism through the other arm without a mechanism, or it can be directly operated by its own operating mechanism, which can be operated at the opening position. Install grounding contacts to achieve protective grounding.





Technical Parameters



Model Specifications GN□-12/630 GN□-12/1250 GN□-12/1600
GN□-12D/630 GN□-12D/1250 GN□-12D/1600
Rated voltage (kV) 12
Rated current (A) 630 1250 1600
4s short-time withstand current (kA) 20 31.5 31.5
Rated peak withstand current (kA) 50 80 80
Rated insulation level Lightning impulse voltage (kV) Phase-to-phase, relative to ground 75, fracture 85
1min power frequency withstand voltage (kV) Phase, relative to 42, fracture 48

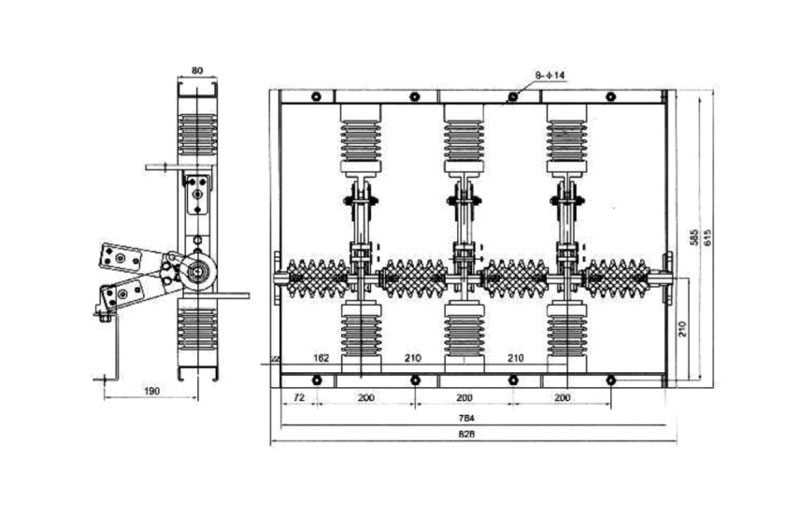

Installation Dimensions
