ZN63(VS1)-12 Series High Voltage Vacuum Circuit Breaker

Overview

ZN63(VS1)-12 series high-voltage vacuum circuit breaker is an indoor switchgear with three-phase AC 50Hz and rated voltage of 12kV. It can be used for control and protection of industrial and mining enterprises, power plants, substations, and electrical facilities, and is suitable for frequent place of operation. The VET operating mechanism is integrated with the circuit breaker body, and the design can be used as a fixed installation unit, or it can be equipped with a special propulsion mechanism to form a handcart unit. The main circuit part can use the integral solid-sealed pole to realize the miniaturization, high reliability and maintenance-free of the circuit breaker. It can be equipped with KYN28A-12 (GZS) and other mid-mounted handcart-type switch cabinets, and can also be equipped with XGN fixed type switchgear. Switchgear.

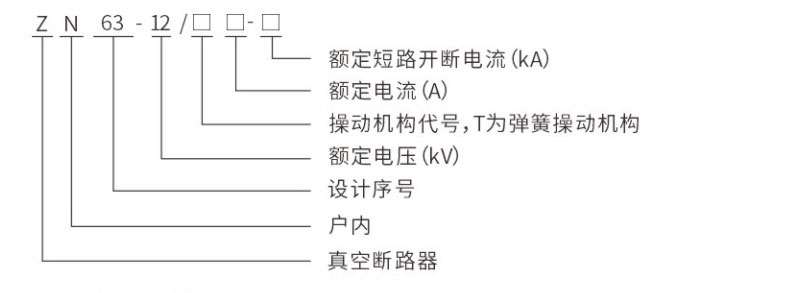

Model Meaning

Normal Use Environment

1. Ambient temperature: the ambient temperature is not greater than +40°C, not lower than -25°C;

2. Altitude: the altitude does not exceed 1000, and the plateau does not exceed 3000m;

3. Relative humidity: the daily average is not more than 95%. The monthly average is not more than 90%, the daily average of saturated vapor pressure is not more than 2.2×10~MPa, and the monthly average is not more than 1.8×10³MPa;

4. Earthquake intensity: no more than 8;

5. Use place: place without fire, explosion, serious pollution, chemical corrosion and violent vibration.

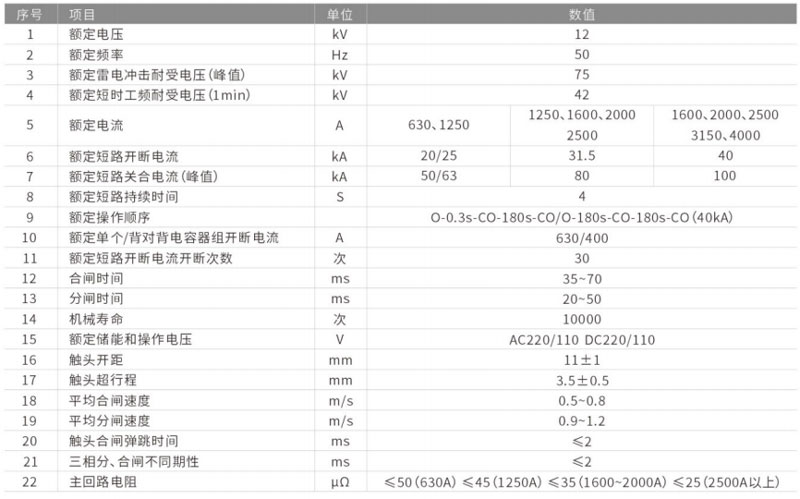

Technical Parameters

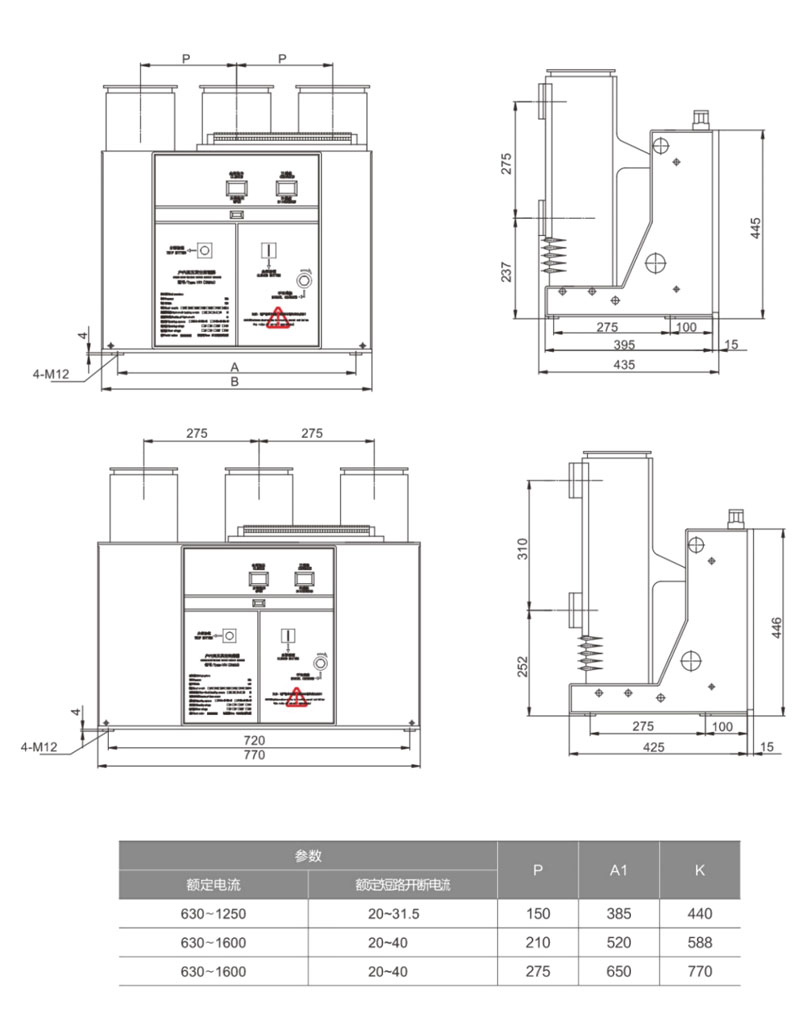

Installation Dimensions
