application

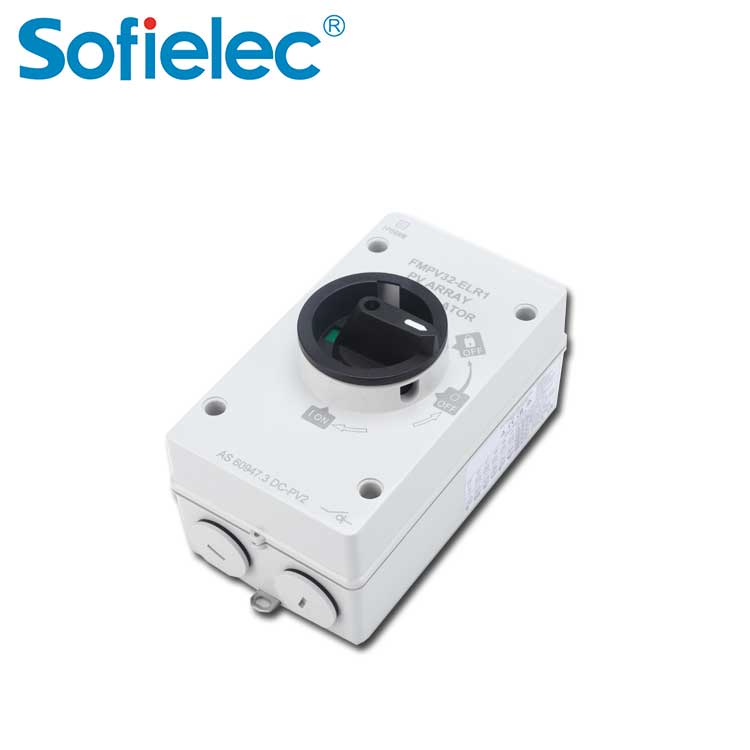

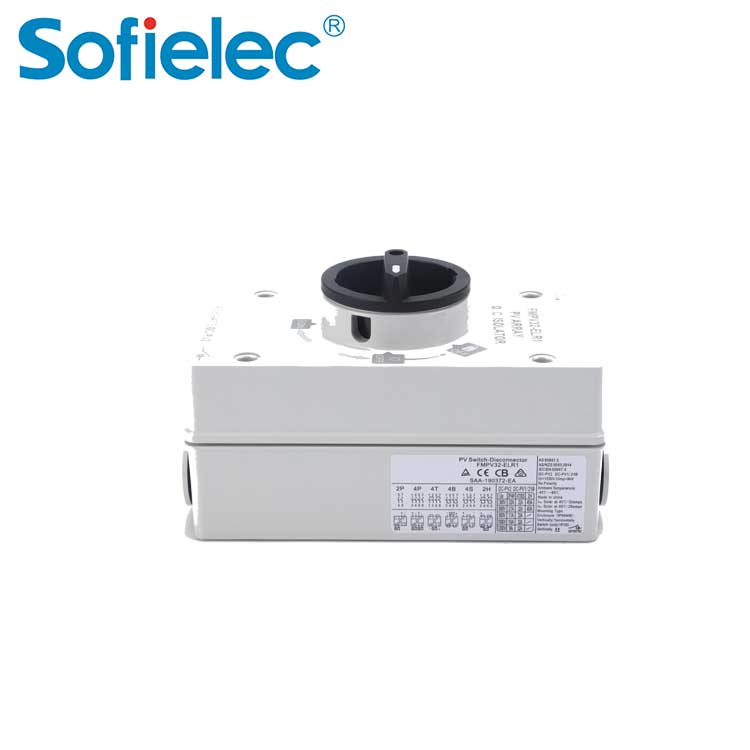

ELR 1 Series DC Isolator Switch in plastic enclosure is
applied to 1~20KW residential or commercial photovoltaic
system， placed between photo voltage modules and inverters
Arcing time is less than 8ms， that keeps solar system more safe.
To ensure its stability and long service life， our products are
made by components with optimum quality.Max voltage
isupto1200VDC.It holds a safe lead among similar products.
Feature
IP 66 rated enclosure， UV Resistant

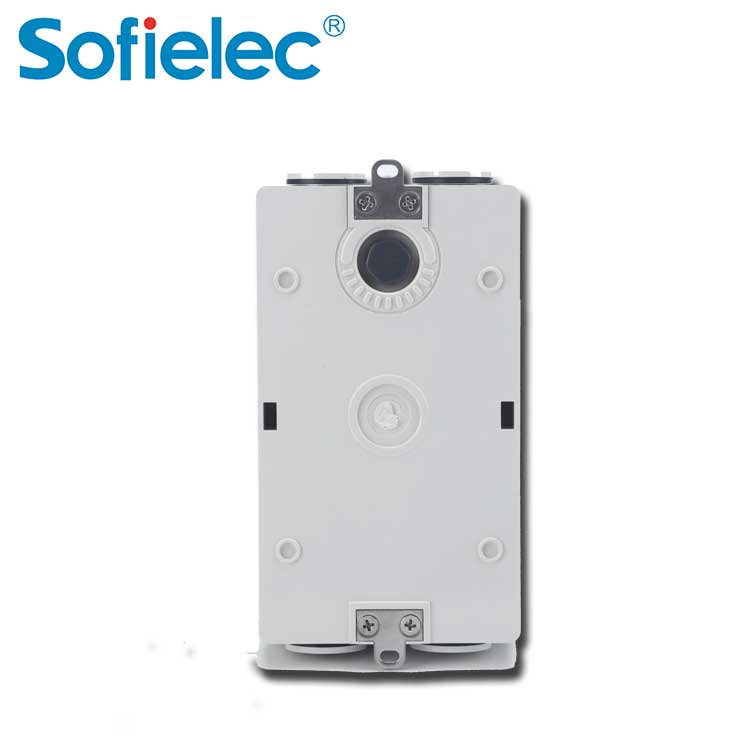

2x mounting tabs， 4xM 25 threaded holes

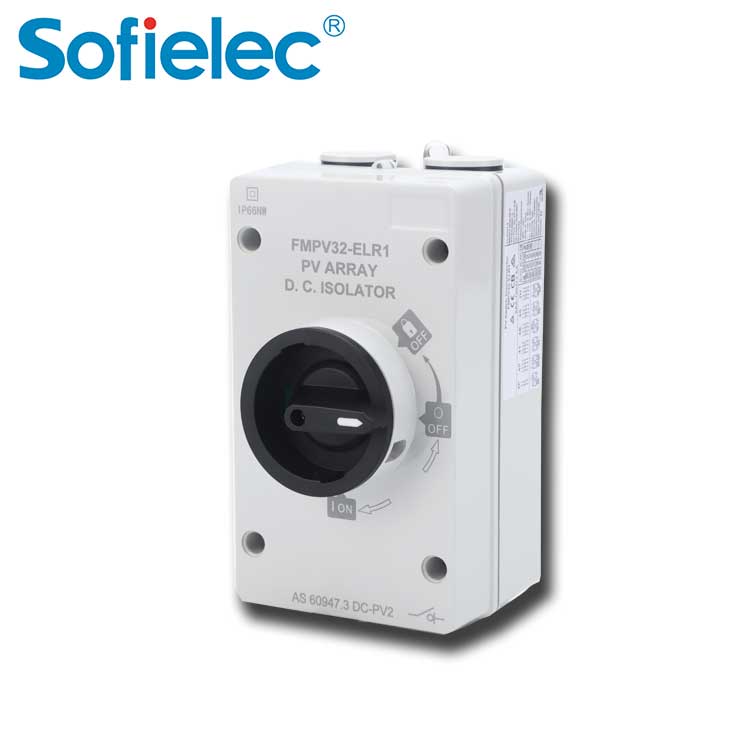

The handle can be padlocked in the"OFF"position
MC4plugs with adaptor or cable gland can be selected for
convenient connection and space saving
IP66Airvalvehelpsair flowing and reducing temperature

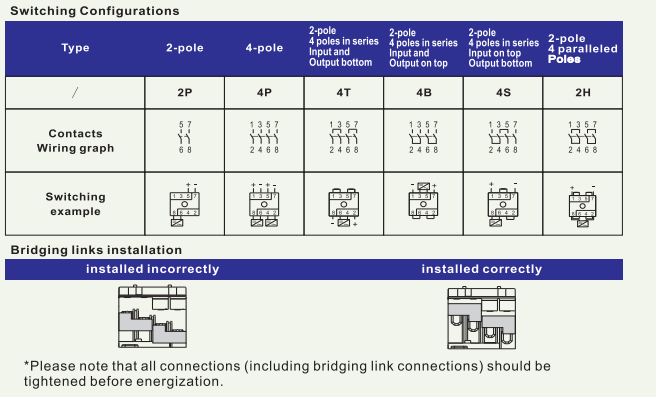

2Pole， 4Poles are viable(Single l Double String)
Standard：IEC60947-3，AS60947.3
DC-PV2，DC-PV1，DC-21B
16A， 25A， 32A， 1200VDC
| Type | F MPV 16-ELR 1， F MPV 25-ELR 1， F MPV 32-ELR 1 |
| Function | Isolator， Control |
| Standard | IEC 60947-3， AS 60947.3 |
| Utilization category | DC-PV2/DC-PV1/DC-21B |
| Pole | 4P |
| Rated frequency | DC |
|

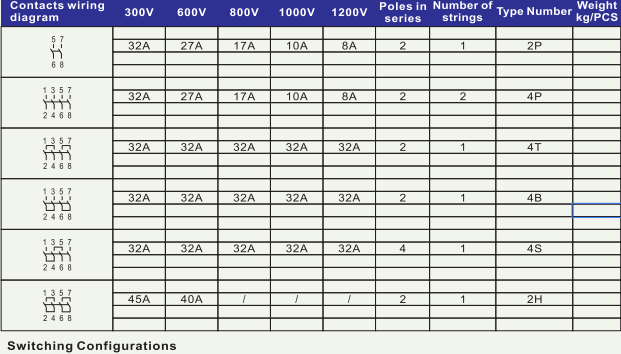

Rated operational voltage(Ue) |
300V，600V，800V，1000V，1200V |
| Overvoltage category | II |
| Suitability for isolation | Yes |
| Pollution degree | 3 |
| ingress protection | ip66 |
|
Rated impulse d withstand voltage(U imp) |
8.0KV |
|
Rated short-time withstand current(/cw) |
1KA |
|
Mechanica |
18000 |
|
Electrical |
2000 |
|
St orge temperature |
-40℃~+85℃ |
