Application

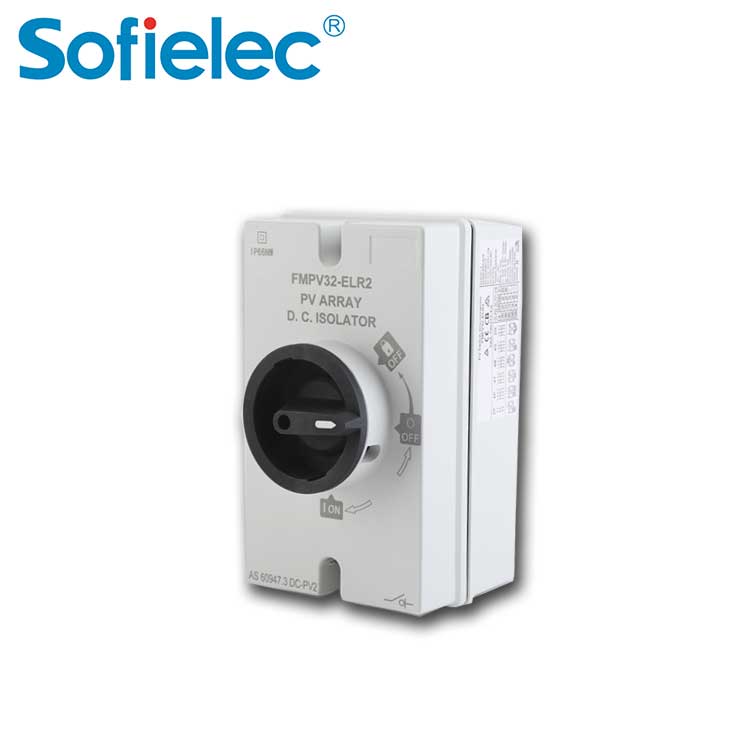

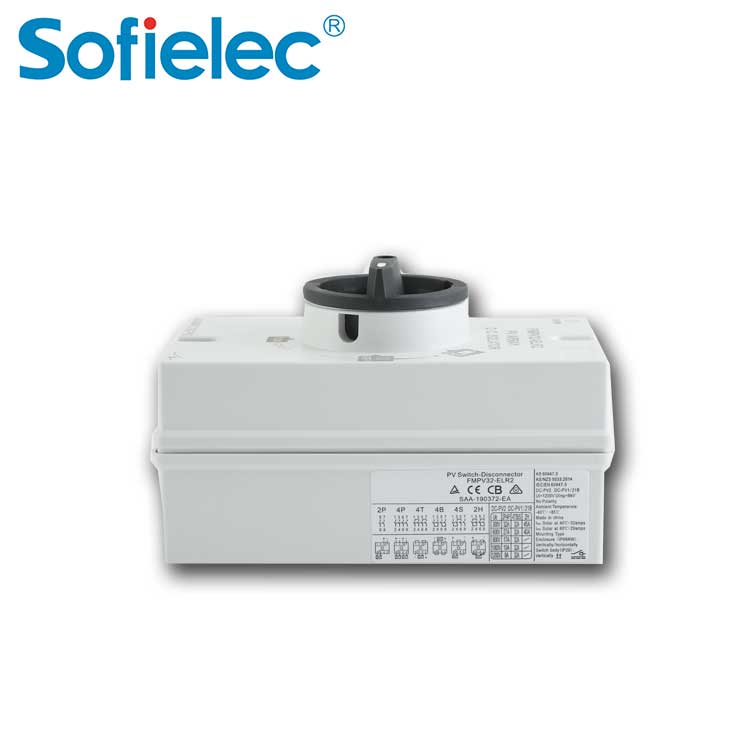

PM 2 Series DC Isolator Switch is applied to 1~20KW,residential or commercial photovoltaic system， placed between,photo voltage modules and inverters.Arcing time is less than 8ms， that keeps solar system more safe.To ensure its stability and long service life， our products are made by components .with optimum quality.Max voltage isupto1200VDC.It holds a safe lead among similar products.
Feature
IP 65 Protection Level
The handle can be padlocked in the"OFF"position

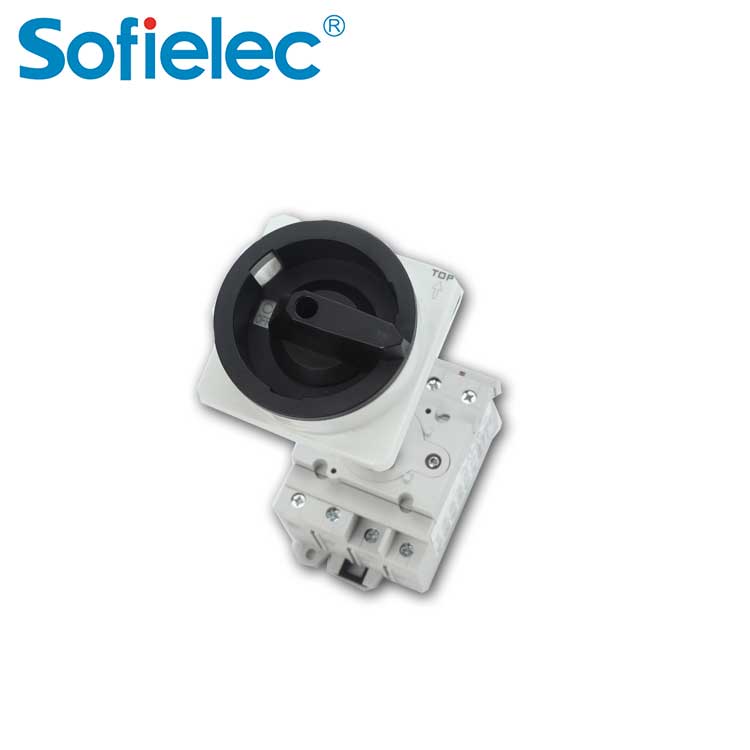

Base mounted in the din rail， and handle mounted outside
the door through the shaft
The length of shaft can be customized by customer

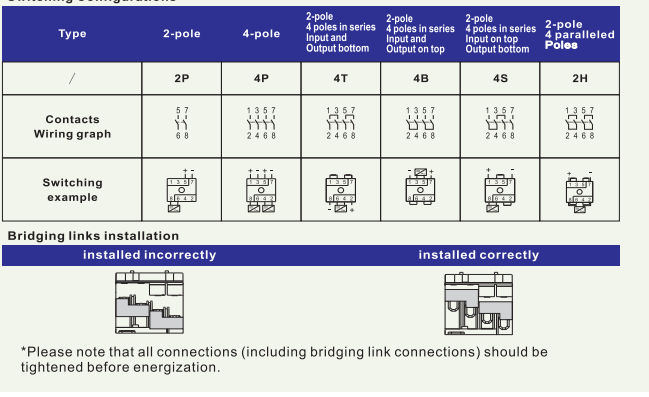

2Pole， 4Pole are viable(Single 1 Double String
Standard：IEC60947-3，AS60947.3
DC-PV2，DC-PV1，DC-21B
16A， 25A， 32A， 1200VDC

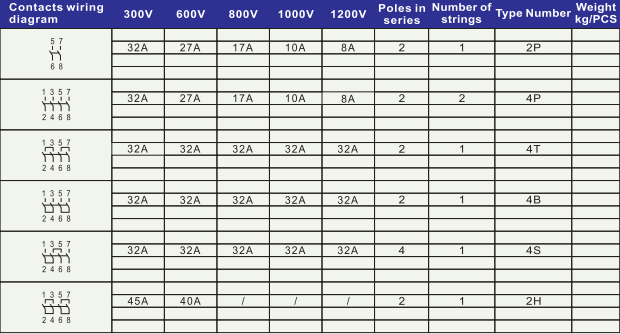

| Type | F MPV 16-PM 2， F MPV 25-PM 2， F MPV 32-PM 2 |
| Function | Isolator， Control |
| Standard | IEC 60947-3， AS 60947.3 |
| Utilization category | DC-PV2/DC-PV1/DC-21B |
| Pole | 4P |
| Rated frequency | DC |
| Rated operational voltage(Ue) | 300V，600V，800V，1000V，1200V |
| Rated short-time withstand current(/cw) | 1kA，1s |
