Technical Parameter
1. Available in both 2&4 pole Complies
2. With AS & CEC regulations
3. Enclosed in a IP66 rated weatherproof enclosure
4. Lockable switch
5. Rated at 500-100ov DC operational voltage
Electrical Characteristics
| Ue | 500V | 600V | 800V | 1000V |
| 2P | 32A | 32A | 23A | 13A |
| 2+2P | 58A | 50A | 32A | 20A |
| 4P (2P+2P) | 32A | 32A | 23A | 13A |
| 4P (4P-S 4P-T 4P-B) | 32A | 32A | 32A | 32A |

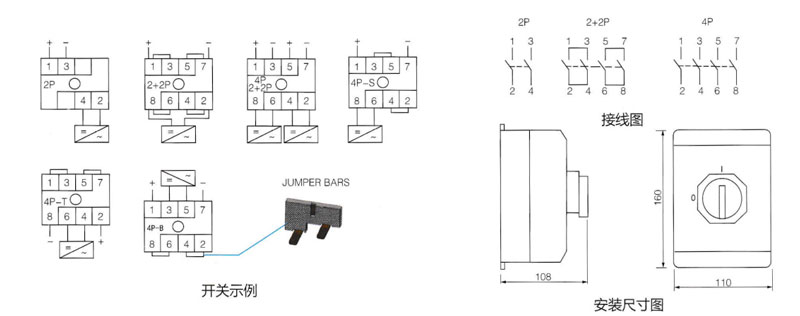

Outline Dimensions
