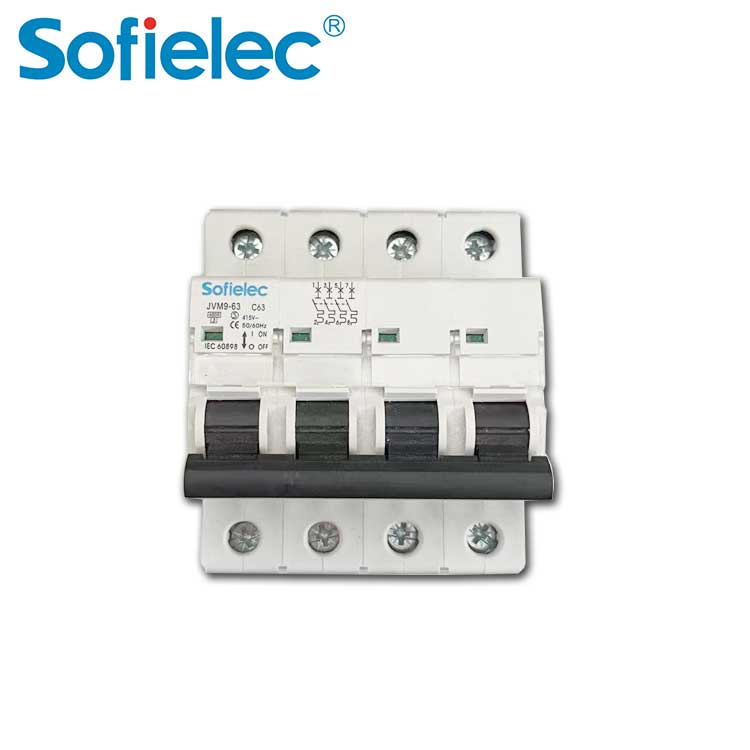

63 AMP 4 Pole MCB 6KA Miniature Circuit Breaker JVM9-63

63 AMP 4 Pole MCB
63 AMP 4 Pole MCB
63A MCB 4 Pole
64 AMP MCB
4 Pole MCB

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

Categories Economic 4.5KA, 6kA Regular Series Circuit Breaker
Pole No 1, 1P+N, 2, 3, 3P+N, 4
Rated voltage AC 230/400V
Rated current (A) 1,2,3,4,6, 10, 13, 16, 20, 25, 32, 40, 50, 63
Tripping curve B,C,D
Energy limiting class 3
Rated frequency 50/60Hz
Rated impulse wihstand voltage 6.2kV
High sho-ciruit breaking capacity (lcn) 10KA
Rated serie sh-ircut breaking cpait(cs) 7.5KA
Eletr-mechanical endurance 20000

63 AMP 4 Pole MCB Technical Data



● Pole No.:  1P,2P,3P,4P

● Rated voltage: AC 230/400V

● Rated Current: 1,2,3,4,6,10,13,16,20,25,32,40,50,63A

● Tripping curve: B, C, D

● High short-circuit breaking capacity: 6kA

● Rated service short-circuit capacity(lcs): 6kA

● Rated frequency: 50/60Hz

● Electro-mechanical endurance: 10000

● Connection terminal: Pillar terminal with clamp

● Connection capacity: Rigid conductor up to 10mm²

● Fastening torque: 1.2Nm

● Installation: On symmetrical DIN rail 35.5mm Panel mounting

● Terminal Connection Height: H=21 mm

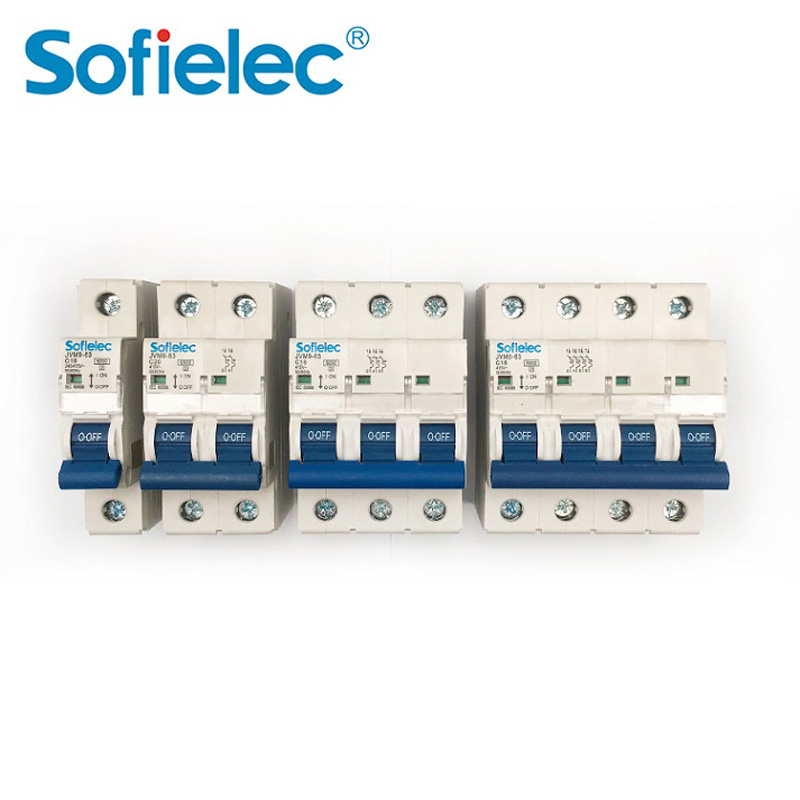

  63 AMP 4 Pole MCB Construction and Feature

MCB 6KA4 Pole MCB price

JVM9-63 mcb Protection against overload and short circuit,6KA high short circuit , beautiful appearance with transparent window. The rated working voltage 24/415V. Completely rated current from 1 amp to 63 amp. Widely use for houses,offices,commercial complex,motor system(D curve) and industrial installation-for switching ,control,protection and regulation of electrical circuits. Also in switchgear panels,railway and marine application.

63 AMP 4 Pole MCB

1. Fine and unique appearance
2. Short-circuit and overload dual-protection performance
3. High-breaking capacity (6KA) that is leading among the world similar products
4. Unique label, transparent window
5. Convenient and reliable installation mode

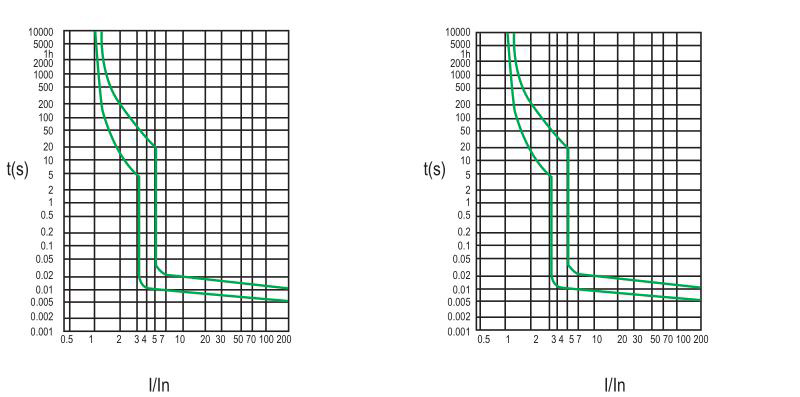

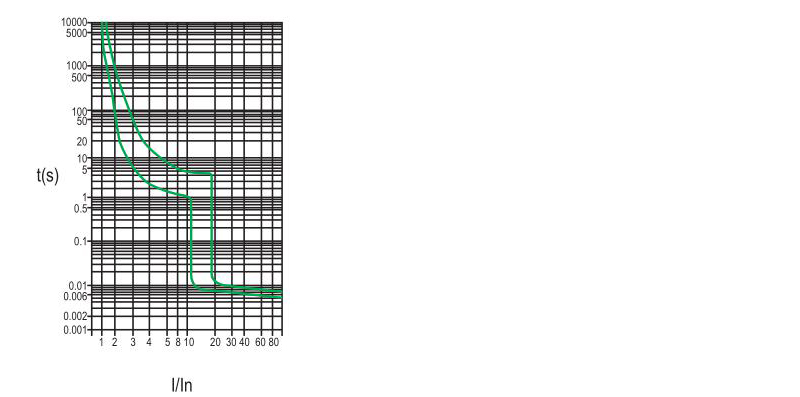

63 AMP 4 Pole MCB Characteristic Curve

Characteristic CurveCharacteristic Curve

63 AMP 4 Pole MCB Video
