MCB 1P+N Miniature Circuit Breaker CJM6-32

MCB 1P+N
MCB 1P+N
Miniature Circuit Breaker

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

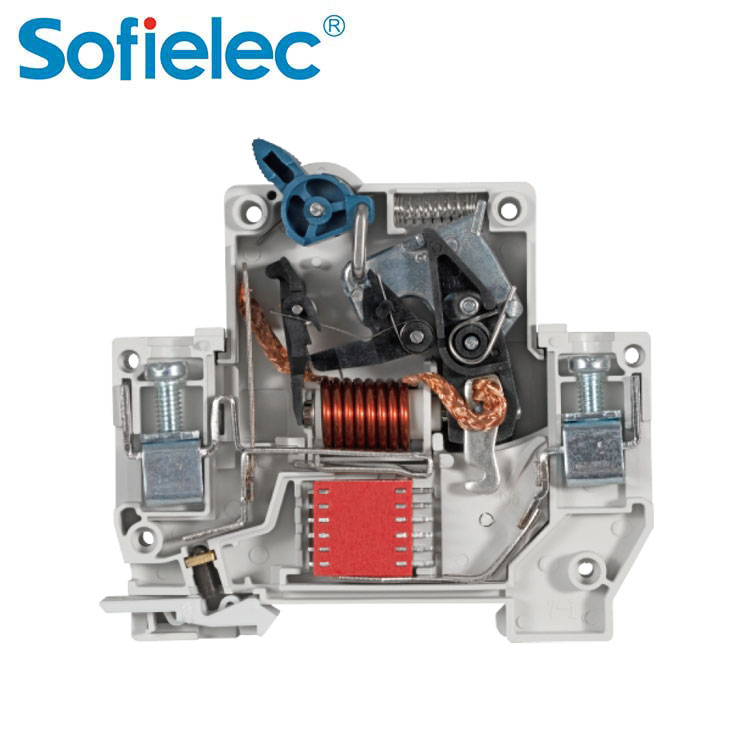

MCB 1P+N Construction and Feature

Protection against both overload and short circuits.

Integrated with switched phase and neutral pole.

Neutral pole provides no protection against overload and short circuits.

Easy mounting onto 35mm DIN rail.





Miniature Circuit Breaker Technical Data

■Pole No.: 1P+N
■Rated voltage: AC 230V
■Rated Current: 6, 10, 16, 20, 25, 32
■Tripping curve: B, C, D
■High short-circuit breaking capacity: 4.5kA
■Rated service short-circuit capacity(Ics): 4.5kA
■Rated frequency: 50/60Hz
■Electro-mechanical endurance: 4000
■Connection terminal: Pillar terminal with clamp
■Connection capacity: Rigid conductor up to 10mm
■Fastening torque: 1.2Nm
■Installation:
□On symmetrical DIN rail 35.5mm
□Panel mounting
■Terminal Connection Height: H=21mm





MCB 1P+N Compliance

IEC60898-1
EN60898-1

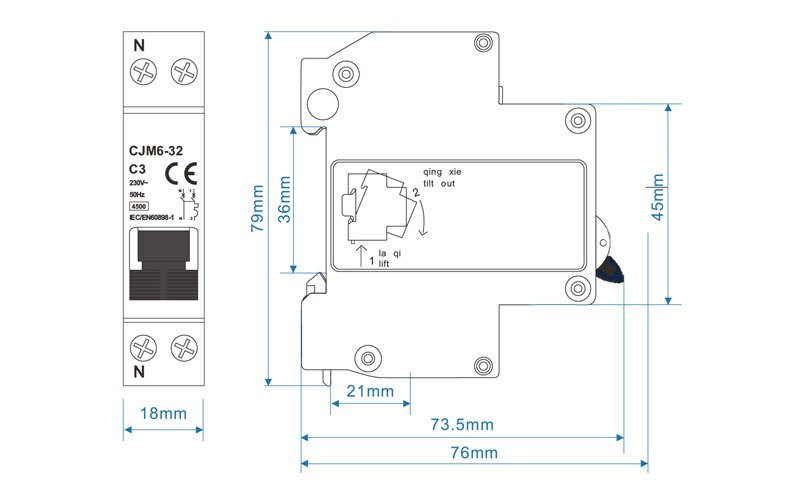

Overall & Installation MCB Dimensions

MCB Dimensions

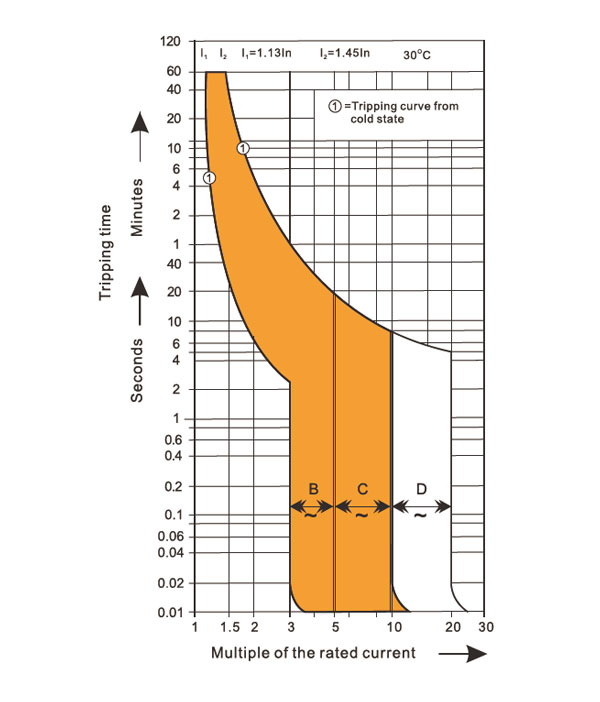

The tripping characteristic curves
