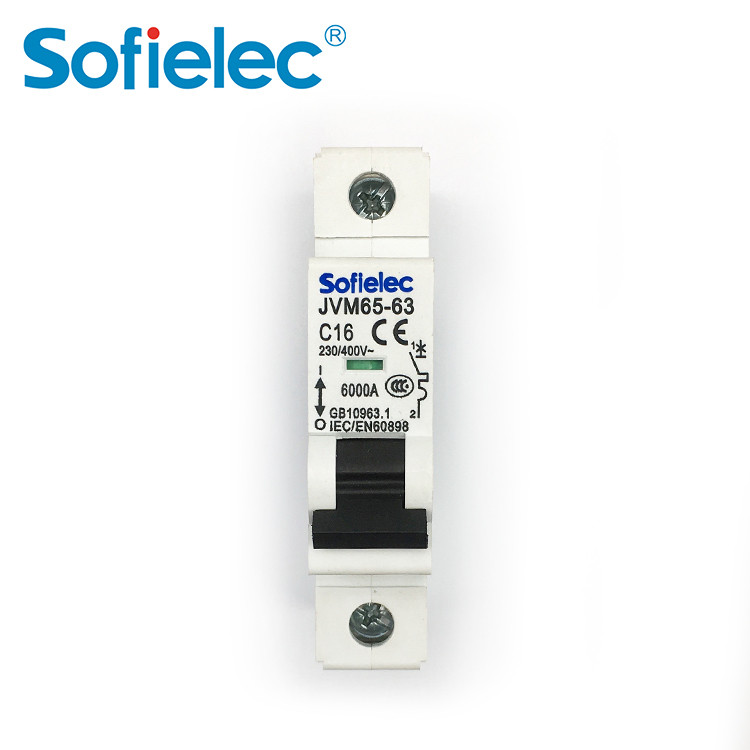

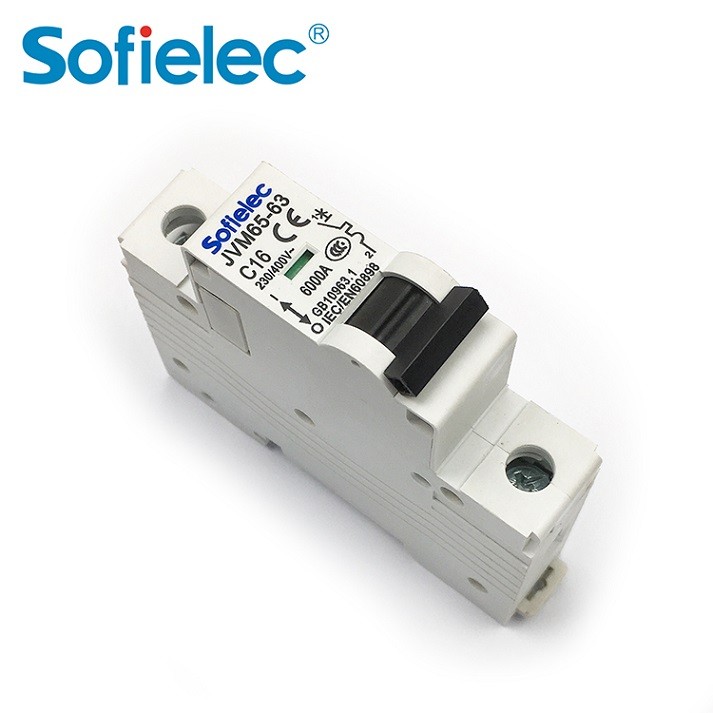

6kA JVM65-63 best quantity C25 types of miniature circuit breaker

6kA JVM65-63 best quantity C25 types of miniature circuit breaker

6kA JVM65-63 best quantity C25 types of miniature circuit breaker
6kA JVM65-63 best quantity C25 types of miniature circuit breaker6kA JVM65-63 best quantity C25 types of miniature circuit breaker6kA JVM65-63 best quantity C25 types of miniature circuit breaker6kA JVM65-63 best quantity C25 types of miniature circuit breaker6kA JVM65-63 best quantity C25 types of miniature circuit breaker
CategoriesEconomic 4.5KA, 6kA Regular Series Circuit Breaker
AlbumView larger image
Pole No1P. 1P+N. 2P. 3P. 3P+N. 4P
Rated current(A)1. 2. 3.4. 6. 10.16. 20. 25. 32. 40. 50. 63
Rated voltageAC 230. 230/400. 400
Rated Frequency50/60Hz
Tripping curveB. C. D
Rated short-circuit capacity (Icn)6000A
Mechanical life20000 times
Contact positionindication window
Degree of protectionIP20
Connection terminalPillar terminal with clamp
Update Time2019-08-25
Detail Information
Technical Data

Pole No.: 1, 1P+N, 2, 3, 3P+N, 4P

Rated current(A):1、2、3、4、6、1016、20、25、32405063

Rated voltage AC 230, 230/400. 400

Rated Frequency 50/60HZ

Tripping curve B, C. D

Rated short-circuit capacity (Icn) :6000A

Mechanical life 20000 times

Contact position indication window

Degree of protection IP20

Connection terminahPillar terminal with clamp

Connection conductor up to and including 16mm

Terminal Connection Height:H1=19.5mm,H2=21.5mm

lnstallation:DIN-rail mounting

Overall installation Dimensions

Construction and Feature

Fine and unique appearance,advanced design

Short-circuit and overload dual-protection performance

High-breaking capacity (6KA) that is leading among the world similar products

Mechanical life:4000 times

Convenient and reliable installation

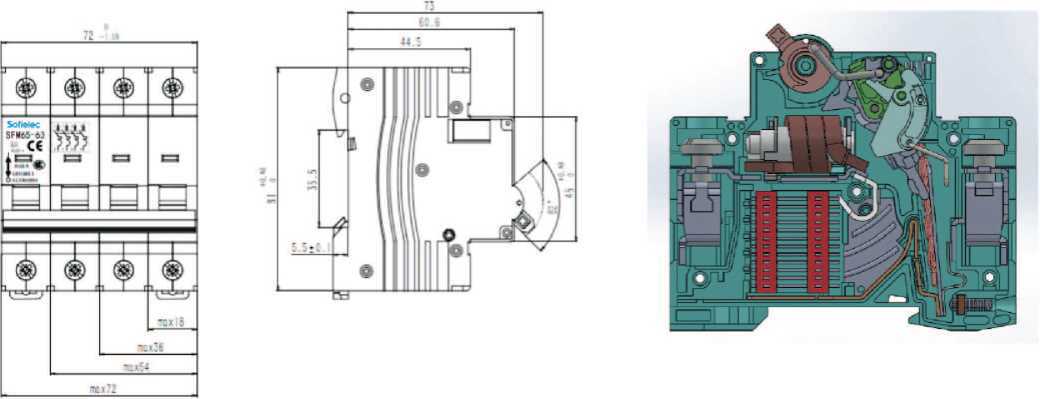

Overall & Installation Dimensions
Characteristic Curve
