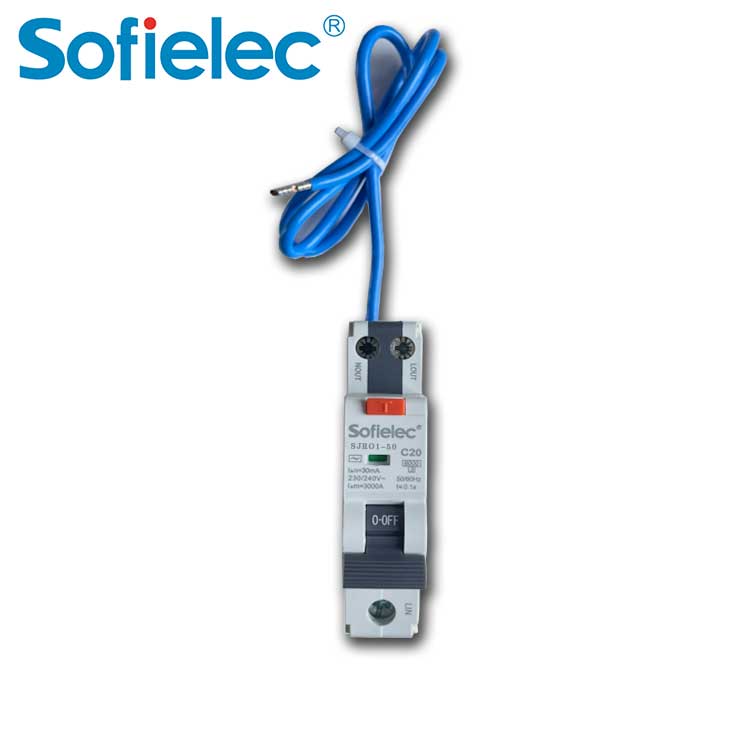

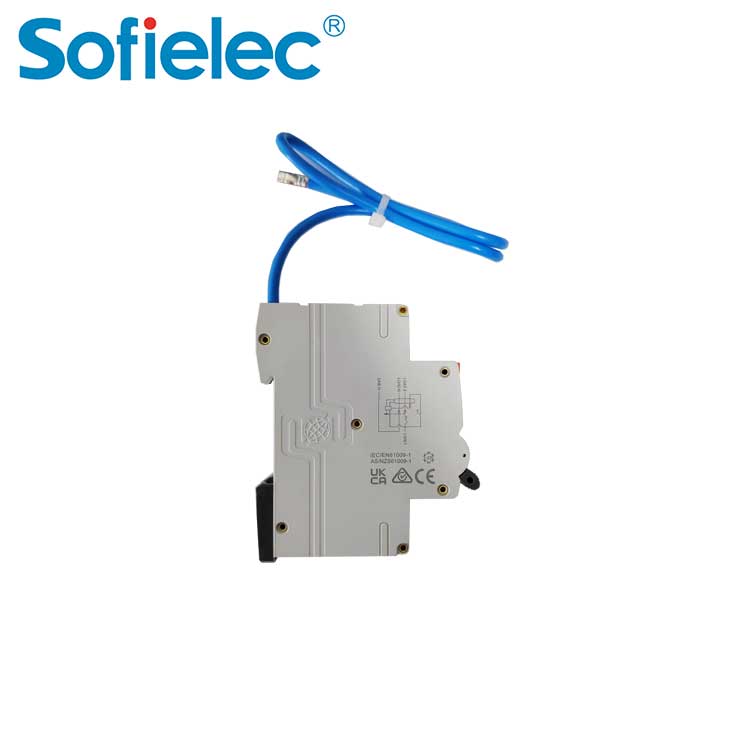

SJRO1-50 has overload protection, short circuit protection, and leakage protection functions, which are more comprehensive. Mainly used in industrial factories, commercial buildings, electronic and electrical products.
Specification
| Ratedcurrent | 6,10,16,20,25,32,40,50A |
| Rated voltage | 240V（230V） |
| Rated frequency | 50/60hz |
| Number of pole | 1p+n |
| Module size | 18mm |
| Curve type | B and C Curve |
| Breaking capacity | 6000A |
| Electro-mechanical endurance | 4000 cycles |
Wiring Diagram
