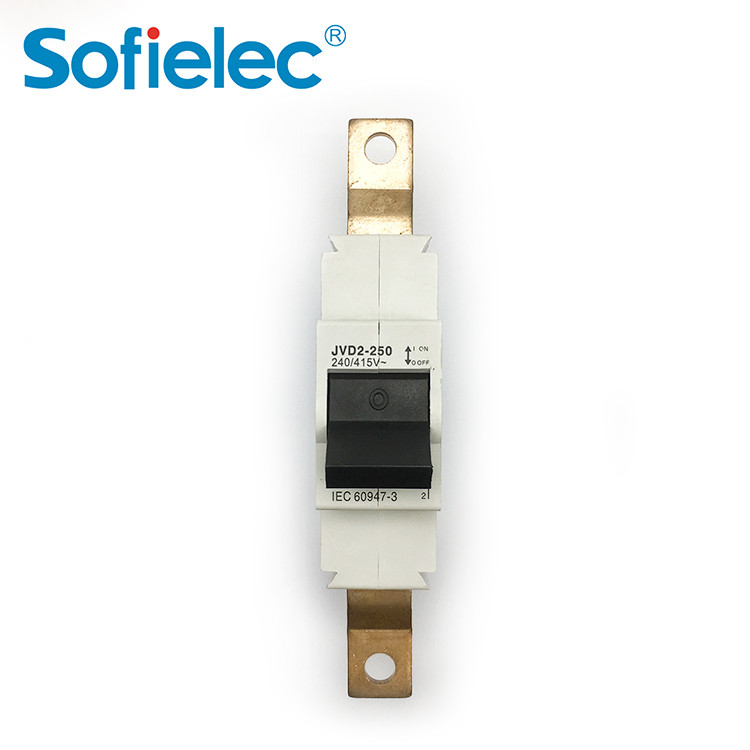

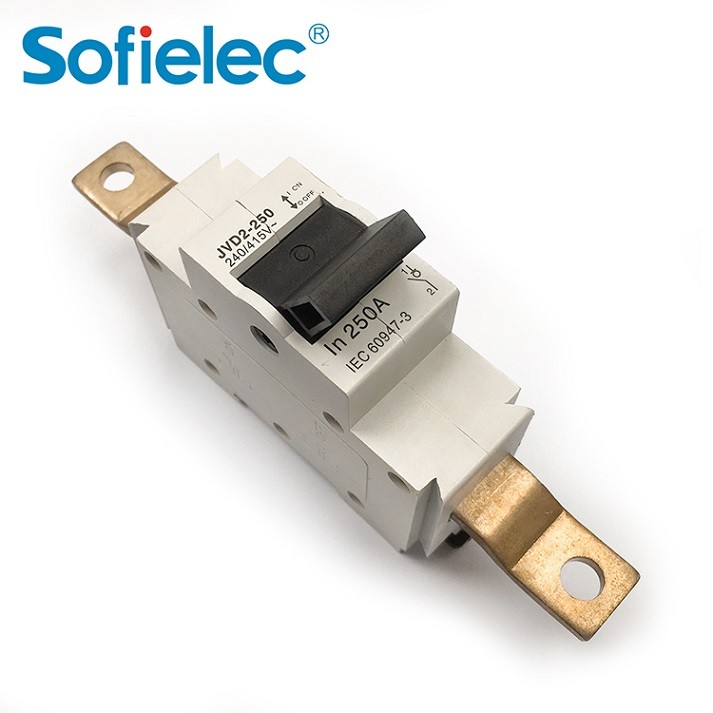

JVD2-250 3P 250A main switch isolator circuit breaker with terminal shields & phase separator, AU hot selling

JVD2-250 3P 250A main switch isolator circuit breaker with terminal shields & phase separator, AU hot selling

JVD2-250 3P 250A main switch isolator circuit breaker with terminal shields & phase separator, AU hot selling
JVD2-250 3P 250A main switch isolator circuit breaker with terminal shields & phase separator, AU hot sellingJVD2-250 3P 250A main switch isolator circuit breaker with terminal shields & phase separator, AU hot sellingJVD2-250 3P 250A main switch isolator circuit breaker with terminal shields & phase separator, AU hot sellingJVD2-250 3P 250A main switch isolator circuit breaker with terminal shields & phase separator, AU hot sellingJVD2-250 3P 250A main switch isolator circuit breaker with terminal shields & phase separator, AU hot selling
CategoriesEconomic 4.5KA, 6kA Regular Series Circuit Breaker
AlbumView larger image
Pole No1,2,3, 4
Rated current(A)125, 160, 250
Rated voltageAC 230/400V
Rated frequency50/60Hz
Rated short-circuit making capacity3kA
Rated withstand current3kA within 1sec
Electro-mechanical endurance10000 cycles
Connection capacityRigid conductor 50mm² and up
Connection terminalExtensional busbar
Terminal Connection HeightH=22mm
Update Time2019-09-19
Detail Information
Technical Data

Pole No.: 1, 2, 3, 4

Rated current(A): 125, 160, 250

Rated voltage: AC 230/400V

Rated frequency: 50/60Hz

Rated short-circuit making capacity: 3kA

Rated withstand current: 1.8kA within 1sec

Electro-mechanical endurance: 10000 cycles

Connection capacity: Rigid conductor 50mm 2 and up
Connection terminal: Extensional busbar

Installation:On symmetrical din rail 35.5mm

Panel mounting

Terminal Connection Height: H=22mm

Construction and Feature





Capable of switch electric circuit with load

Provide function of isolation

Used as main switch for household and similar installation

Overall & Installation Dimensions

Wiring Diagram
