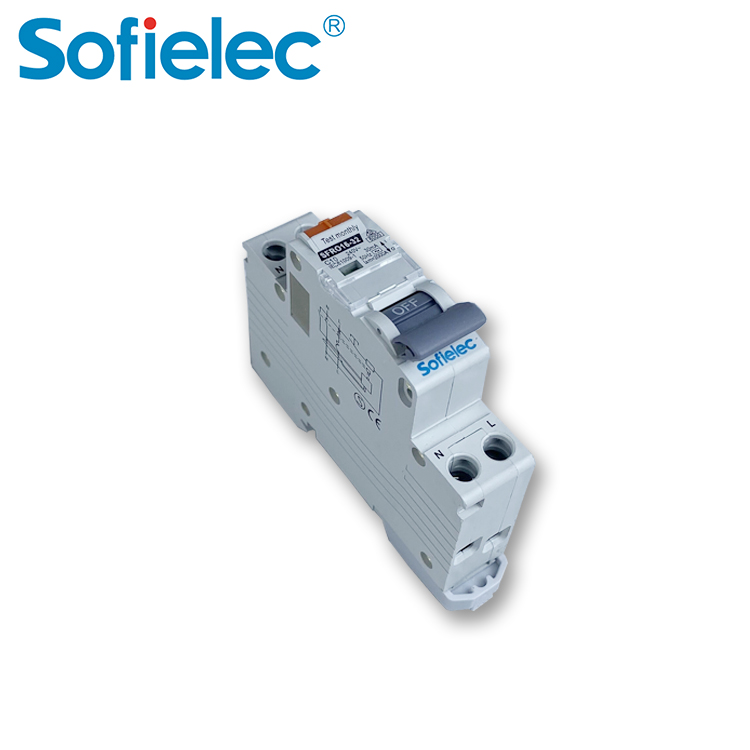

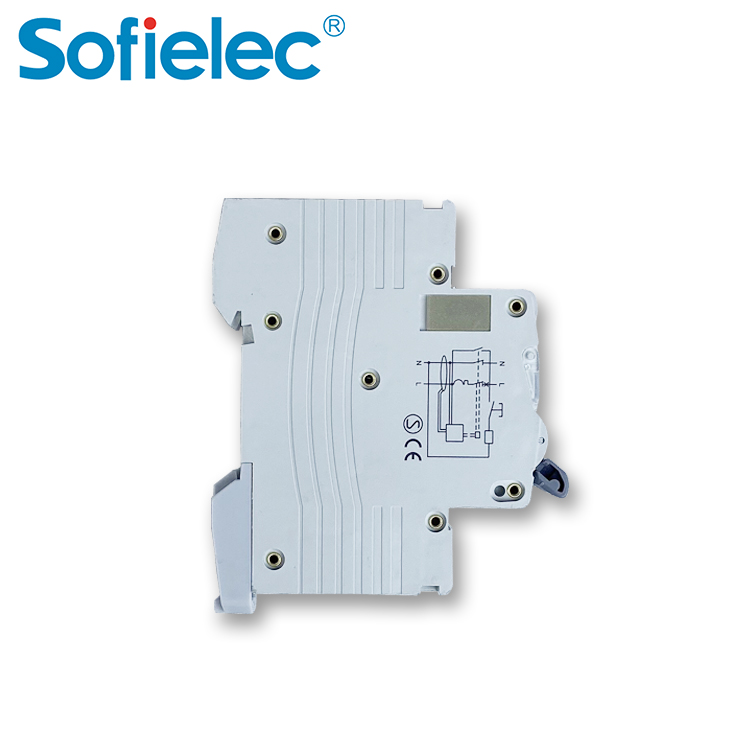

Categories | Superior 10kA 16 Series Circuit Breaker |
esidual curet chaensics | AC,A |
Pole No | 1P+N |
Tripping curve | B,C |
Rated shot-ircuit breaking capacity | 6kA |
Rated current (A) | 6, 10, 16, 20, 25, 32 |
Rated voltage | 240V |
Rated frequency | 50Hz |
Rated residual operating current(A) | 0.03 |
Tripping duration | instantaneous≤0.1s |
Electro-mechanical endurance | 4000 cycles |
Technical Data

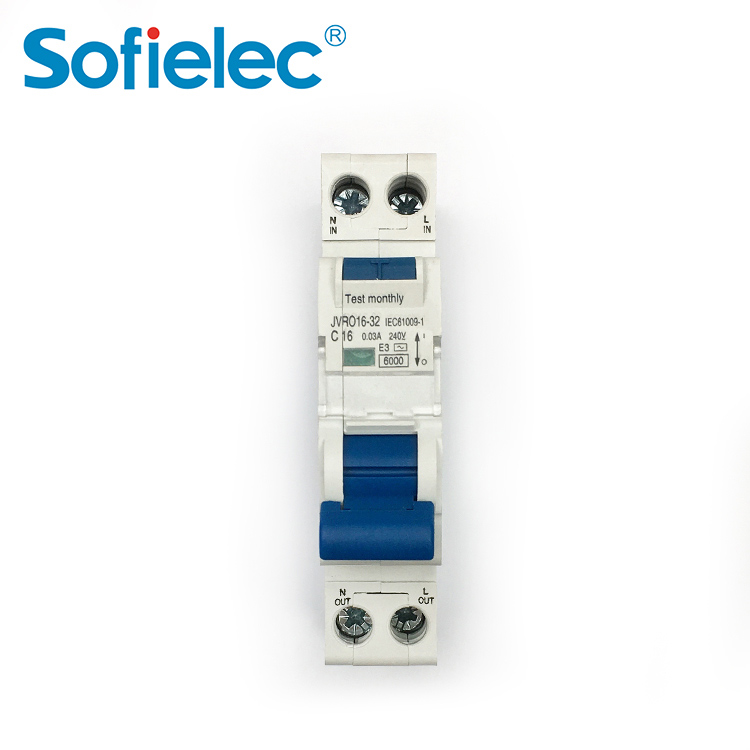

![single phase electric mini 30ma RCBO circuit breaker](/upload/1c/202107/jvro16-32-6ka-saa-approved-specially-australian-market-single-phase-electric-mini-30ma-rcbo-circuit-breaker-4.jpg)
l Residual current characteristics: AC, A |
l Pole No.: 1P+N Tripping curve: B, C |
l Rated short-circuit breaking capacity: 6kA |
l Rated current (A): 6, 10, 16, 20, 25, 32 |
l Rated voltage: 240V |
l Rated frequency: 50Hz |
l Rated residual operating current(A): 0.03 |
l Tripping duration: instantaneous≤0.1s |
l Electro-mechanical endurance: 4000 cycles |
l Diameter of screw d(mm): M4 |
l Degree of protection: IP20 |
l Fastening torque: 1.2N.m |
l On symmetrical DIN rail 35mm |
l Terminal Connection Height: H1= 9mm H2=22mm |
Construction and Feature

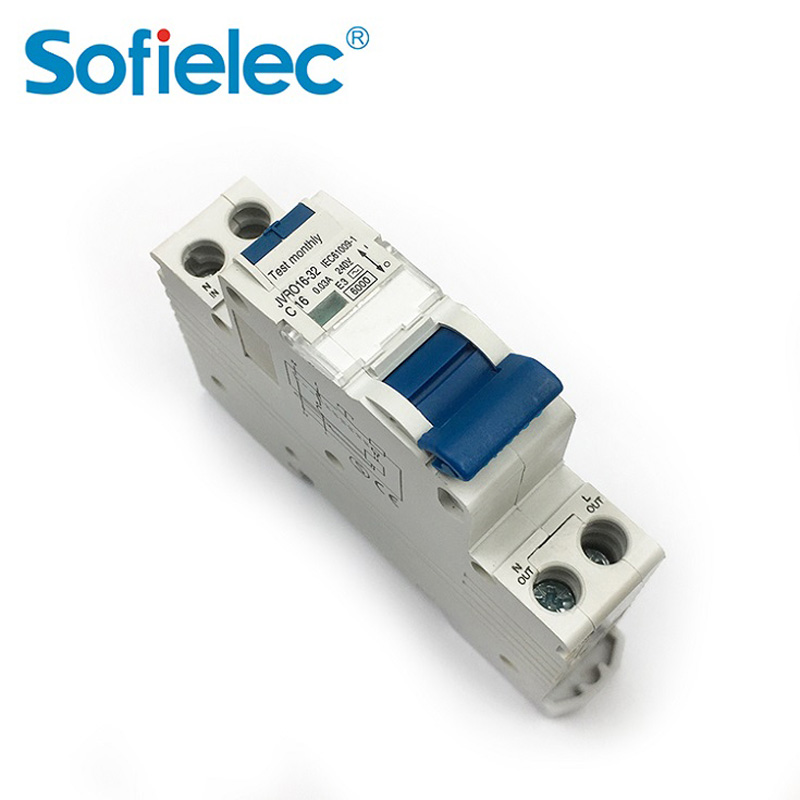

![single phase electric mini 30ma RCBO circuit breaker](/upload/1c/202107/jvro16-32-6ka-saa-approved-specially-australian-market-single-phase-electric-mini-30ma-rcbo-circuit-breaker-5.jpg)
Operating machanism adopt double contact with DPN form, N pole opening first, then breaking.
Leakage protecion adopt electronic type integrated circuit, Contact ON/OFF state display.
Trigger has middle-position function and a clamshell to put tags in and characteristic
stripes on both sides.
Provides protection against earth fault/leakage current, short-circuit, overload, and
function of isolation.

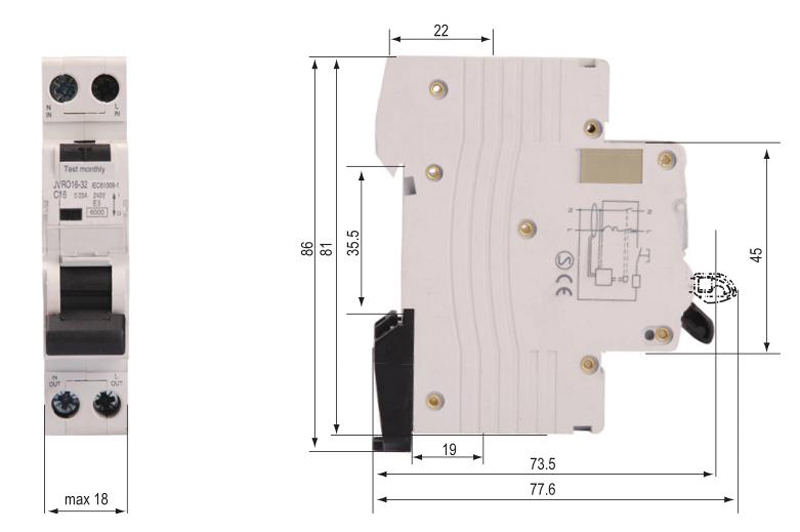

Overall & Installation Dimensions
![Overall & Installation Dimensions](/upload/1c/202107/jvro16-32-6ka-saa-approved-specially-australian-market-single-phase-electric-mini-30ma-rcbo-circuit-breaker-6.jpg)

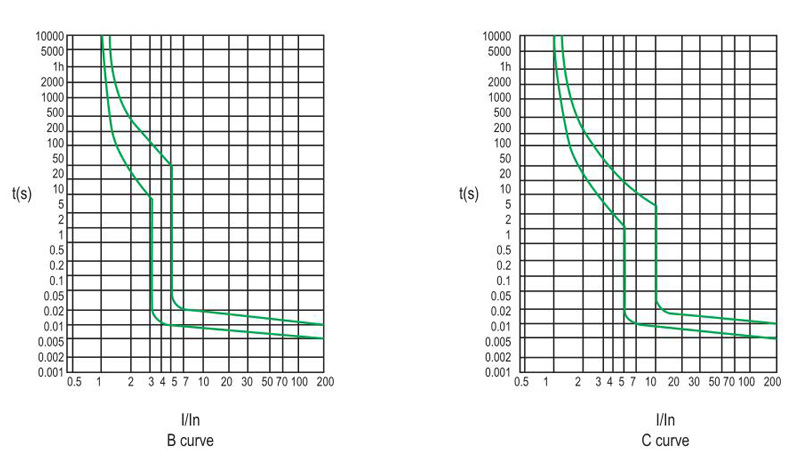

Characteristic Curve
![Characteristic Curve](/upload/1c/202107/jvro16-32-6ka-saa-approved-specially-australian-market-single-phase-electric-mini-30ma-rcbo-circuit-breaker-7.jpg)
Wiring Diagram
![Wiring Diagram](/upload/1c/202107/jvro16-32-6ka-saa-approved-specially-australian-market-single-phase-electric-mini-30ma-rcbo-circuit-breaker-8.jpg)
