Sofielec RCCB Factory direct sale 2P/4P RCCB

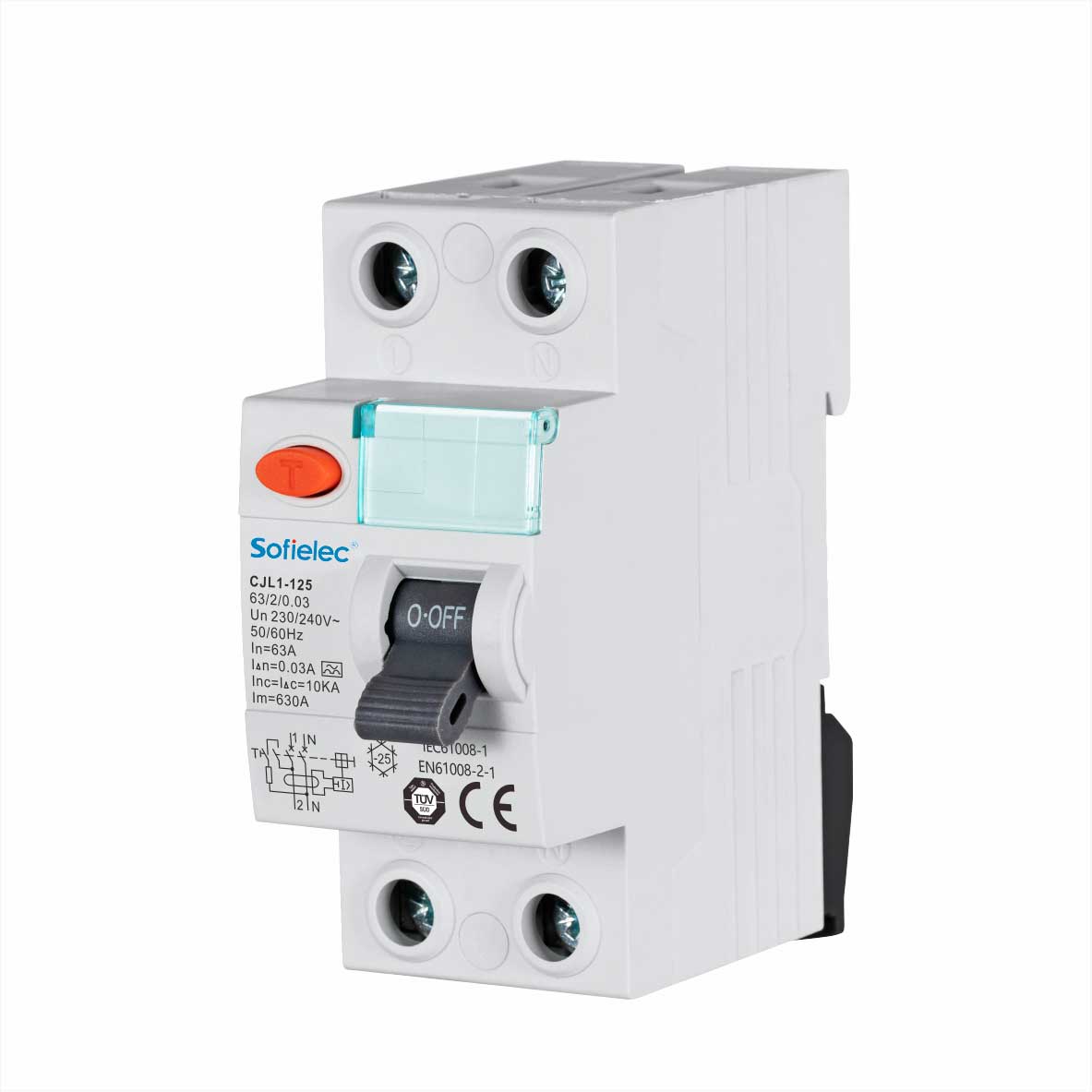

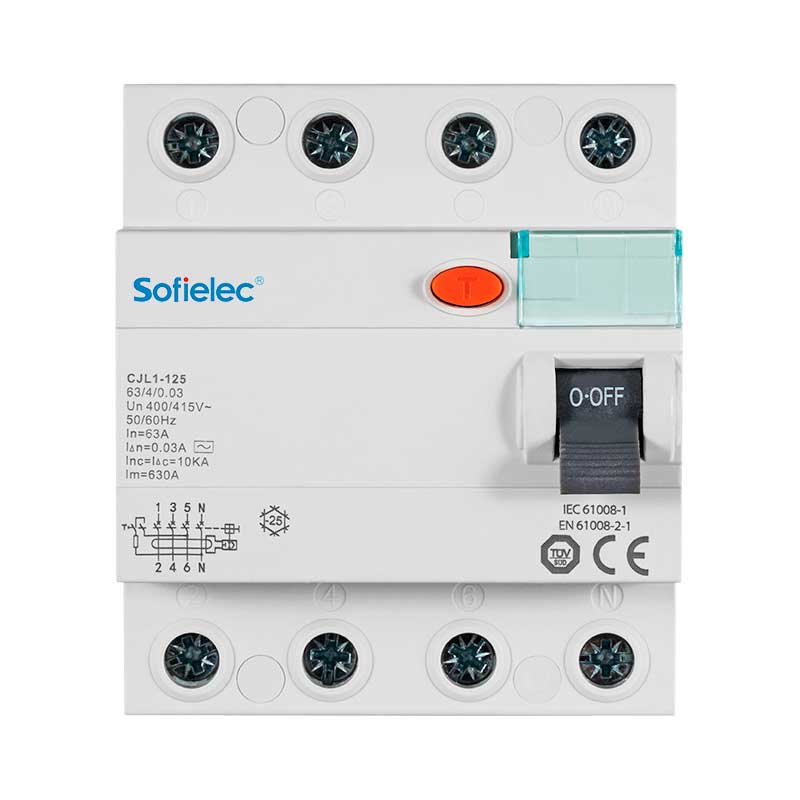

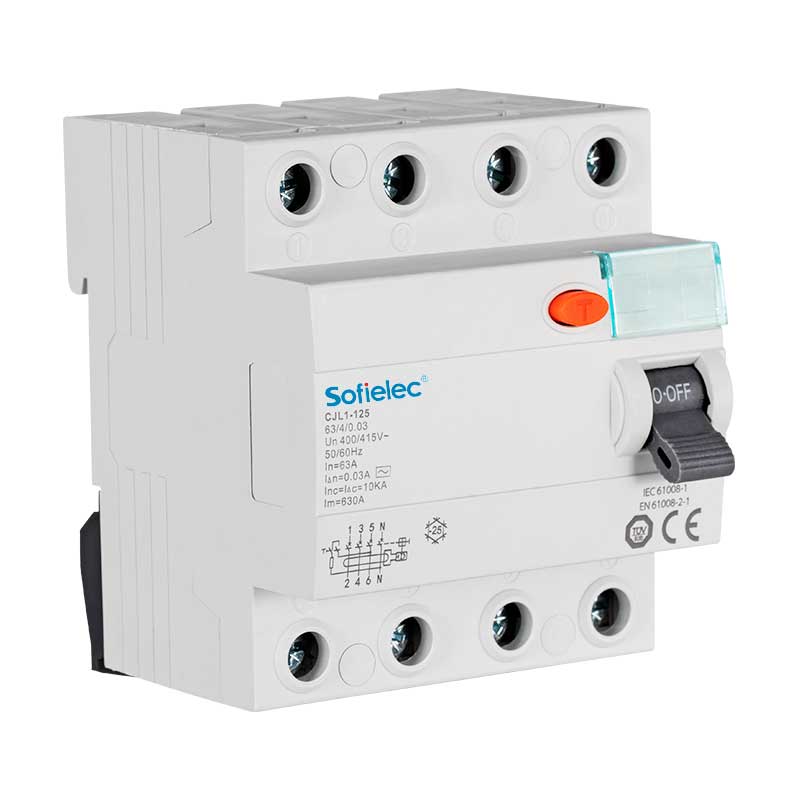

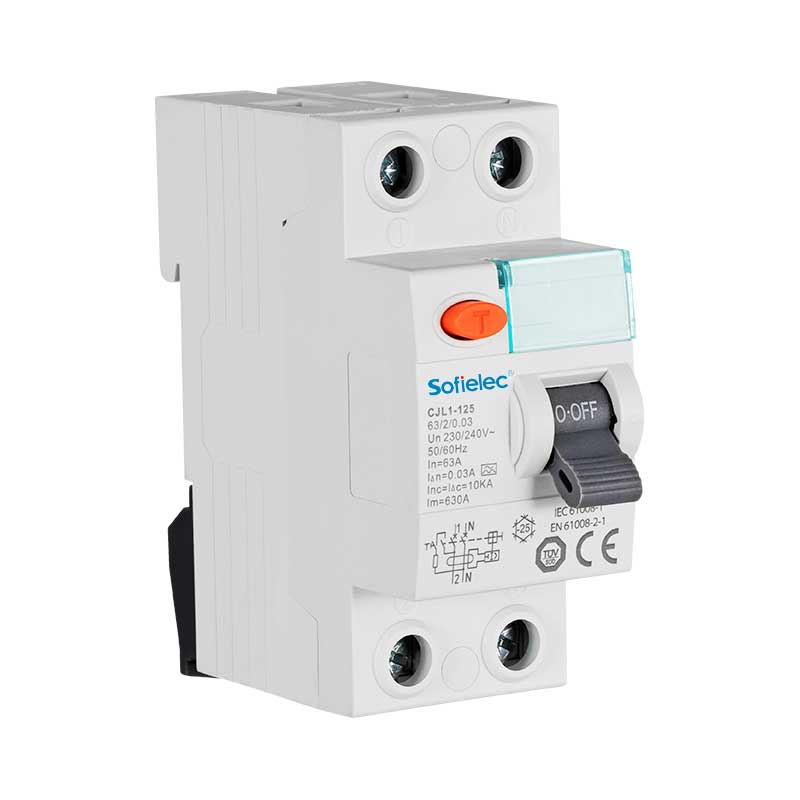

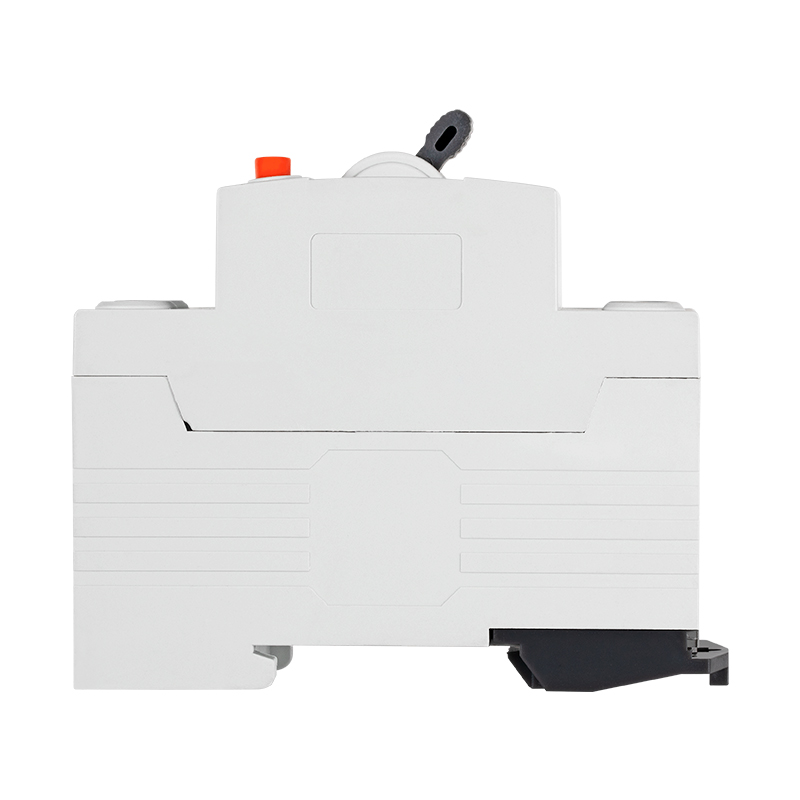

Residual Current Circuit Breaker (RCCB) CJL1-125
Residual Current Circuit Breaker (RCCB) CJL1-125
Residual Current Circuit Breaker (RCCB) CJL1-125
Residual Current Circuit Breaker (RCCB) CJL1-125
Residual Current Circuit Breaker (RCCB) CJL1-125
Residual Current Circuit Breaker (RCCB) CJL1-125
Residual Current Circuit Breaker (RCCB) CJL1-125

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

RCCB stands for Residual Current Circuit Breaker, which is an important safety device used in electrical systems. It is used to detect ground faults and personal electric shock risks, and block circuits to protect personnel safety.

2P and 4P represent two-pole and four-pole respectively, and are used to describe the connection method of the RCCB circuit breaker. 63A, 5A, 25A and 40A represent the rated current respectively.



2P/4P RCCB Technical Parameter

Ratedcurrent
16A,25A,32A,40A,
63A,80A,100A,125A
Rated voltage
230/240V〜, 240/400V〜
Rated frequency 50/60hz
Number of pole 2p  4p
Module size
36mm,72mm
Circuit type
AC type,A type,B type
Breakingcapacity
10000A
Electro-mechanical endurance 4000 cycles



2P/4P RCCB Product Advantages

1.Operating mechanism is plastic structure, operating  performance is more stable and reliable than metal  structure. such as release force, mechanical life cycle. For environmental protection is better than metal type and also the type is new generation mechanism.
2.Inside all current-carrying parts: copper.
3.All screws are with the plastic cover seal the holes, It’s move safety can not open the products in easy.
4.A Big sizes transparent signboard can help user make
some special marks in the signboard area.

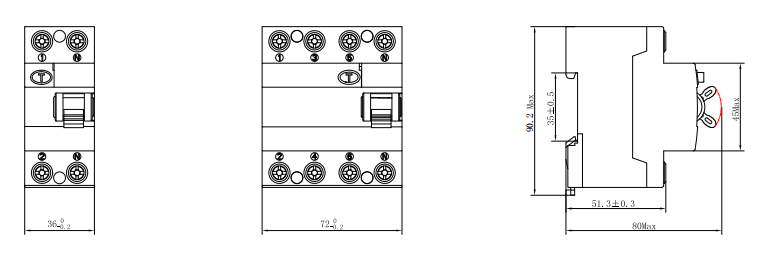

2P/4P RCCB Overall & installation dimensions

Sofielec RCCB Factory provides you with 2P RCCB, and 4P RCCB, with rated currents of 16A, 25A, 32A, 40A, 63A, 80A, 100A, 125A. For more detailed information and specific usage consultation, please consult our professional electrical Engineer or related technical support.
