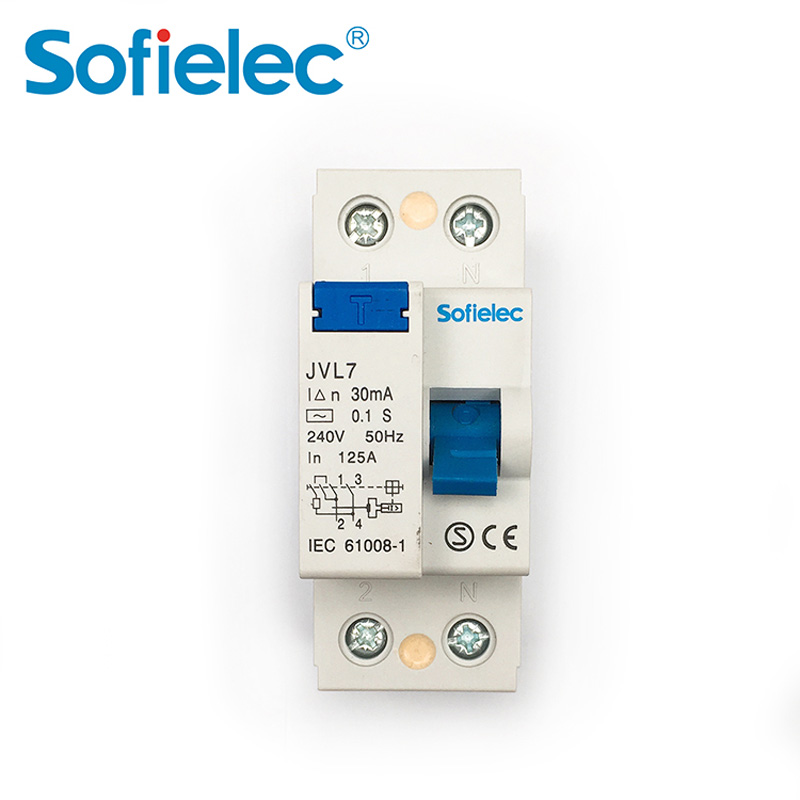

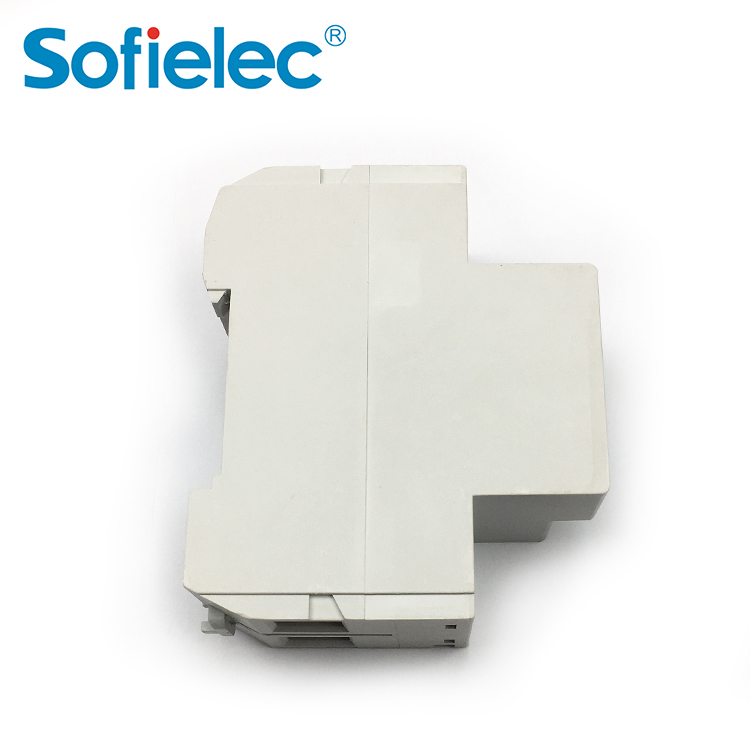

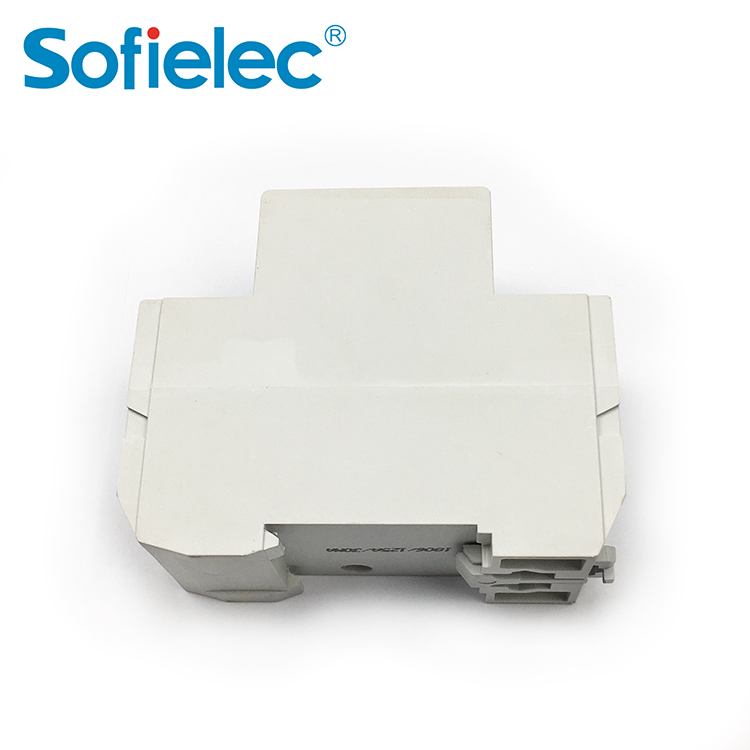

100A/125A RCCB 2P/4P Residual Current Circuit Breaker JVL7

100A RCCB
100A RCCB
RCCB 125A
100Amp RCCB
125A RCCB

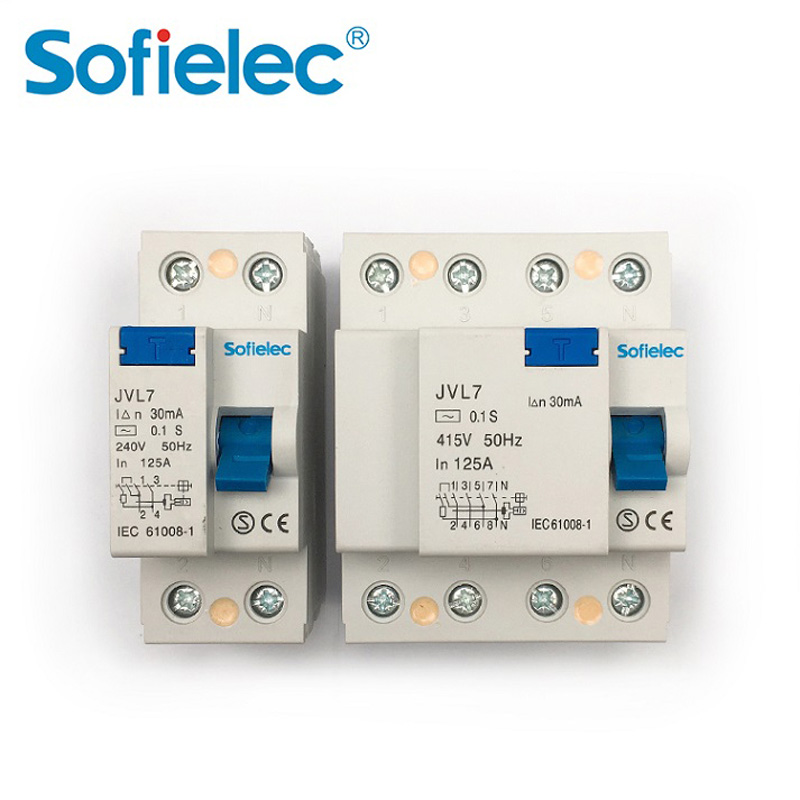

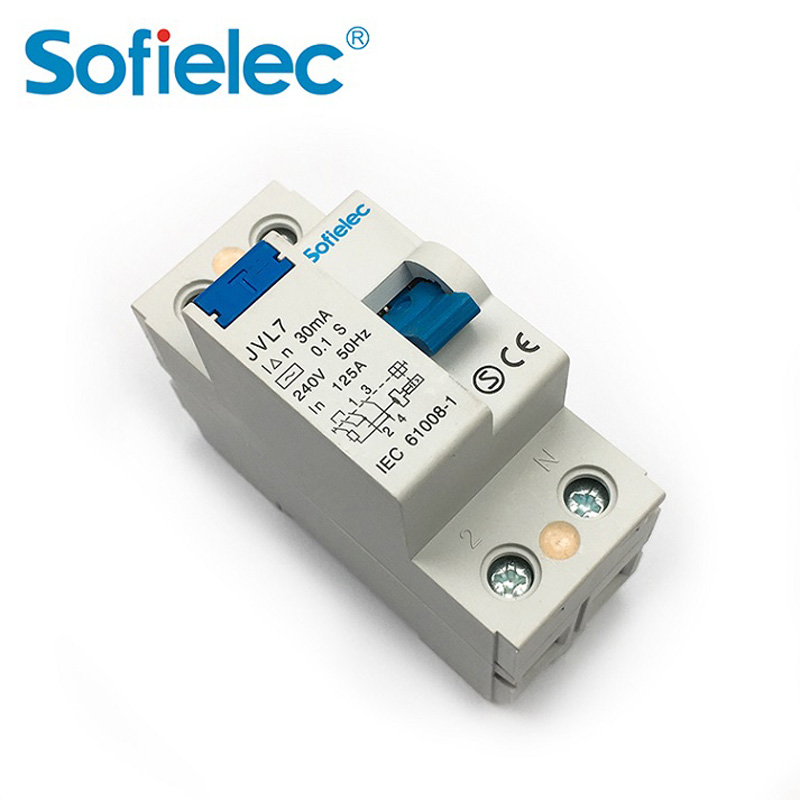

2P Residual Current Circuit Breaker

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

The Sofielec Magnetic RCCB is a residual current circuit breaker designed to protect against electric shock and ground faults. Rated current is 25A, 40A, 63A, 80A, 100A and 125A.

RCCBs are available in 2P (2-pole) and 4P (4-pole) configurations, allowing them to be used in a variety of electrical installations. SEMKO, CB, and CE approvals indicate that it has been tested and certified for safety and meets European standards.

"A" and "AC" types refer to the sensitivity of the RCCB. Type “A” RCCBs are sensitive to alternating current (AC) fault currents, while type “AC” RCCBs are sensitive to both AC and pulsating direct current (DC) fault currents.



Categories Economic 4.5KA, 6kA Regular Series Circuit Breaker
Mode electro-magnetric type. elecronic type
Residual current charatrstics A AC
Pole No 2, 4
Rated making and breaking capacity 630A
Rated current(A) 25, 40, 63, 80, 100, 125
Rated voltage AC 230(240)/400(415)
Rated frequency 50/60Hz
Rated conditional short-circuit current Inc 6kA
Terminal Connection Height 21mm
Protection class lP20



4P Residual Current Circuit Breaker

100A/125A RCCB 2P/4P Residual Current Circuit Breaker JVL7 Technical Data



l Mode: electro-magnetic type, electronic type

l Residual current characteristics: A, AC

l Pole No.: 2, 4

l Rated making and breaking capacity:  630A

l Rated current(A): l 25, 40, 63, 80, 100, 125

l Rated voltage: AC 230(240)/400(415)

l Rated frequency: 50/60Hz

l Rated residual operating current I△n(A): 0.03, 0.1, 0.3, 0.5

l Rated residual non operating current I△no: 0.5I△n

l Rated conditional short-circuit current Inc: 6kA

6kA JVL7 240V Sofielec Magnetic 100A 125A RCCB 2P 4P, SEMKO,CB,CE approval, A,AC type Residual Current Circuit Breaker

l Rated conditional residual short-circuit Current I△c: 6kA

l Tripping duration: instantaneous tripping≤0.1s

l Residual tripping current range: 0.5I△n~I△n

l Electro-mechanical endurance: Not less than 4000

l Connection capacity: Rigid conductor 35mm ²

l Terminal Connection Height: 21mm

l Connection terminal:Pillar terminal with clamp

l Fastening torque: 2.5Nm

l Installation:On symmetrical DIN rail 35mm

Panel mounting

l Protection class:IP20

100A/125A RCCB 2P/4P Residual Current Circuit Breaker JVL7 Construction and Feature

6kA JVL7 240V Sofielec Magnetic 100A 125A RCCB 2P 4P, SEMKO,CB,CE approval, A,AC type Residual Current Circuit Breaker

Provides protection against earth fault/leakage current and function of isolation

High short-circuit current withstand capacity

Applicable to terminal and pin/fork type busbar connection

Contact position indication

Equipped with finger protected connection terminals

Fire resistant plastic parts endures abnormal heating and strong impact

Automatically disconnect the circuit when earth fault/ leakage current occurs and

exceeds the rated sensitivity.

Independent of power supply and line voltage, and free from external interference,voltage fluctuation.

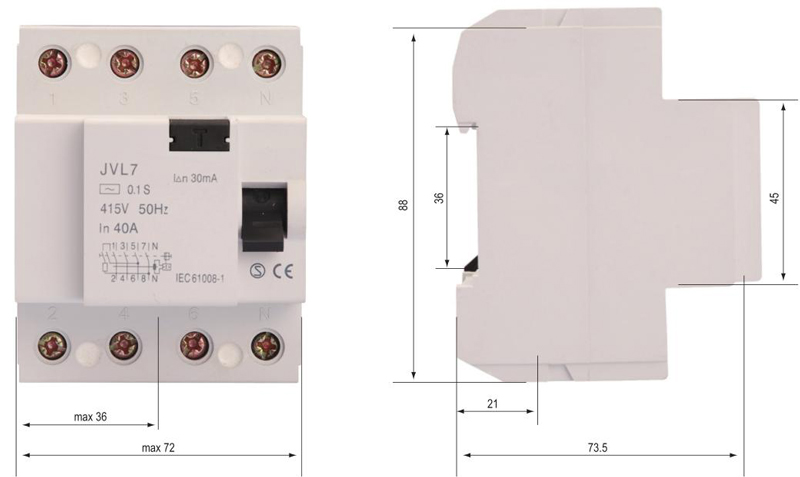

2P/4P Residual Current Circuit Breaker Overall & Installation Dimensions

Overall & Installation Dimensions

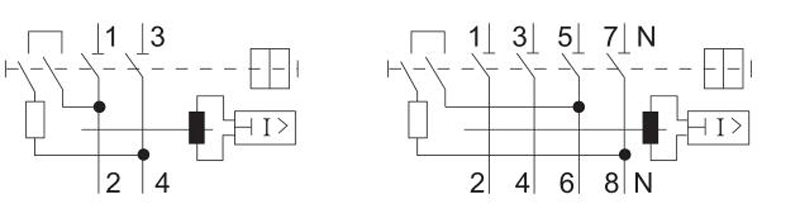

100A/125A RCCB Wiring Diagram



Wiring Diagram



100A/125A RCCB 2P/4P Residual Current Circuit Breaker JVL7 Video



Tags:100A RCCB,RCCB 100A,RCCB 125A,100Amp RCCB,125A RCCB,2P Residual Current Circuit Breaker,4P Residual Current Circuit Breaker
