Construction and Feature
■Location of Use: Sub-Distribution Boards
■Mode of Protection: L-N, N-PE
■Surge Ratings: In= 20kA(8/20μs)
■IEC/EN/UL Category: Class I+l /Type 1+2
■Protective Elements: High Energy MOV and GDT
■Housing: Pluggable Design
■Compliance:
□IEC 61643-11:2011
□EN 61643-11:2012

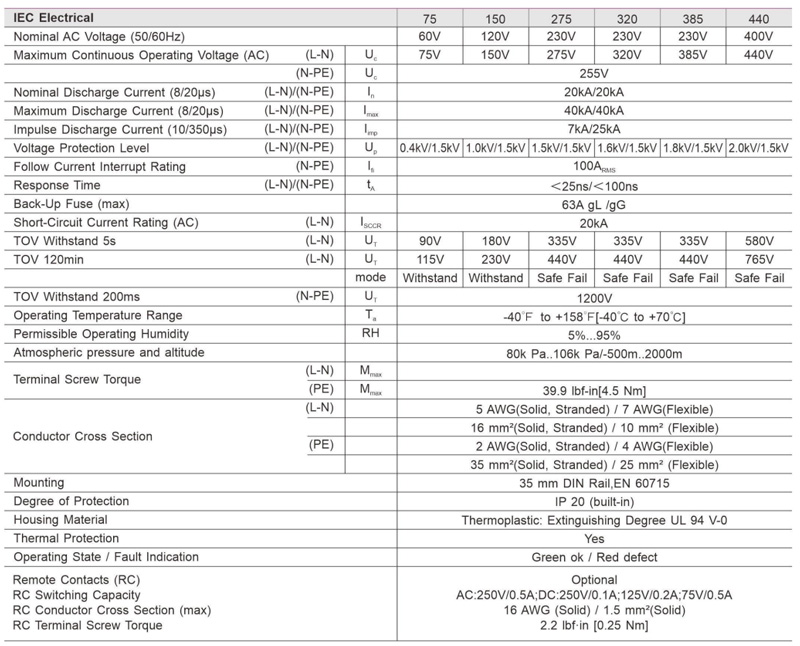

Technical Data

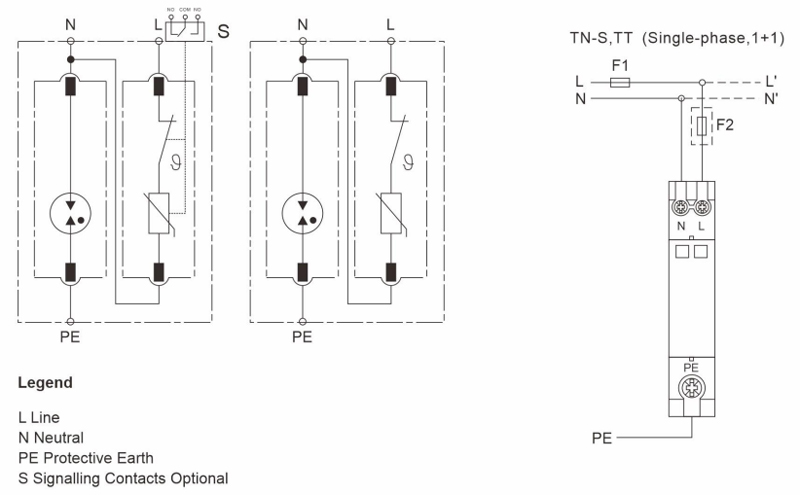

Internal Configuration and Connection Diagram

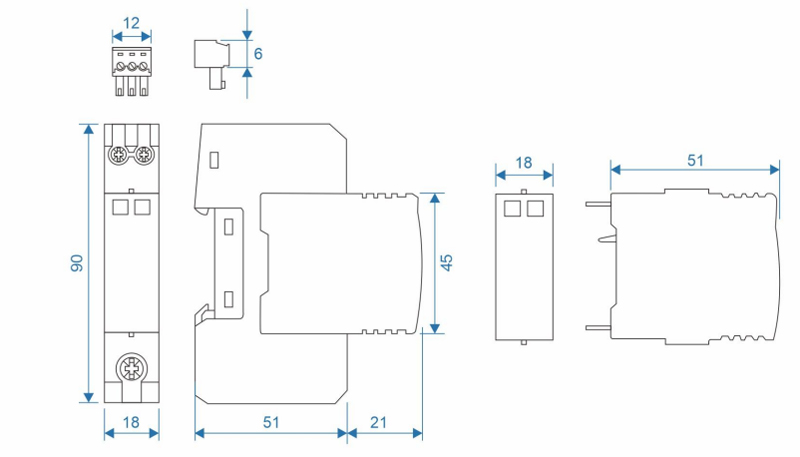

Dimensions & Packaging
