ATMS Start-delta Modular Timer Relay

ATMS Start-delta Modular Timer Relay
ATMS Start-delta Modular Timer Relay

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

Categories Time Relay
Model ATMS5
Supply Voltage 24~ 240VAC/DC 50-60Hz
Time Range 0.5S~ 10M (Can be customized according to customer requirements)
Time setting potentiometer
Time Deviation 5% mechanical setting
Repeat Accuracy 0.2% set value stability
Consumption AC0.7-3 VA, /DC0.5- 1.7W
Supply Indication Green Led
Output Indication Red Led
Reset time Max.200mS
Operating temperature -10~ +50

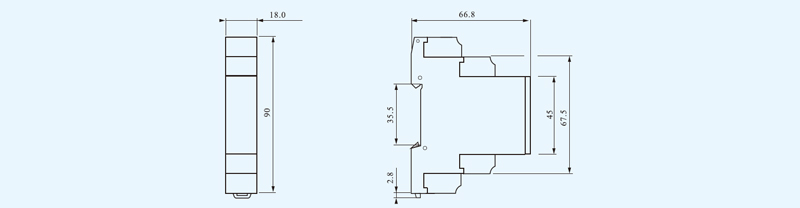

● 18mm wide

● Time setting from 0.05 Secto 10 Min Can be customized according to customer requirements

● Relay status is indicatedby LED

● 35 mm rail mounting

● Multi-voltage

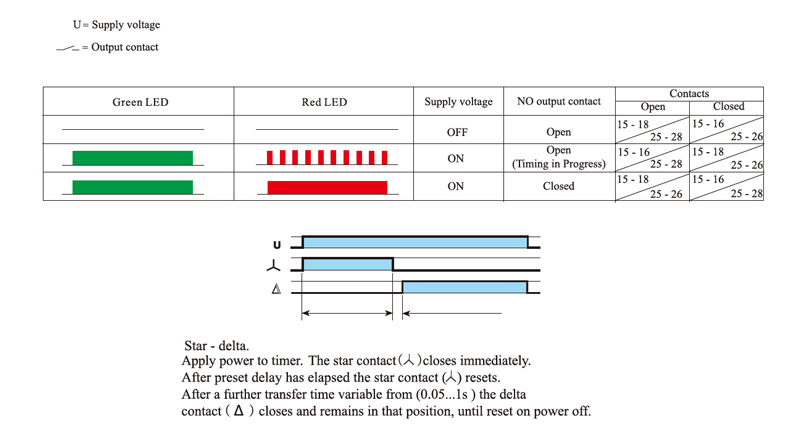

● Start Delta




Technical date

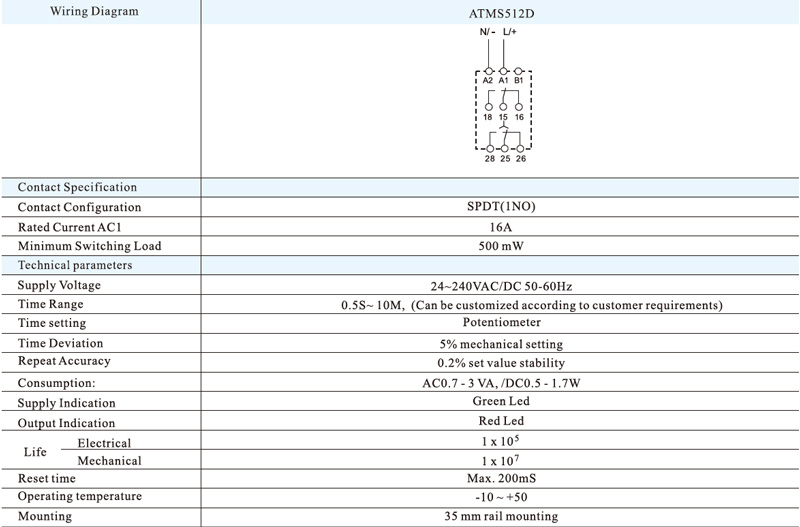

Technical date:Wiring Diagram
