AULT Latching/Memory/Electronic Step Relay

AULT Latching/Memory/Electronic Step Relay
AULT Latching/Memory/Electronic Step Relay

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

Categories Time Relay
Model AULT001
Rated Voltage 230VAC 50/60Hz
Rated Current 16A 250VAC(COSp=1)
Contact configuration 1NO(SPST-NO)
Mounting DIN Rail 35 mm(EN 60715)
Ambient temperature range -10...+60℃



Function

Longer mechanical and electrical life,and much quieter than electromechanical step relays.

controlled by buttons for light switching from more places, are a practical replace-ment for three-way switches and cress-bar switches.

AULT001 Without memory function

AULT003 With memory function



Technical date

Rated Voltage: 230VAC 50-60Hz

Rated Current: 16A 250VAC(COSφ=1)

Contact configuration: 1NO(SPST-NO)

Mounting: DIN Rail 35 mm(EN 60715)

Ambient temperature range: -10...+60C

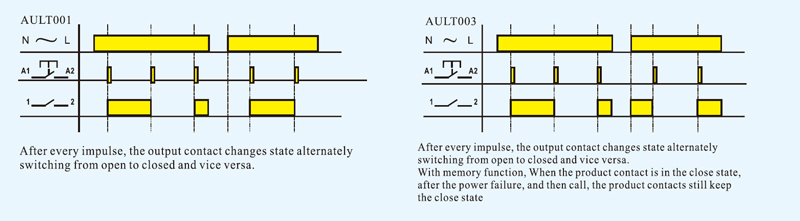

Functions

Functions

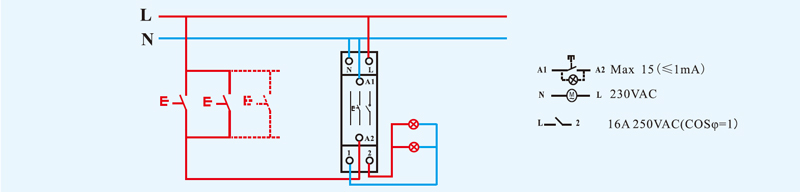

Connection Diagrams

Connection Diagrams

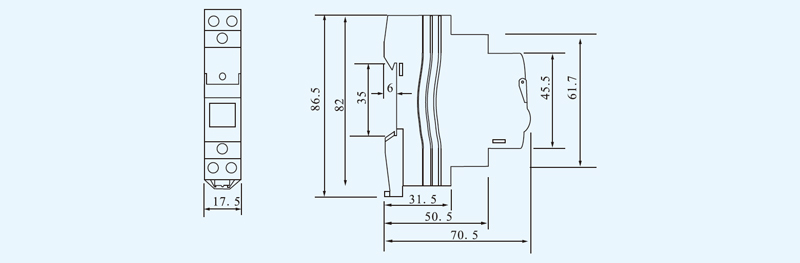

Dimensions

Dimensions
