ZHRT2-A Time Relay

ZHRT2-A Time Relay
ZHRT2-A Time Relay

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

Categories Time Relay
Rated supply voltage DC12V AC/DC 24V~240V
Rated power consumption 1W
Delay range 0.1s~100h multi-range adjustment
Setting accuracy ≤5%
Repeat accuracy ≤0.2%
Repeat power-on interval ≥200ms
Altitude ≤2000m
Contact configuration capacity(A) C/O:16A,2C/O:16A,3C/O:8A,2C/O+1 instantC/O:8A+16A
Contact capacity Ue/Ie AC240V/1.5A
Ѕtаndаrd Guіdе (width)35mm
Function



Applications

Used in control cabinets, cabinets and other electrical control circuit,according to the scheduled time automatically switch on or off the circuit.

Features

Built-in microcontrollers, 0.1s ~100h wide delay range, repeat accuracy <0.2%. Knob setting, LED indicator shows working status. Variety of optionalrated voltage. DIN rail mounting.

Rated control supply voltage DC12V、AC/DC 24V~240V 50/60Hz
Rated power consumption 1W
Delay range 0.1s~ 100h multi-range adjustment
Setting accuracy ≤5%
Repeat accuracy ≤0.2%
Repeat power-on interval ≥200ms
Electrical life 105
Mechanical life 106
Altitude ≤2000m
Contact configuration capacity(A) 1C/O:16A ,2C/0:16A, 3C/O:8A,2C/O+ 1 instant C/O:8A+ 16A
IP Class IP20
Class of pollution III
Use category AC-15
Contact capacity , Ue/le AC240V/1.5A. AC380V/0.95A
Contact capacity 1C/0 ,2C/0,3C/O,2C/0+1 instant C/O
Standard Guide width:35mm(IEC/EN60715)

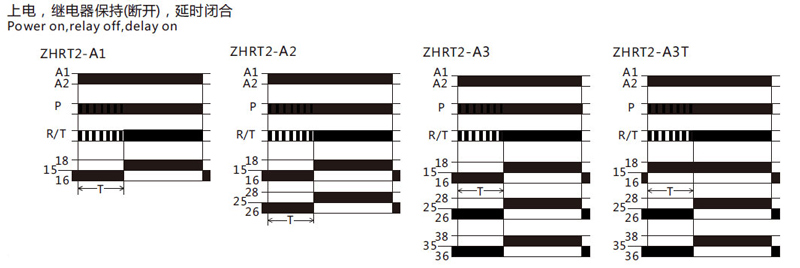

Function Diagram



Function Diagram:Power on,relay off,delay on

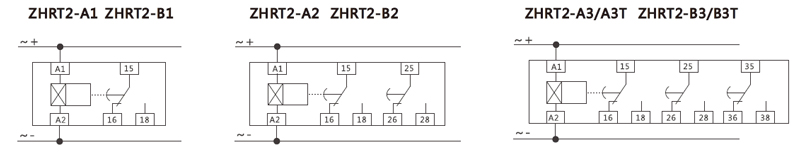

Wiring Diagram
Wiring Diagram:ZHRT2-A1,ZHRT2-B1,ZHRT2-A2,ZHRT2-B2,ZHRT2-A3/A3T,ZHRT2-B3/B3T

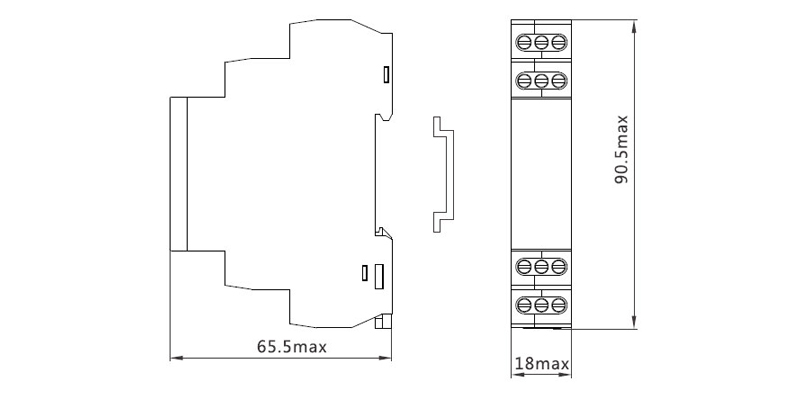

Dimensions
Dimensions
