ATS18 Electronic staircase timer 16A Multi-function

ATS18 Electronic staircase timer 16A Multi-function
ATS18 Electronic staircase timer 16A Multi-function

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

Categories Time Switch
Model ATS18
Contact configuration 1NO(SPST-NO)
Rated current/Maximum peak current 16A
Rated voltage/Maximum switching voltage 230V AC
Rated load AC1 3700 VA
Rated load Ac15 (230 V AC) 750 VA
Minimum switching load mW (V/mA) 1000(10/10)
Standard contact material AgSnO2
Nominal voltage (UN) 230V AC(50/60Hz)
Rated power 3VA/1.2W
Maximum impulse duration continuous
Ambient temperature range -10~ +60
Features

● 18mm wide

● Time setting from 30 seconds to 20 minutes

● "Zero crossing"load switching

● "Switch-off early warning"

● Suitable for 3 or 4 wire systems,with automatic recognition

● LED status indicators

   Automatic

   Light ON

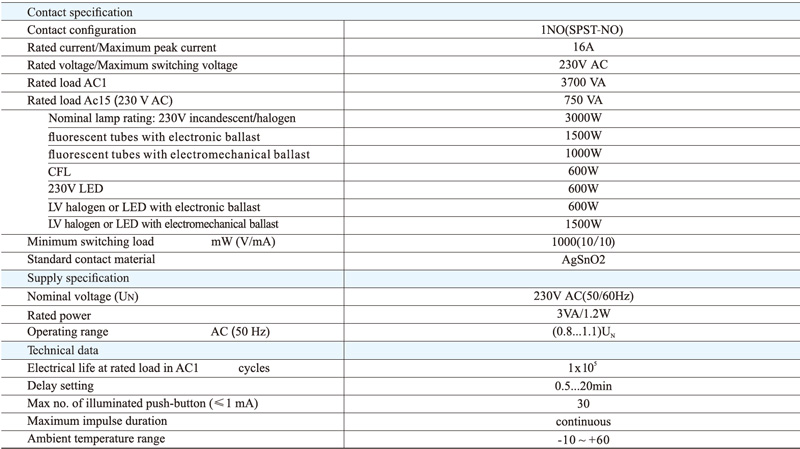

Technical date

Technical date:Contact specification,Rated current/Maximum peak current,Rated voltage/Maximum switching voltage

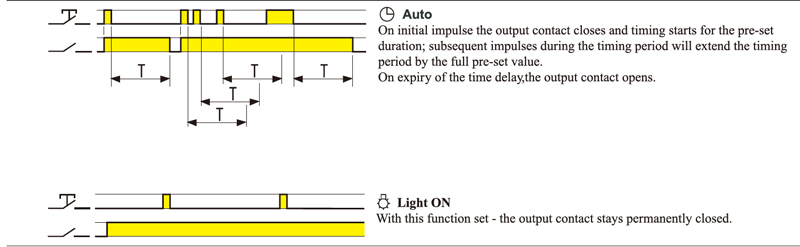

Functions

Functions:Auto,Light ON

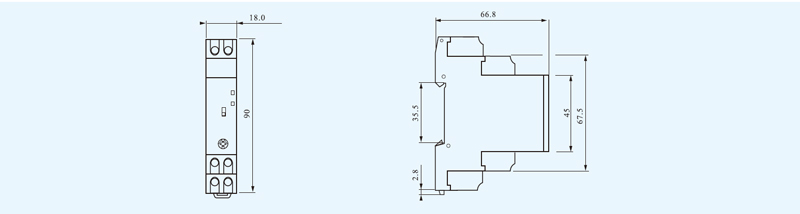

Dimensions

Dimensions

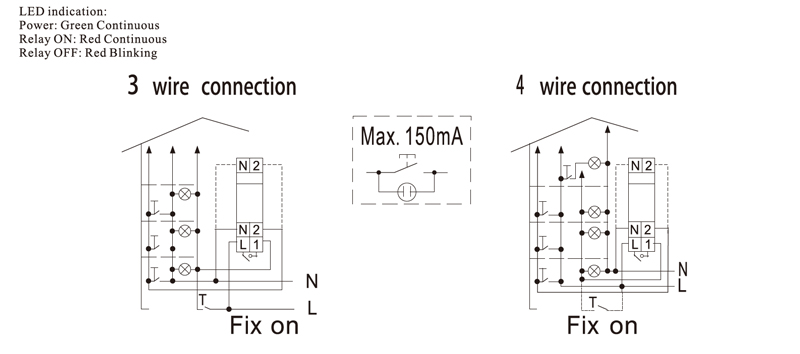

Wiring Diagrams

Wiring Diagrams:LED indication:Power:Green Continuous,Relay ON:Red Continuous,Relay OFF:Red Blinking
