Function
|

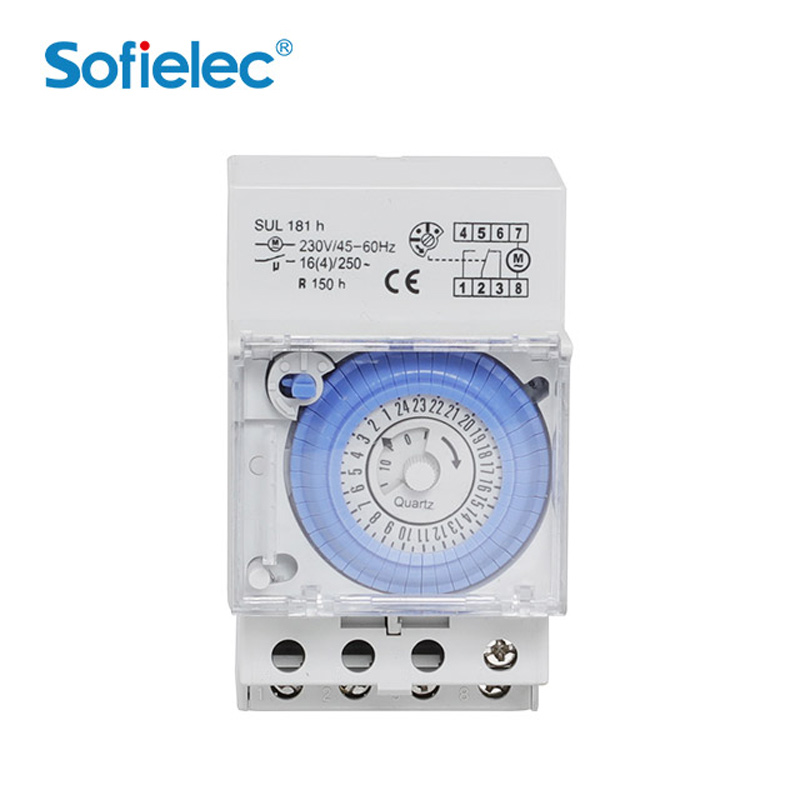

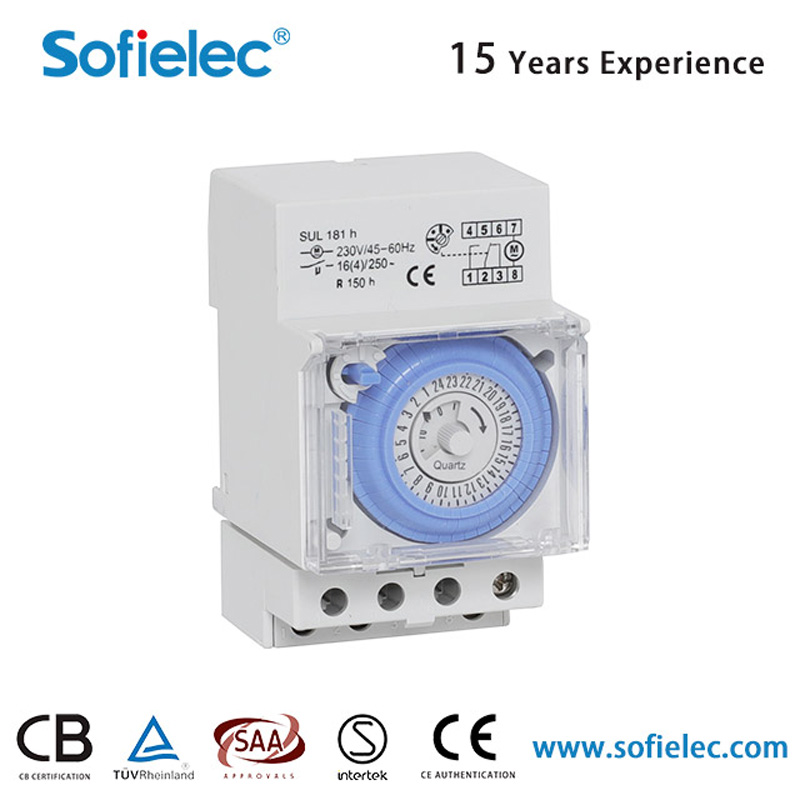

Analogue time switch |
|
1 channel |
|
Daily program |
|
Quartz controlled |
|
Shortest switching time: 30 minutes |
|
Fine adjustment for time setting accurate to the minute |
|
Simple summer/winter time correction |
|
48 switching segments |
|
Screw terminals |
|
witching preselection |
|
Manual switching with continuous ON/AUTO/continuous OFF |
|
Permanent ON/OFF switch |
|
Switching status display |
|
Operating indication |
|
SUL181h ：With power reserve (NiMH rechargeable battery) |
|
SYN161h：Without power reserve |
|
Billboard or Showcase lighting |
|
Air-condition or Commercial Refrigeration |
|
Pumps/Motor/Geyser/Fan Control |
|
Hydroponic Systems |
|
Wastewater Treatment Systems |
|
Generator Exercising |
|
Boilers / Heater Control |
|
Pool & Spa |
Technical Data
|
Type
|
SUL181h/SYN161h |
|
Operating voltage |
230-240 VAC / 110VAC / 24VDC / 12VDC |
|
Frequency |
50-60Hz |
|
Number of channels |
1 |
|
Width |
3 modules |
|
Installation type
|
DIN-rail |
|
Type of connection |
Screw terminals |
|
Drive |
Quartz-controlled stepper motor |
|
Program |
Daily program |
|
Power reserve |
7 days |
|
Max. switching capacity at 250 V AC, cos φ = 1 |
16 A |
|
Max. switching capacity at 250 V AC, cos φ = 0.6 |
4 A |
|
Incandescent/halogen lamp load |
1100W |
|
LED lamp < 2 W |
20W |
|
LED lamp > 2 W |
180W |
|
Shortest switching time |
30 min |
|
Programmable every
|
30 min |
|
Number of switching segments |
48 |
|
Time accuracy at 25 °C |
≤ ± 2 s/day(Quartz) |
|
Type of contact |
Changeover contact |
|
Switching output |
Potential-free and phase-independent |
|
Power consumption |
1.5VA |
|
Test approvals |
CE |
|
Housing and insulation material
|
High-temperature resistant, self-extinguishing thermoplastic |
|
Type of protection |
IP 20 |
|
Protection class |
II in accordance with EN 60730-1 |
|
Ambient temperature |
–10 °C … +50 °C |
Connection Example
Scale Drawings
Other
