SUL181d Analogue time switches-3 modules-segmens,DIN-rail

SUL181d Analogue time switches-3 modules-segmens,DIN-rail
SUL181d Analogue time switches-3 modules-segmens,DIN-rail

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

Categories Time Switch
Model SUL181h
Voltage rating 110-230VAC 50/60Hz
Voltage limit 100-240VAC
Width 3 Modules
Installation type DIN-rail
Program Daily(24 hours) program
Power reserve 150 hours
Shortest switching time 30 minutes
Programmable every 30 minutes
Time accuracy ≤土1 s/day(Quartz)
Power consumption 1 VA
Ambient temperature - 20℃ ~ +55℃
Common function

● Analogue time switch, 1 channel

● daily/24 hours program

● 96 switching segments

● DIN rail installation

● Synchronised with mains

● Shortest switching time: 15 Minutes

● With power reserve 200 hours

● SUL181a with battery reserve

● SUL161a without battery reserve


Technical date

● Voltage rating: 230VAC 50/60Hz

● Voltage limit: 200-240VAC

● Width: 1 Modules

● Installation type: DIN-rail

● Program: Daily(24 hours) program

● Power reserve: 72 hours

● Max. switching capacity at 250vac, cosφ=1: 16A

● Max. switching capacity at 250vac, cosφ=0.6: 4A

● Shortest switching time: 15 minutes

● Programmable every: 15 minutes

● Time accuracy: ≤土1 s/day(Quartz)

● Power consumption: 1 VA

● Ambient temperature: -20C~ +55°C

● DuoFix spring terminals

● Manual switch with 3 positions: Permanent ON/AUTO/ Permanent OFF

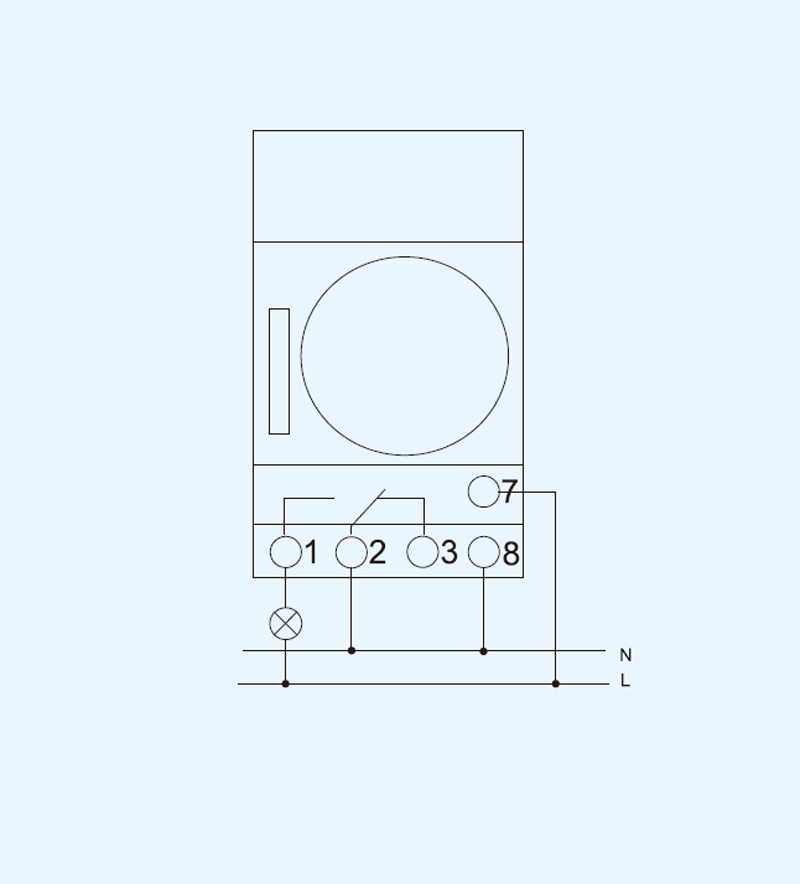

Connection example

Connection example
