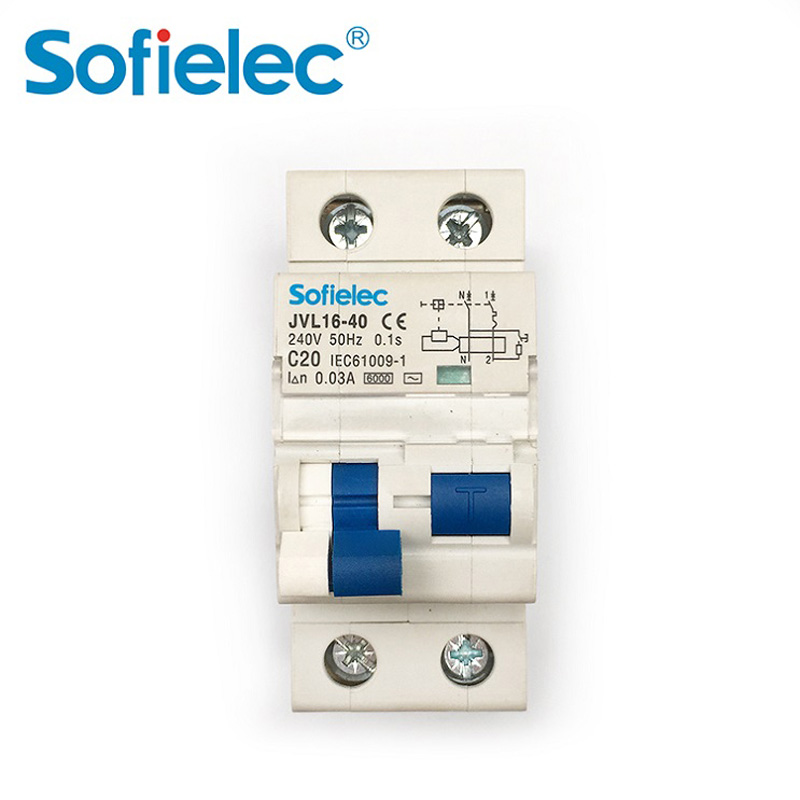

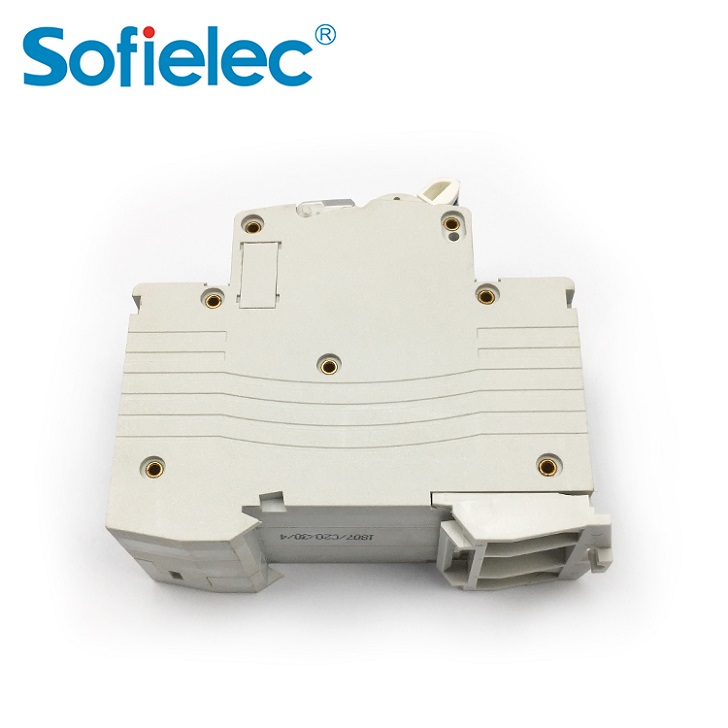

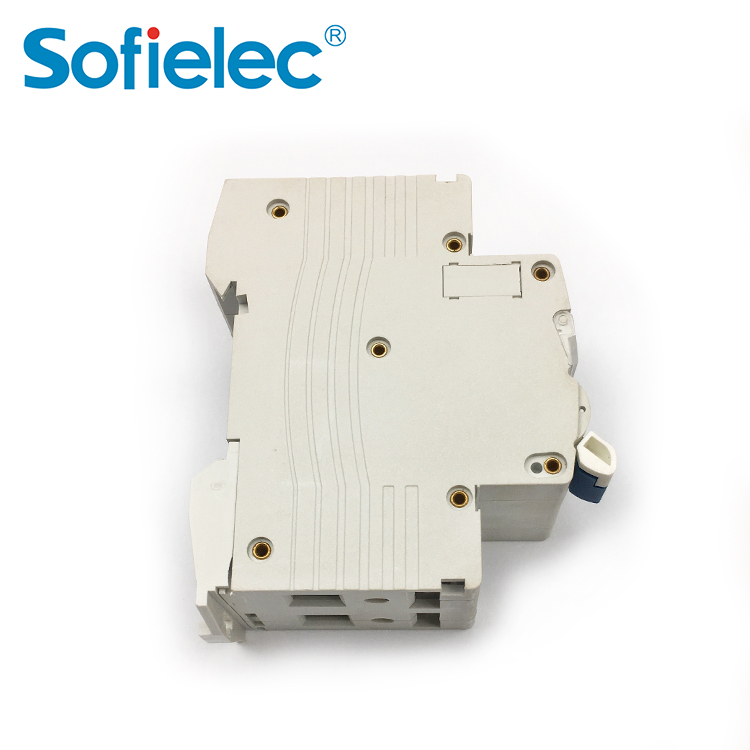

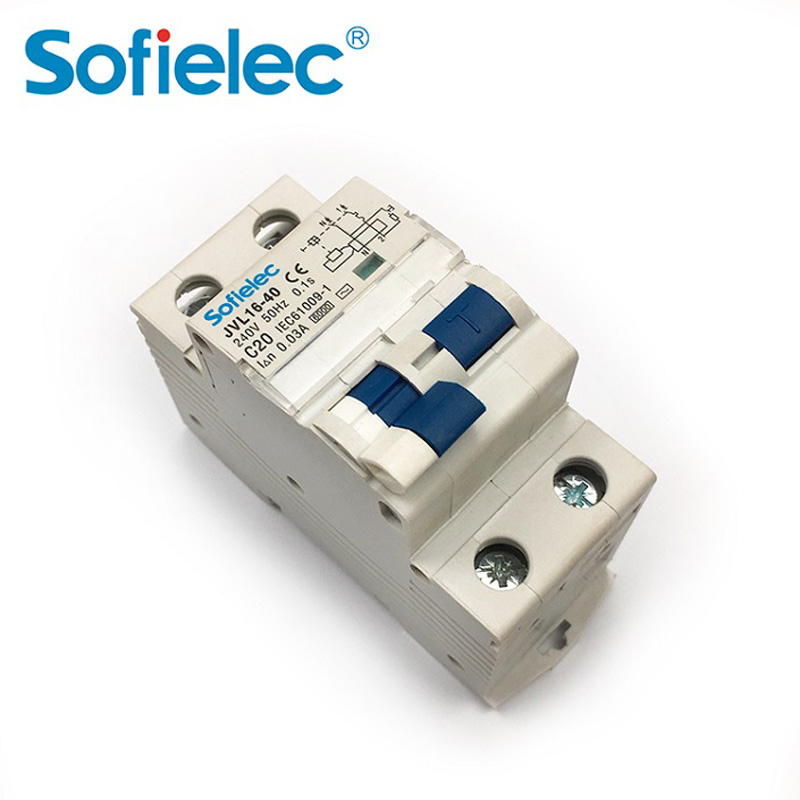

10kA JVL16-40 Factory price 1P+N 100ma rcbo circuit breaker with overload protection

10kA JVL16-40 Factory price 1P+N 100ma rcbo circuit breaker with overload protection
10kA JVL16-40 Factory price 1P+N 100ma rcbo circuit breaker with overload protection
10kA JVL16-40 Factory price 1P+N 100ma rcbo circuit breaker with overload protection
10kA JVL16-40 Factory price 1P+N 100ma rcbo circuit breaker with overload protection
10kA JVL16-40 Factory price 1P+N 100ma rcbo circuit breaker with overload protection

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.



www.sofielec.com

Provides protection against earth fault/leakage current, short-circuit, overload, and
function of isolation
Provides complementary protection against direct contact by human body
Effectively protects electric equipment against insulating failure
Provides comprehensive protection to household and commercial distribution
systems

Categories Superior 10kA 16 Series Circuit Breaker
Type Electro-magnetic type
Residual current characeristics AC APole No.: 1P+N
Tripping curve B,C, D
Rated short-circuit capacity 10kA
Rated voltage 240V AC
Rated frequency 50/60Hz
Rated residual operating current(mA) 0.03,0.1,0.3.
Tripping duration instantaneous≤0.1s
Electro-mechanical endurance 4000 cycles
Connection terminal pillar terminal with clamp

RCBO circuit breaker Technical Data

RCBO circuit breaker

Type:Electro-magnetic type

Residual current characteristics: AC A

Pole No.: 1P+N

Tripping curve: B, C, D

Rated short-circuit capacity: 10kA

Rated current (A): 1,2,3,4,6,10,16,20,25,32,40

Rated frequency: 50/60Hz

Rated residual operating current(mA): 0.03,0.1,0.3

Tripping duration: instantaneous≤0.1s

Electro-mechanical endurance: 4000 cycles

Connection terminal: pillar terminal with clamp

Connection capacity:Rigid conductor 16mm 2

Terminal connection height: 21.5mm

Installation:On symmetrical DIN rail 35mm

Panel mounting  Wiring Diagram

 Construction and Feature
RCBO circuit breaker

Provides protection against earth fault/leakage current, short-circuit, overload, and

function of isolation

Provides complementary protection against direct contact by human body

Effectively protects electric equipment against insulating failure

Provides comprehensive protection to household and commercial distribution

systems

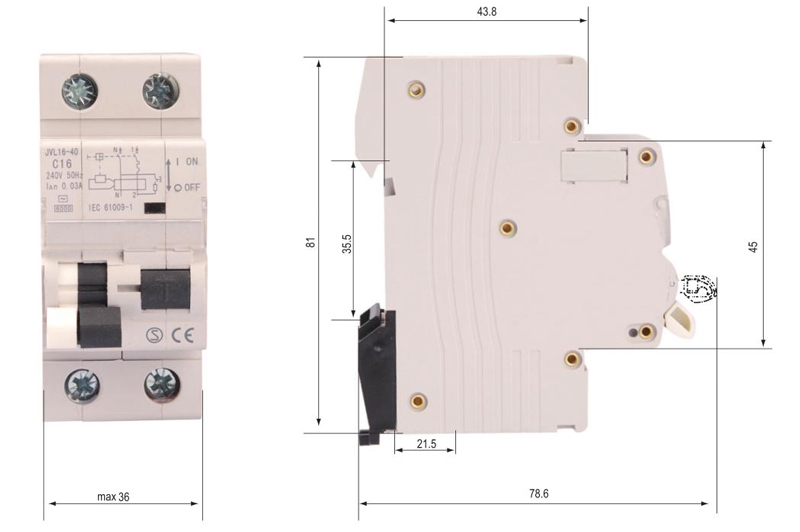

Overall & Installation Dimensions
Overall & Installation Dimensions

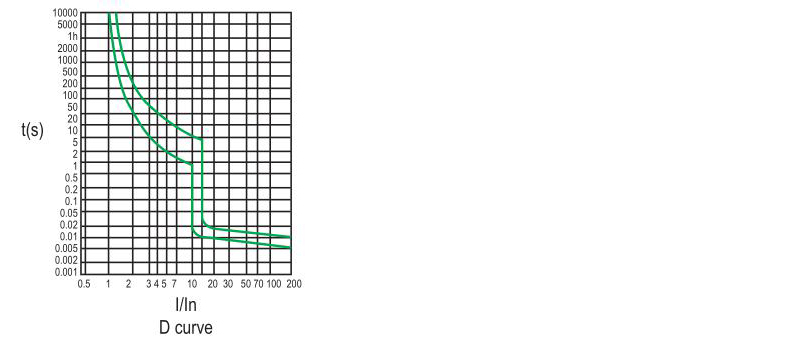

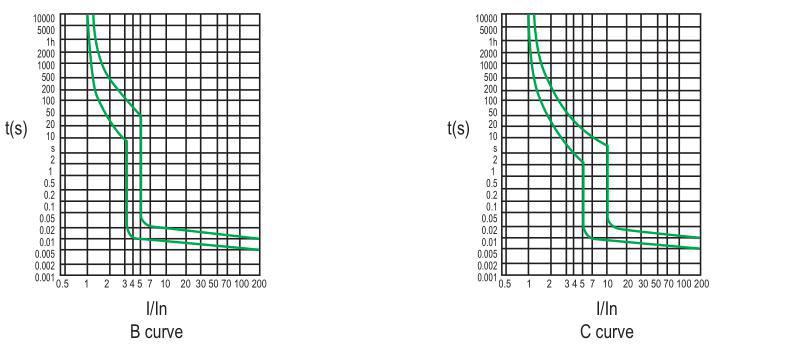

Characteristic Curve
Characteristic Curve
Characteristic Curve

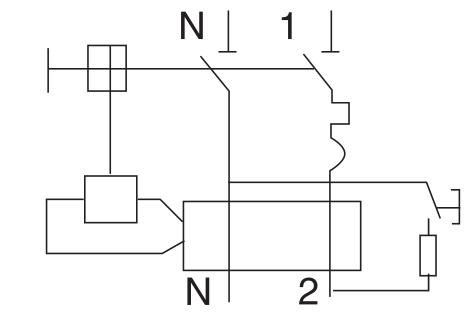

Wiring Diagram
Wiring Diagram
