Categories | socket |
Model | 56SO310 |
Current | 10A 13A 15A 20A 32A 40A 50A |
Pole | 3P 4P 5P |
Dimension | a 101 b 101 c 101 |
Description

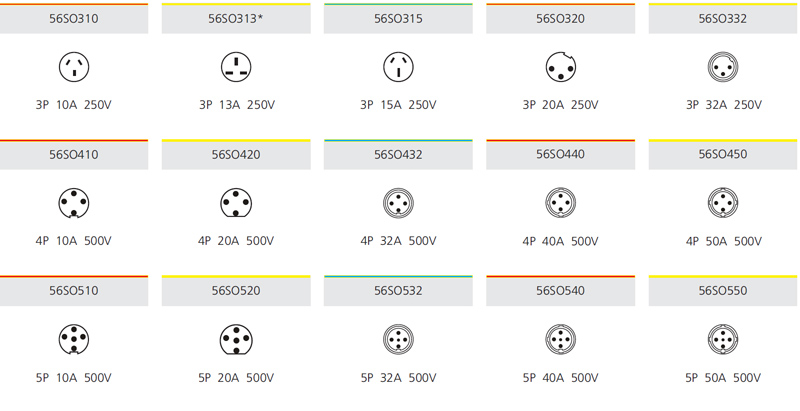

Parameter
Current(A) | 10 | 13 | 15 | 20 | 32 | 40 | 50 | |||||||||||
Pole(P) | 3 | 4 | 5 | 3 | 3 | 3 | 4 | 5 | 3 | 4 | 5 | 3 | 4 | 5 | 3 | 4 | 5 | |
Dimension(mm) | a | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 | |||
b | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 | ||||
c | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 |

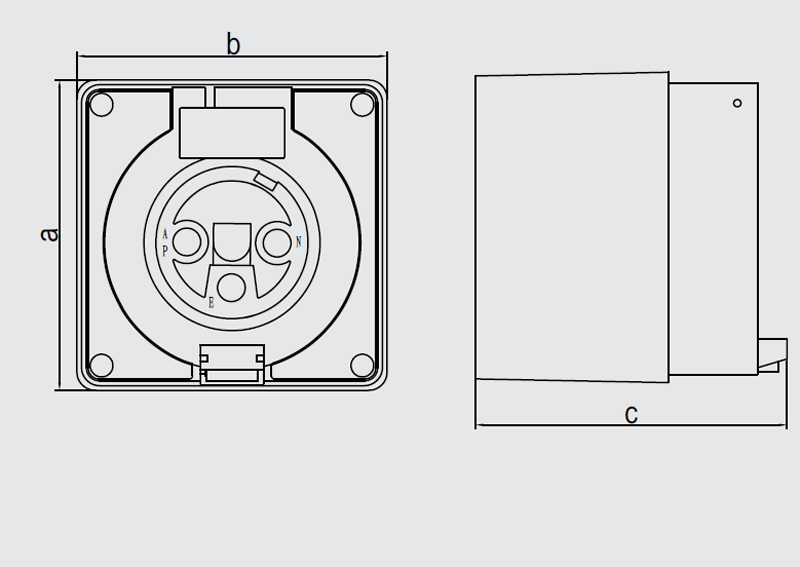

Dimension
Standard
In line with Australian National Standard AS/NZS 3112:2004 AS/NZS 3123:2005 *British Standard BS1363
