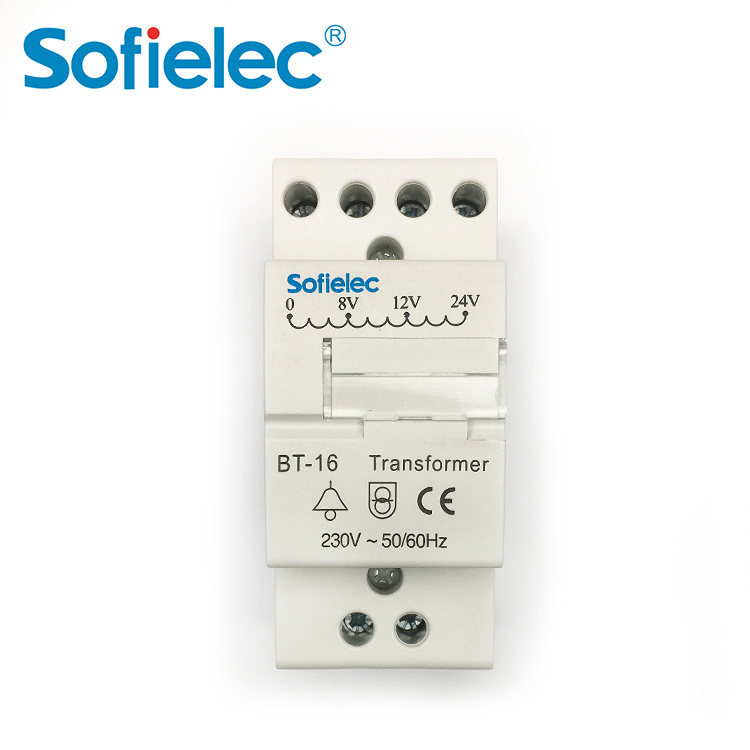

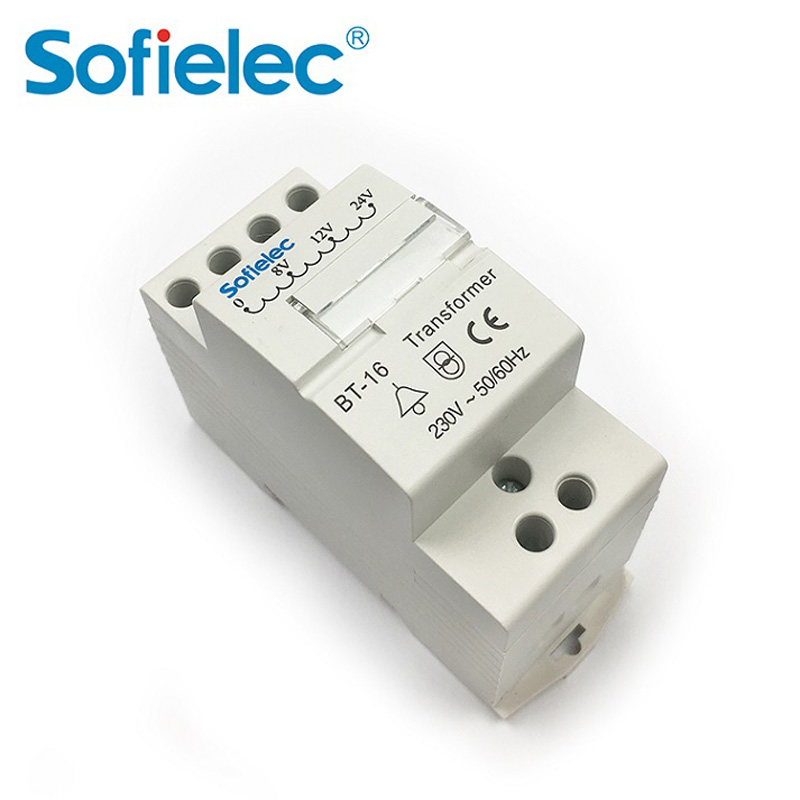

| Categories | Circuit Breaker Accessory |
| Rated input voltage | 230V AC |
| Rated output voltage | 4,6,8, 12, 16, 24V |
| Rated frequency | 50/60Hz |
| Rated power output | 8VA |
| Consumption | 1.15W |
| Service period | continuous operating |
| Pollution class | 2 |
| Connection terminals | pillar terminal with clamp |
| Connection capacity | rigid conductor 10mm² |
| Terminal Connection Height | H=15.5mm |
Technical Data
|
l Rated input voltage: 230V AC |
|
l Rated output voltage: |
|
l BT16: 8, 12, 24V |
|
l BT8: 4, 6, 8, 12, 16, 24V |
|
l Rated frequency: 50/60Hz |
|
l Rated power output: 8VA |
|
l Consumption: 1.15W |
|
l Service period: continuous operating |
|
l Pollution class: 2 |
|
l Connection terminals: pillar terminal with clamp |
|
l Connection capacity: rigid conductor 10mm ² |
|
l Installation:On symmetrical DIN rail 35mm |
|
l Terminal Connection Height: H=15.5mm |
Construction and Feature
Safe electrical separation between primary and secondary circuit
Provides extra low voltage up to 24V
Low temperature rising
High output accuracy
Extra overload capacity up to 25% within 24 hours
Aplication
Applicable to circuit with rated voltage 230V~ and rated frequency 50/60Hz, used to power electric bell of extra low voltage.

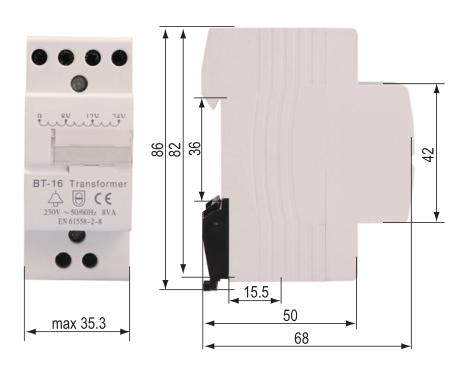

Overall & Installation Dimensions
