What Should You Look for in a DC Isolator Switch for Solar PV?

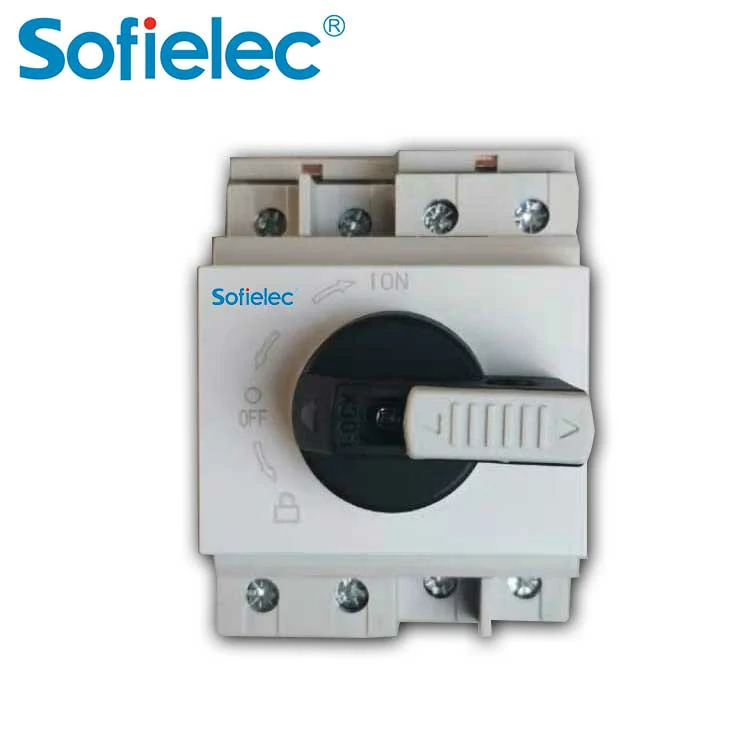

You're designing a residential or commercial photovoltaic system — rooftop panels, ground-mounted arrays, or carport installations. Between the solar modules and the inverter, you need a reliable way to disconnect DC power for maintenance, emergency shutdown, or system servicing. A isolator switch is the device that does exactly that: it provides a visible break in the circuit, isolating the solar array from the inverter and ensuring safe working conditions for technicians. The FMPV-32-L1 series is a DC isolator switch designed for 1-20kW PV systems, rated up to 1200V DC with arc extinction in less than 8ms. This guide covers what a DC isolator switch does, the key specifications that determine performance, and how to select the right one for your solar installation.
One Switch, One Job – Safely Disconnecting Your Solar Array from the Inverter
A DC isolator switch is installed between the photovoltaic modules and the inverter. Its primary function is to provide a reliable means of disconnecting the DC circuit — isolating the solar array so that maintenance, inspection, or emergency work can be performed safely. The switch creates a visible air gap when in the OFF position, giving technicians confidence that the circuit is de-energized. In solar PV systems, this is a critical safety requirement. Without a properly rated isolator, technicians would be exposed to live DC voltage from the panels — a serious hazard that can cause injury or death. The FMPV-32-L1 series is designed specifically for this application, providing a robust and reliable disconnect point for residential and commercial systems.
Where the Isolator Fits in the PV System
The isolator is placed between the solar modules and the inverter. When the switch is in the OFF position, the DC circuit is broken, isolating the inverter from the panels. This allows safe maintenance on the inverter, the wiring, or the panels themselves.
The Lockable OFF Position – A Critical Safety Feature
The handle can be locked in the "OFF" position. This simple but essential feature prevents accidental reconnection while maintenance is in progress. A padlock can be attached to the handle, ensuring that only the authorized person who installed the lock can restore power.
1200V DC, 32A, and 4P – The Specs That Match Your System Requirements
The FMPV-32-L1 series is rated for a maximum voltage of 1200V DC with current ratings of 16A, 25A, and 32A. The 4-pole configuration (4P) is standard. This rating covers most residential and commercial PV systems in the 1-20kW range. The rated operational voltage options include 300V, 600V, 800V, 1000V, and 1200V. The rated impulse withstand voltage (Uimp) is 8.0kV. The rated insulation voltage (Ui) is 1200V.
Choosing the Right Current Rating
The FMPV-32-L1 series is available in 16A, 25A, and 32A versions. The choice depends on your system's maximum current. A 32A rating provides capacity for larger arrays and future expansion.
Why 1200V DC Matters
Solar PV systems are trending toward higher voltages to reduce cable losses and lower system costs. The 1200V DC rating of the FMPV-32-L1 series provides headroom for modern high-voltage systems and ensures compatibility with the latest inverter technology.
<8ms Arc Extinction – The Speed That Keeps Your Solar System Safe
When a DC circuit is opened under load, an electrical arc forms between the contacts. DC arcs are more difficult to extinguish than AC arcs because there is no zero-crossing point. The FMPV-32-L1 series features an arc extinction time of less than 8ms. This rapid arc extinction minimizes contact wear, extends the switch's service life, and reduces the risk of arc flash hazards.
Why Arc Extinction Time Matters
The faster the arc is extinguished, the less energy is released into the arc. This reduces contact erosion, extends the switch's life, and improves safety by minimizing the duration of the arc flash hazard.
How Rapid Arc Extinction Protects the Switch
Each time the switch opens under load, a small amount of contact material is eroded by the arc. Faster extinction means less erosion per operation, which translates to longer switch life and more reliable performance over time.
Lockable in the OFF Position – The Feature That Prevents Accidental Reconnection
The FMPV-32-L1 series features a handle that can be locked in the "OFF" position. This allows a padlock to be attached, preventing the switch from being turned back on while maintenance is in progress. Lockout/tagout (LOTO) procedures are a fundamental part of electrical safety, and a lockable isolator is essential for compliance with safety regulations.
Lockout/Tagout Compliance
For facilities that require lockout/tagout procedures, a lockable isolator is a mandatory safety device. The FMPV-32-L1 series provides a secure point for attaching a padlock, ensuring that the circuit remains isolated for the duration of the maintenance work.
Preventing Unauthorized Operation
The lockable feature also prevents unauthorized or accidental operation. Only the person who installed the lock can remove it, ensuring that the circuit is not re-energized until it is safe to do so.
IEC60947-3, AS60947.3, and DC-PV2 – Certifications That Matter for Compliance
The FMPV-32-L1 series complies with IEC60947-3 and AS60947.3 standards. It is certified for utilization categories DC-PV2, DC-PV1, and DC-21B. The switch also holds TUV, CE, and SAA approvals. These certifications provide documented compliance for insurance, regulatory, and utility requirements, ensuring the switch meets rigorous safety and performance standards.
IEC60947-3 – The International Standard for Switchgear
IEC60947-3 is the international standard for low-voltage switchgear and controlgear. Compliance ensures the switch meets global safety and performance requirements.
DC-PV2 – The Utilization Category for Photovoltaic Applications
DC-PV2 is the utilization category for photovoltaic DC applications. It specifies the switch's ability to handle the unique characteristics of PV circuits, including high DC voltages and the arcing behavior of DC circuits.
Key Specifications at a Glance
| Specification | FMPV-32-L1 Value | Why It Matters |
|---|---|---|
| Rated voltage | Up to 1200V DC | Compatible with modern high-voltage PV systems |
| Rated current | 16A, 25A, 32A | Matches your system's current requirements |
| Pole configuration | 4P | Standard for PV applications |
| Arc extinction time | <8ms | Minimizes contact wear and arc flash risk |
| Lockable OFF position | Yes | Enables lockout/tagout procedures |
| Protection level | IP20 | Suitable for indoor installation |
| Mounting | DIN rail | Quick, tool-free installation |
| Standards | IEC60947-3, AS60947.3 | International compliance |
| Utilization categories | DC-PV2, DC-PV1, DC-21B | Certified for PV applications |
| Certifications | TUV, CE, SAA | Regulatory compliance |
What Installers Ask About DC Isolator Switches
What is the maximum voltage and current rating?
The FMPV-32-L1 series is rated for up to 1200V DC with current ratings of 16A, 25A, and 32A. The 4P configuration is standard.
What is the arc extinction time?
The switch features arc extinction in less than 8ms. This rapid extinction minimizes contact wear and reduces the risk of arc flash hazards.
Can the switch be locked in the OFF position?
Yes. The handle can be locked in the "OFF" position with a padlock. This enables lockout/tagout procedures for safe maintenance.
What standards does the switch comply with?
The FMPV-32-L1 series complies with IEC60947-3 and AS60947.3 standards. It holds TUV, CE, and SAA approvals and is certified for DC-PV2, DC-PV1, and DC-21B utilization categories.
How is the switch mounted?
The switch is DIN rail mounted for quick, tool-free installation. It has an IP20 protection level, suitable for indoor installations.
Select the Right DC Isolator for Your PV System
Selecting a DC isolator switch comes down to three factors: voltage rating (match your system voltage), current rating (match your system current), and certifications (match your regulatory requirements). Contact Sofielec for a customized quote → —their team can help you select the right FMPV-32-L1 series configuration for your specific solar installation.
Sofielec manufactures a range of DC isolator switches for photovoltaic systems, including the FMPV-32-L1 series. The switch is rated for up to 1200V DC with current ratings of 16A, 25A, and 32A, and features arc extinction in less than 8ms. It is 4-pole configuration with a lockable OFF position and DIN rail mounting. The switch complies with IEC60947-3 and AS60947.3 standards and holds TUV, CE, and SAA approvals. Applications include 1-20kW residential and commercial photovoltaic systems. Sofielec provides comprehensive technical support and after-sales service. Connect with Sofielec to discuss your voltage requirements, current specifications, and certification needs.
