Application

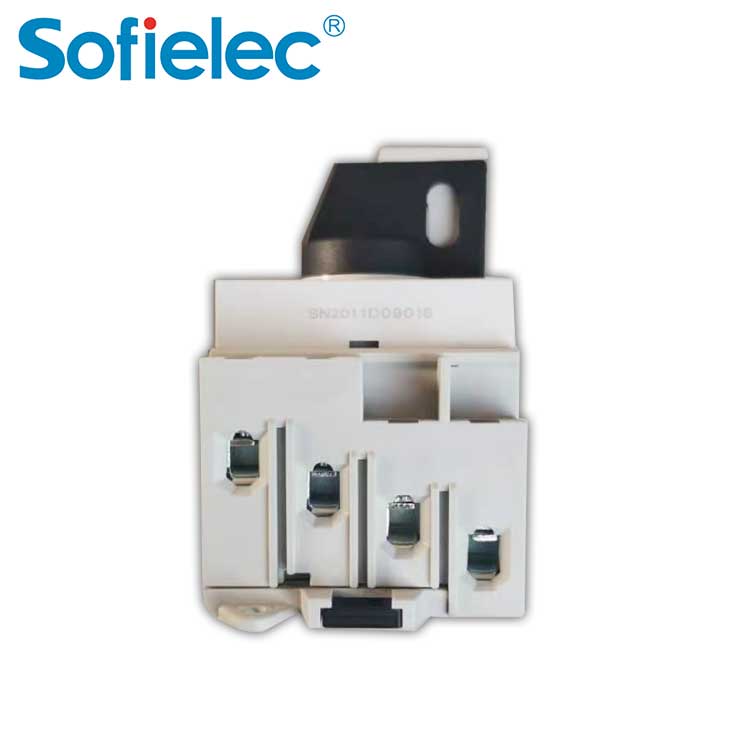

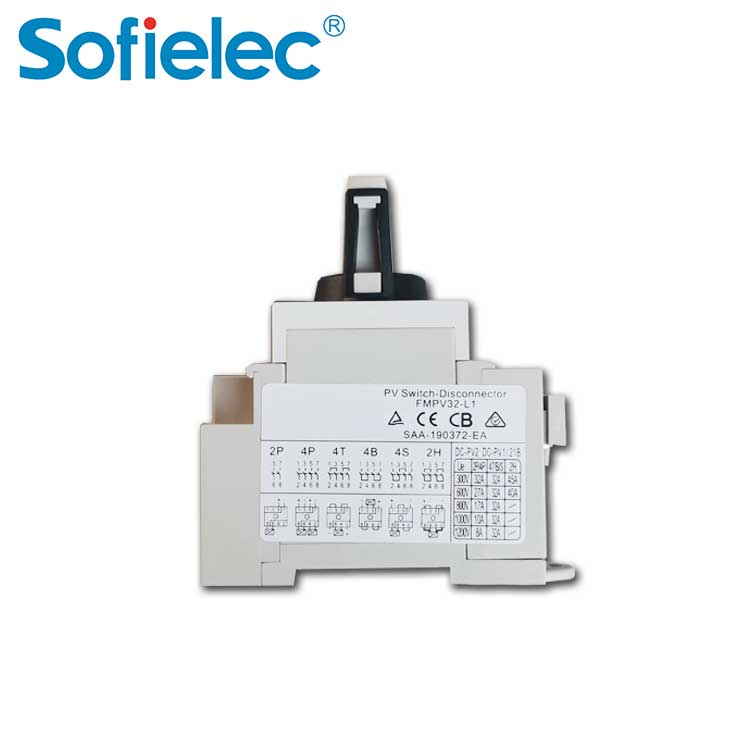

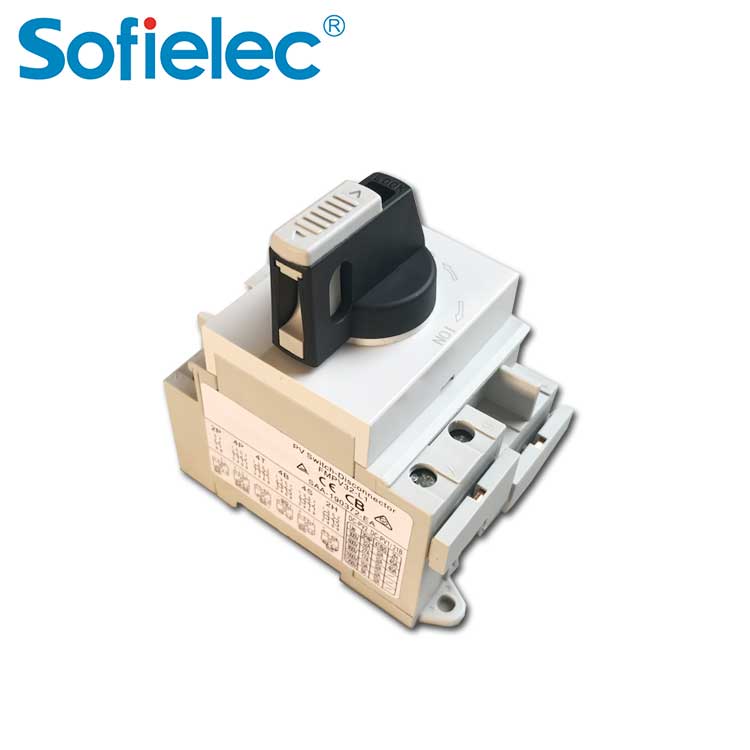

L1 Series DC Isolator Switch is applied to 1~20 KW
residential or commercial photovoltaic system, placed between photovoltage modules and inverters.Arcing time is less than 8ms, thatkeeps solar system more safe. To ensure its stability and long service life,our products are made by components with optimum quality. Max voltage is up to 1200VDC.It holds a safe lead among similar products.
Feature
● IP20 Protection Level●Din rail mounted
●The handle can be locked in the "OFF" position
●2 Pole,4 Poles are viable(Single l Double String)
●Standard: IEC60947-3,AS60947.3
●DC-PV2,DC-PV1,DC-21B
●16A, 25A, 32A,1200V DC
| Type | FMPV16-L1,FMPV25-L1,FMPV32-L1 |
| Function | lIsolator,Control |
| Standard | IEC60947-3,AS60947.3 |
|
Utilization category |
DC-PV2/DC PV1/DC-21B |
|
Pole |
4P |
|
Rated frequency |
DC |
| Rated operational voltage(Ue) | 300V,600V,800V,1000V,1200V |
|
Rated impulsed withstand voltage(Uimp) |
8.0KV |
|
Rated insulation voltage U) |
1200V |
| Suitability for isolation |
yes |
