Is an SPD Surge Protective Device Rated for 80kA Imax?
You're specifying surge protection for a low-voltage distribution panel, and the question of capacity comes up. How much surge current can the device handle before it fails? An SPD Surge Protective Device rated for 80kA Imax can absorb the high-energy surges caused by direct or nearby lightning strikes without sacrificing its protective function. The XZ-SPD80/65(60)/10 series from Sofielec delivers Imax ratings from 10kA to 80kA, with a built-in disconnector and visual status window for safe, verifiable operation. This article explains what the 80kA rating means in practice, how the disconnector ensures safe failure, and what to verify before specifying surge protection for your distribution system.
What Does the Built-In Disconnector Actually Do?
An SPD contains metal oxide varistors (MOVs) that degrade with each surge event. Eventually, the MOV reaches the end of its life and can short-circuit, creating a potential fire hazard. The built-in disconnector solves this problem. When the SPD fails due to overheating or breakdown, the disconnector automatically disconnects it from the power grid and gives an indication signal. This means the SPD fails safe — it isolates itself before it can cause damage. Without a disconnector, a failed SPD can overheat, melt its housing, or ignite nearby materials. For distribution panels in residential, commercial, and industrial buildings, this safety feature is not optional.
How the Thermal Disconnector Works
The disconnector is a thermal element that responds to the heat generated when the MOV begins to fail. As the MOV temperature rises, the disconnector activates, physically separating the SPD from the power circuit. The mechanism is designed to operate reliably even under the high temperatures that occur during a failure event.
Why Safe Failure Matters for Distribution Panels
A distribution panel is the heart of an electrical system. If an SPD fails without disconnecting, the consequences can include fire, equipment damage, and downtime. The built-in disconnector eliminates this risk by ensuring that a failed SPD becomes an open circuit rather than a short circuit.
How Does the Visual Status Window Work?
The SPD uses a visual window to display its operating status. The visual window displays green when SPD is working normally, and red when it disengages. This simple indicator allows maintenance personnel to see at a glance whether the SPD is still protecting the system. No test equipment is needed. No downtime is required to verify status. The operator simply looks at the window: green means the SPD is active, red means it has disconnected and should be replaced. This visual indication is particularly valuable for facilities with multiple distribution panels. A quick walkthrough during scheduled maintenance confirms that every SPD is still functional.
Green vs. Red: What the Indicator Tells You
Green indicates the SPD is in normal operating condition and ready to protect against surges. Red indicates the disconnector has operated, and the SPD is no longer providing protection. A red window is a maintenance trigger — replace the SPD before the next storm season or surge event.
Reducing Maintenance Time With Visual Inspection
Traditional SPDs require removing the unit or using test equipment to verify status. The visual window eliminates that step. Maintenance staff can inspect every SPD in a facility in minutes, not hours.
Technical Specifications for Surge Protection

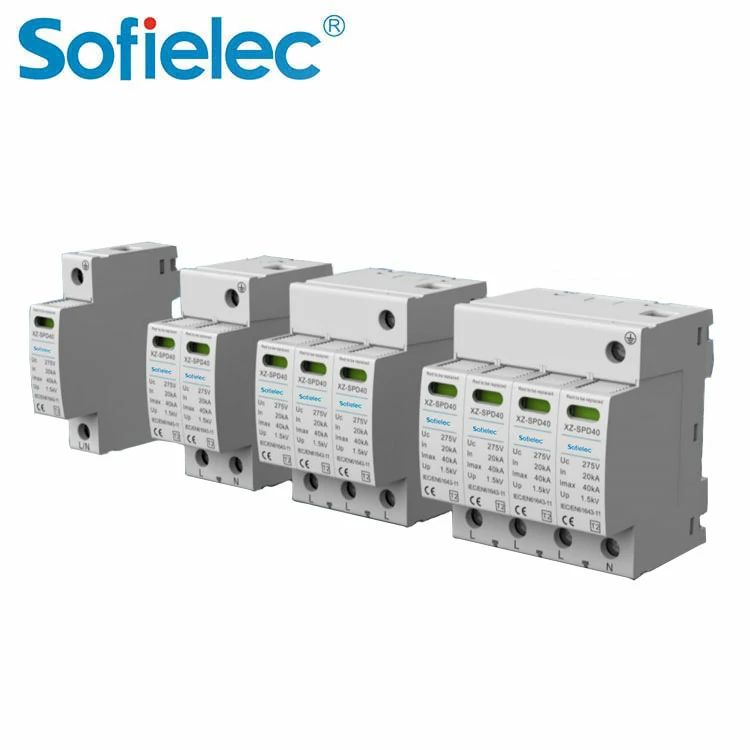

| Model | XZ-SPD80 | XZ-SPD65(60) | XZ-SPD40 | XZ-SPD20 | XZ-SPD10 |
|---|---|---|---|---|---|
| In (8/20μs) Nominal Discharge Current | 40kA | 30kA | 20kA | 10kA | 5kA |
| Imax (8/20μs) Maximum Discharge Current | 80kA | 60kA | 40kA | 20kA | 10kA |
| Uc (VAC) Max. Continuous Operating Voltage | 320-420V | 275-420V | 275-420V | 275-420V | 275-420V |
| Up (kV) Voltage Protection Level | ≤2.2kV | ≤2.0kV | ≤1.8kV | ≤1.6kV | ≤1.5kV |
| Poles | 1P, 2P, 3P, 4P | 1P, 2P, 3P, 4P | 1P, 2P, 3P, 4P | 1P, 2P, 3P, 4P | 1P, 2P, 3P, 4P |
Discharge Current Ratings Across the Series
The series covers nominal discharge currents from 5kA to 40kA and maximum discharge currents from 10kA to 80kA. The XZ-SPD80 handles the highest surge loads, making it suitable for main distribution panels exposed to direct lightning risk. The XZ-SPD10 serves smaller sub-panels with lower exposure.
Voltage Protection Level and Application
The voltage protection level (Up) ranges from ≤1.5kV to ≤2.2kV. Lower Up values indicate tighter clamping performance. The XZ-SPD10 with ≤1.5kV provides the best protection for sensitive equipment, while the XZ-SPD80 with ≤2.2kV prioritizes high discharge capacity for main panels.
Where Does a Type 2 SPD Fit in the Protection Hierarchy?
The XZ-SPD80/65(60)/10 series is a Type 2 SPD, installed at the junction of LPZ0B/LPZ1 and LPZ2. It is suitable for low-voltage AC power distribution at 50/60Hz, 230/400V and below, in IT, TT, TN-C, TN-S, and TN-C-S systems. The SPD is connected in parallel on the power line for equal potential when lightning strikes. It protects low-voltage customer electrical installations from surges caused by atmospheric discharge or other operating instantaneous overvoltages. The XZ-SPD40 model is installed in the line of low-voltage main distribution cabinets, protecting secondary power supply equipment. It is used in distribution cabinets vulnerable to lightning, elevator, fire control, network equipment, computer and telecom equipment rooms, cable TV rooms, villa and village resident distribution boxes.
Installation Requirements
The SPD is installed on a 35mm standard guide rail with 2.5-35mm copper multi-stranded wire. Each front pole must be connected in series with an XZSCB series surge backup protector or fuse. The XZ-SPD20 model is installed at the end of the upline, connecting the outer lead or neutral lead to the grounding device.
System Compatibility
The SPD is compatible with IT, TT, TN-C, TN-S, and TN-C-S power supply systems. This broad compatibility means one product family covers most low-voltage distribution configurations found in residential, commercial, and industrial facilities.
Answers to Common Questions About Surge Protective Devices
What is the difference between Type 1 and Type 2 SPDs?
Type 1 SPDs are installed at the main service entrance and handle direct lightning currents. Type 2 SPDs, like the XZ-SPD80/65(60)/10 series, are installed at distribution panels and handle surges caused by indirect lightning or switching operations. Type 2 SPDs are characterized by their capacity to discharge current with an 8/20μs waveform.
How do I know when to replace the SPD?
The visual window displays green when the SPD is working normally and red when it disengages. A red window indicates the disconnector has operated and the SPD is no longer providing protection. Replace it promptly to restore surge protection.
What standards does the SPD comply with?
The SPD complies with GB 18802.1, GB50057, and IEC/EN61643-11 standards. These cover the performance requirements, testing methods, and safety criteria for low-voltage surge protective devices.
What maintenance does the SPD require?
The SPD requires no routine maintenance beyond visual inspection of the status window. During scheduled maintenance, verify that the window is green. If red, replace the SPD. Check that the connections remain tight and the disconnector has not operated.
Request an SPD Configuration for Your Distribution System
An SPD Surge Protective Device with a built-in disconnector, visual status window, and 20-80kA discharge capacity is the practical choice for low-voltage distribution systems that need reliable surge protection. The XZ-SPD80/65(60)/10 series from Sofielec delivers In 5-40kA, Imax 10-80kA, built-in disconnector with automatic disconnect on failure, visual green/red status window, IEC/EN61643-11 compliance, 35mm DIN rail mounting, and compatibility with IT, TT, TN-C, TN-S, and TN-C-S systems.
The global surge protection devices market was estimated at USD 2.39 billion in 2025 and is projected to reach USD 2.68 billion by 2032. As electrical systems become more sensitive and lightning activity increases, surge protection is moving from optional to essential in residential and commercial installations.
Whether you're protecting a main distribution panel, a sub-panel, or sensitive equipment in a telecom room, this SPD offers the discharge capacity, safe failure mode, and visual indication that modern electrical systems demand. With multiple models covering 5kA to 80kA, it adapts to your specific protection requirements.
Contact Sofielec for an SPD configuration assessment → their team can help you select the right model, pole configuration, and backup protection for your specific distribution system. Get an SPD Surge Protective Device that fails safely and shows you when it needs attention — so your system stays protected.
