Does a Float Switch Need IP68 for Hot Water?

You're specifying a level control device for a hot water tank or a process vessel. The water isn't boiling, but it's hot enough to stress standard components. A Float Switch rated for 60°C maximum operating temperature handles this range without compromising sealing or switching reliability. The HT-M15-18 from Sofielec combines IP68 protection with AC 110/220V switching capability, making it suitable for water supply, drainage, and liquid level control applications where heat and moisture are constant companions. This article explains what the 60°C rating means for material selection, how IP68 sealing protects the internal switch mechanism, and what to verify before specifying a level control device for your tank or pump system.

How IP68 Sealing Protects Submerged Components

IP68 is the highest common ingress protection rating. The "6" means the enclosure is dust-tight—no particles can enter. The "8" means it can withstand continuous immersion in water under conditions specified by the manufacturer. For a level control device installed inside a tank, this rating is not optional. The device sits in water, sometimes hot water, for extended periods. Without proper sealing, moisture would reach the internal switch mechanism, causing corrosion, contact failure, or erratic operation. The HT-M15-18 achieves IP68 through a sealed housing that isolates the electrical components from the surrounding liquid. The cable entry is sealed, and the float body is constructed to prevent water ingress even under continuous immersion. This is why the device can operate reliably in sump pits, water tanks, and drainage systems where the switch is submerged for most of its service life.

Magnetic Coupling Eliminates Dynamic Seals

The housing uses a two-part construction with an O-ring or gasket seal at the joint. The cable exits through a sealed gland that compresses around the cable jacket, preventing water from wicking into the housing. The float mechanism itself is magnetically coupled, so there's no mechanical penetration through the housing wall—the switch inside is actuated by the magnetic field of the float, not by a physical linkage that would require a dynamic seal.

What IP68 Means for Maintenance

A device with IP68 protection requires less frequent inspection because the internal components are shielded from moisture and contaminants. In clean water applications, the switch can operate for years with minimal attention. In dirty water or sewage applications, the exterior may accumulate debris, but the internal mechanism remains protected.

Why 60°C Is the Upper Limit for Hot Water Service

The 60°C maximum operating temperature is a material specification. At higher temperatures, plastics soften, seals lose elasticity, and the magnetic coupling may weaken. The HT-M15-18 is designed for water temperatures up to 60°C—a range that covers domestic hot water tanks, solar water heating systems, and many industrial process vessels. If the water temperature exceeds this limit, the housing material may deform, compromising the IP68 seal. The float may lose buoyancy if the plastic softens. And the internal switch mechanism may fail prematurely. The 60°C rating is not a suggestion; it's the upper limit for reliable operation.

Thermoplastic Housing Maintains Buoyancy at 60°C

The float body is typically made from PP (polypropylene) or a similar thermoplastic that maintains its shape and buoyancy at 60°C. The cable insulation is selected to resist hardening or cracking at this temperature. The internal switch contacts are rated for the electrical load and the thermal environment inside the sealed housing.

What Happens Above the Temperature Limit

Above 60°C, the risk of failure increases rapidly. The housing may soften and deform, breaking the seal. The float may sink or lose its ability to pivot freely. The switch contacts may pit or weld. For applications above 60°C, a different device with a higher temperature rating is required.

Key Electrical and Environmental Ratings

Electrical Ratings and Load Capacity

The AC 16(4)A rating indicates the switch can handle 16 amps at 250V AC or 4 amps at 380V AC, depending on the circuit configuration. This capacity covers typical pump and valve loads in water supply and drainage systems. The 50/60Hz frequency range makes the device suitable for both North American and international power systems.

Physical Configuration and Mounting

The HT-M15-18 is a cable-type float switch. The float is attached to a cable that suspends it at the desired switching level. As the liquid level rises or falls, the float pivots, actuating the internal switch through magnetic coupling. The cable length and mounting point determine the switching differential and the high/low level setpoints.

Applications in Supply, Drainage, and Process Vessels

The HT-M15-18 serves applications where reliable liquid level control is essential:

Water Supply and Drainage Control

In water supply systems, the switch turns pumps on when tank level drops and off when the tank is full. In drainage systems, it activates pumps when water rises to a set point and deactivates them when the level falls. The IP68 rating allows the switch to operate submerged in sump pits and wet wells.

Domestic and Commercial Hot Water Tanks

Hot water tanks, solar water heaters, and commercial boiler systems use level switches to maintain water levels and prevent dry running. The 60°C rating covers the water temperatures in these applications.

Industrial Process Vessels

Many industrial processes involve water or water-based solutions at temperatures up to 60°C. The HT-M15-18 provides reliable level control in these environments without requiring a more expensive high-temperature device.

Answers to Common Installation and Operation Questions

What does the 16(4)A current rating mean?

The switch can carry 16 amps at 250V AC or 4 amps at 380V AC. The rating in parentheses indicates the current capacity at the higher voltage. This is a standard notation for switches that are rated for two different voltage/current combinations.

Can the switch be used in drinking water?

The materials used in the HT-M15-18 are suitable for water contact, but for potable water applications, you should verify that the specific materials meet local health and safety regulations. Many float switches use PP and other food-grade plastics, but certification requirements vary by region.

How is the switch installed?

The cable-type float switch is suspended from a mounting point above the liquid. The cable length determines the switching level. The float must be free to pivot without obstruction. Installation instructions should be followed to ensure correct orientation and switching differential.

What maintenance does the switch require?

In clean water applications, maintenance is minimal. In dirty water or sewage, the float and cable should be inspected periodically for debris accumulation that could restrict movement. The IP68 housing protects the internal mechanism, so cleaning the exterior is usually sufficient.

Get a Level Control Device for Your Tank or Pump

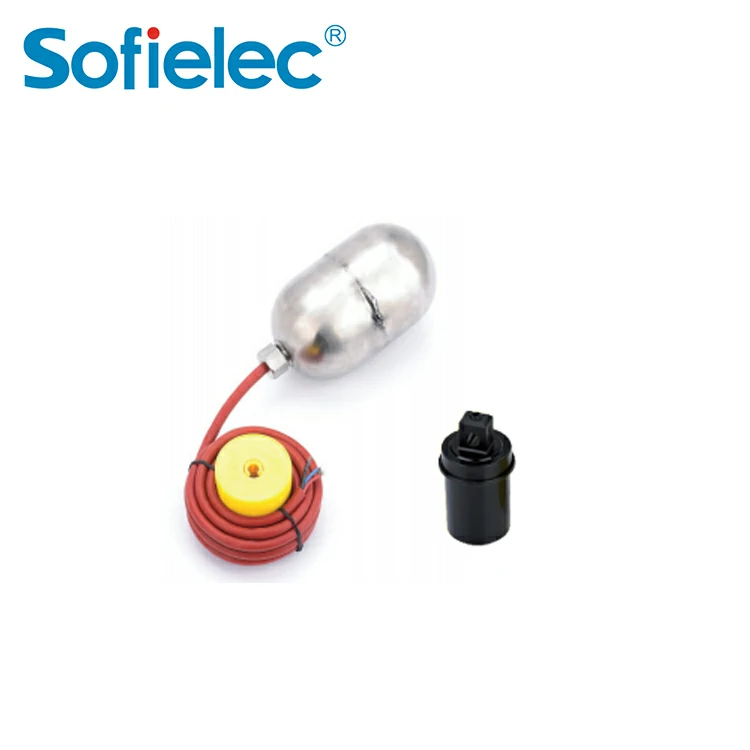

A Float Switch with IP68 sealing, AC 220V rating, and 60°C water temperature tolerance is the practical choice for water supply, drainage, and hot water tank applications. The High Quality IP68 AC 220V HT-M15-18 FLOAT SWITCH from Sofielec delivers IP68 protection for continuous immersion, AC 110/220V rated voltage, AC 16(4)A maximum current, 50/60Hz frequency, and 60℃ maximum operating temperature.

Whether you're equipping a domestic water tank, a commercial drainage system, or an industrial process vessel, this switch offers the environmental protection and electrical capacity that reliable level control demands. The magnetic coupling design eliminates dynamic seals, reducing wear and extending service life.

Contact Sofielec for a level control configuration assessment → their team can help you select the right model, cable length, and mounting arrangement for your specific tank or pump system. Get a Float Switch that handles hot water and harsh conditions—so your level control stays reliable.
