| Categories | Electrical Distribution Box |
| material | metal |
| Product name | 8 way distribution box |
| Certificate | CE |
| Standard | IEC60898 |
| Rated voltage | 230/400V |
| inside intallation | terminal |
| IP grade | IP20 |
| Rated frequency | 50/60 Hz |
| Mounting ways | screw mounting on the wall |
| weisite | www.sofielec.com |

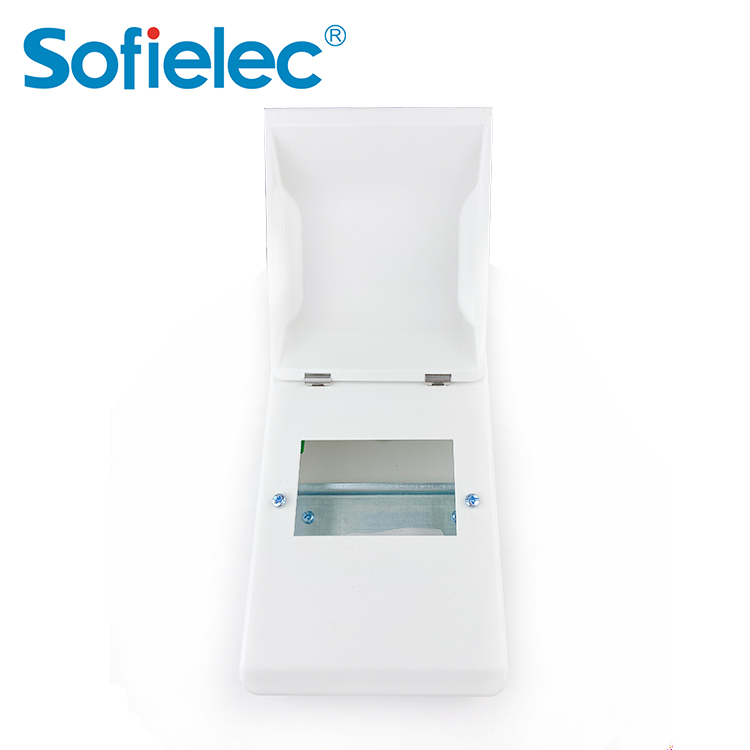

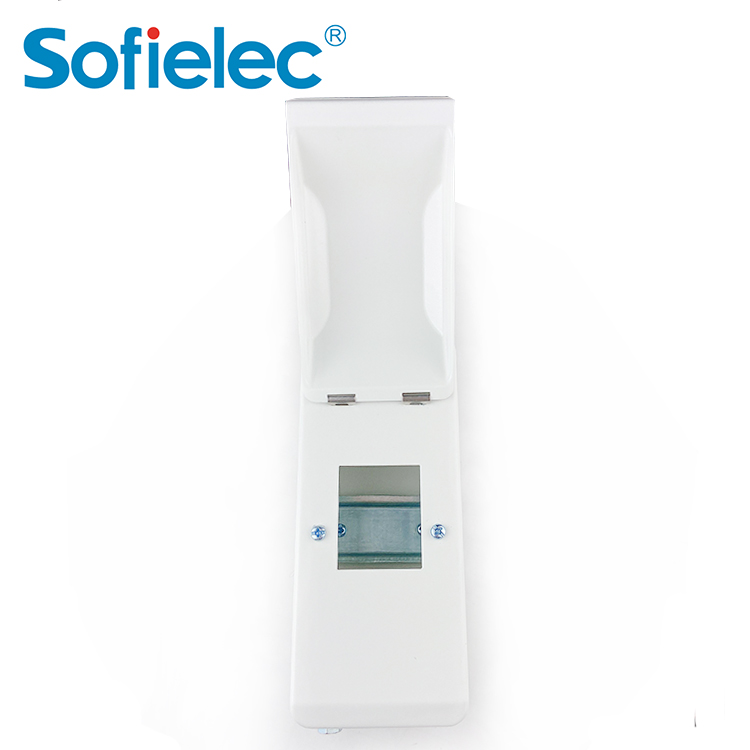

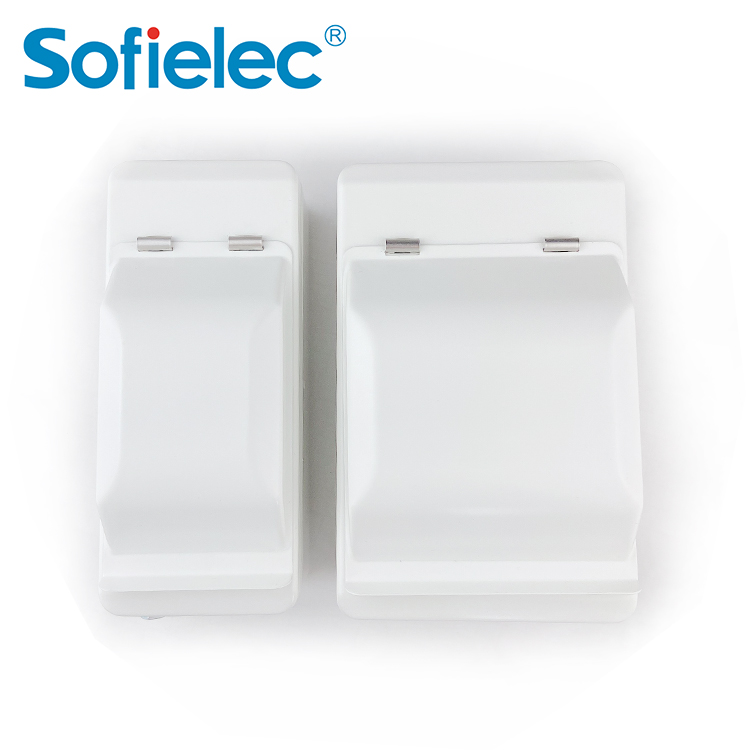

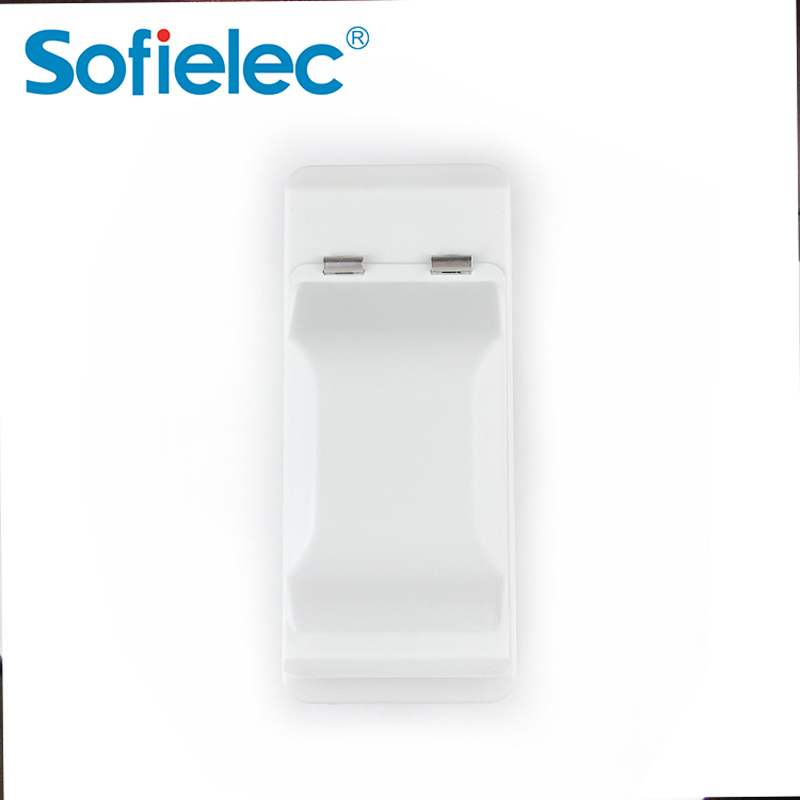

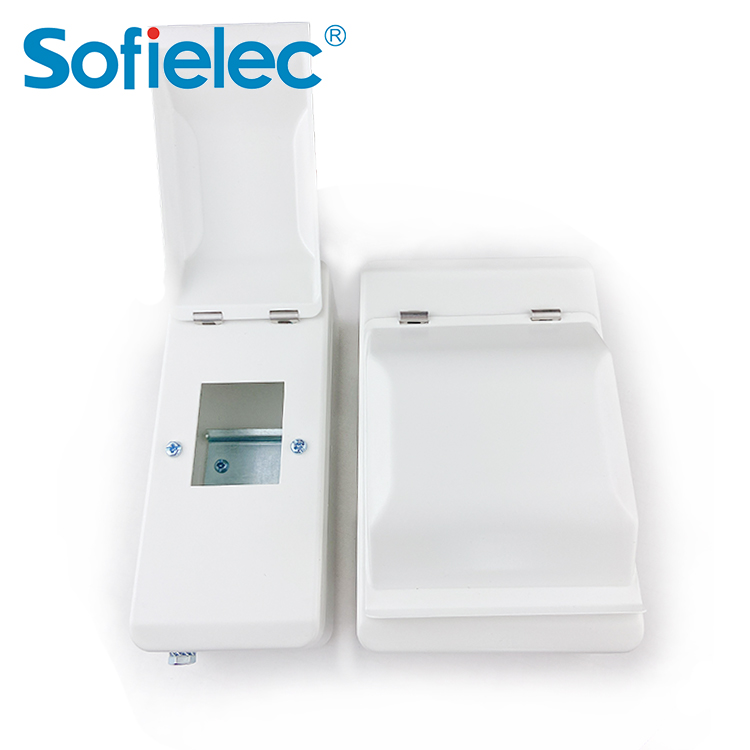

Product picture
General Characteristics
2MEC Series Metal consumer unit is designed for safe, reliable distribution and
control of electrical power as service entrance equipment in residential, commercial
and light industrial installations. It had reasonable design and economic cost.
1. Manufactured from powder coated sheet steel with Epoxy polyester coating.
2. Neutral & Earth terminal link bars assembled.
3. Preformed cables or Flexible wires connected on Ferruled terminals.
4. IP40 standard suit to indoor use only.
5. Standard: EN 60989 & EN 61008.
Technical Data
|
Metal clad Modular Enclosure Dimensions(mm) |
|||
|
Part No. |
Height |
Width |
Depth |
|
MEC2 |
145mm |
80mm |
62mm |
|
MEC2M |
145mm |
80mm |
62mm |
|
MEC4 |
225mm |
115mm |
62mm |
|
MEC4M |
240mm |
130mm |
85mm(105mm inc lid) |

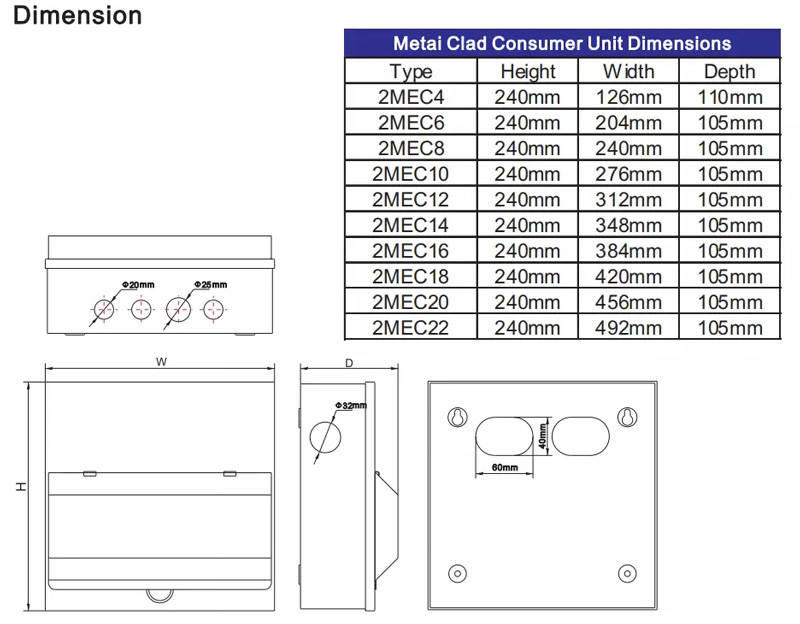

Dimension
