Overview



An important part of the safe operation of ZJ-2G compact fixed high-voltage cabinet is to be able to achieve the upper and lower isolation switches, the grounding switch can operate in strict accordance with the operating procedures, and at the same time, it must have a perfect interlocking device (mainly mechanical) to prevent misoperation. Complete and reliable, the program operating mechanism can well meet the above requirements, completely avoid misoperation, and provide the easiest and most reliable way to provide electrical system intelligence for all-electric operation of fixed switchgear.





Product model description



Model Opening Operation Instructions
CDXJ-1 isolating switch Only operate the isolating switch > open the cabinet door
CDXJ-1B isolating switch circuit breaker Sub-circuit breaker>Sub-disconnect switch>Open cabinet door
CDXJ-2 isolating switch with ground Disconnect isolation switch>Close isolation switch grounding>Open cabinet door
CDXJ-2B Disconnector with grounding circuit breaker Disconnecting circuit breaker > Disconnecting switch > Grounding disconnecting switch > Open cabinet door
CDXJ-3 earth switch Only operate the grounding switch > open the cabinet door
CDXJ-3B Grounding switch circuit breaker Disconnector>Close the grounding switch>Open the cabinet door
CDXJ-6 Upper isolating switch lower earthing switch Sub-circuit breaker> sub-up disconnect switch> grounding switch> open cabinet door
CDXJ-8 The upper and lower isolation switches enter the line Sub-circuit breaker>sub-down isolating switch>sub-up isolating switch>open cabinet door
CDXJ-9 The upper and lower isolation switches enter the line from the bottom Sub-circuit breaker>Sub-up isolating switch>Sub-bottom isolating switch>Open cabinet door
CDXJ-10 The upper isolation belt is grounded and the lower isolation switch enters the upper line Sub-circuit breaker> sub-isolating switch> sub-up isolating switch> close the isolation grounding> open the cabinet door
CDXJ-11 The upper isolation belt is grounded and the lower isolation switch enters the line Sub-circuit breaker> sub-isolating switch> sub-up isolating switch> close the isolation grounding> open the cabinet door
CDXJ-12 Upper isolating switch bottom isolating belt grounding upper incoming line Sub-circuit breaker> sub-isolating switch> sub-up isolating switch> close the isolation grounding> open the cabinet door
CDXJ-13 Upper isolating switch bottom isolating belt grounding bottom incoming line Sub-circuit breaker> sub-isolating switch> sub-up isolating switch> close the isolation grounding> open the cabinet door
CDXJ-15 The upper isolation belt is grounded The lower isolation belt is grounded and the upper incoming line Sub-circuit breaker> sub-isolating switch> sub-up isolating switch> close the isolation grounding> close the isolation grounding> open the cabinet door
CDXJ-16 The upper isolation belt is grounded The lower isolation belt is grounded and the incoming line is under the ground Sub-circuit breaker>Sub-up isolation switch>Sub-down isolation switch>Close isolation grounding>Close isolation grounding>Open cabinet door
CDXJ-17 Upper isolation belt grounding lower grounding switch Disconnect circuit breaker > Disconnect disconnect switch > Close isolation grounding > Close grounding > Open cabinet door

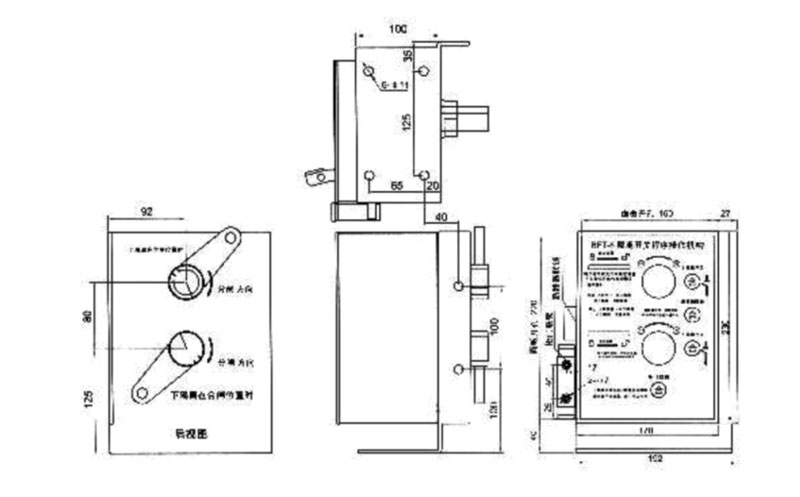

Shape and installation dimensions
