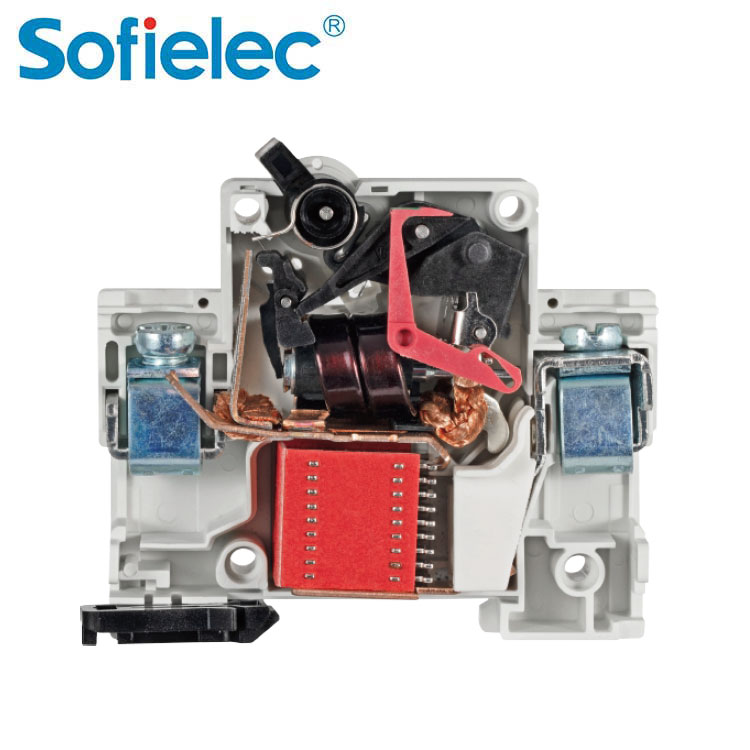

125 Amp MCB Construction and Feature
■High short-short capacity 10KA.
■Designed to protect circuit carrying big current up to 125A.
■Contact position indication.
■Supplied from MCB factory For Used as main switch in household and similar installation.
Electrical MCB Technical Data
■Pole No.: 1, 2, 3, 4
■Rated voltage: AC 230V/400V
■Rated Current(A): 63, 80, 100
■Tripping curve: C, D
■Rated short-circuit capacity(lcn): 10000A
■Rated service short-circuit capacity(Ics): 7500A
■Rated frequency: 50/60Hz
■Rated impulse withstand voltage: 6.2kV
■Electro-mechanical endurance: 10000
■Connection capacity:
□Flexible conductor 50mm2
□Rigid conductor 50mm2
■Installation:
□On symmetrical DIN rail 35.5mm
□Panel mounting
125 Amp MCB Compliance
■IEC60947-2
■EN60947-2

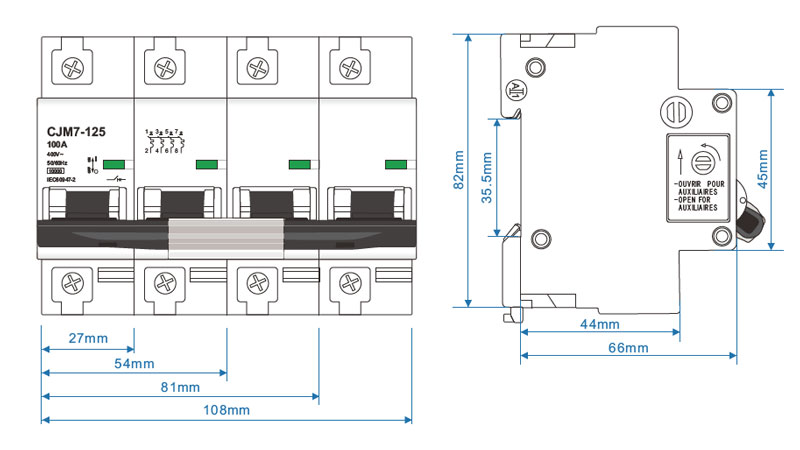

Overall & Installation 125 Amp MCB Dimensions

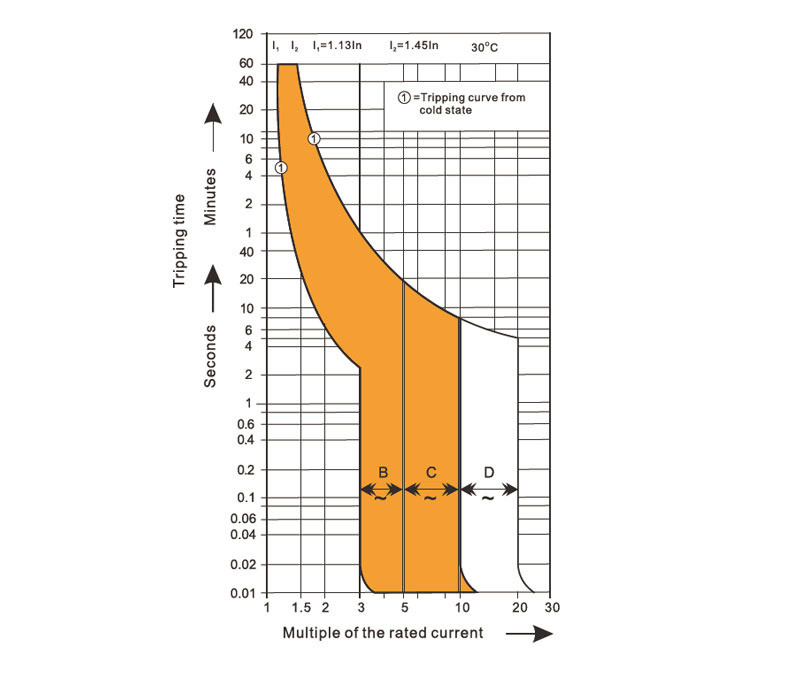

Electrical MCB Tripping Characteristic Curves
