Categories Wi-Fi MCB
Model WIFI MCB 1P 3P
Conforming to standard GB 10963. l;IEC60898-1.
Rated voltage AC 230V 1P 2P. AC 400V 3P 4P.
Frequency 50Hz

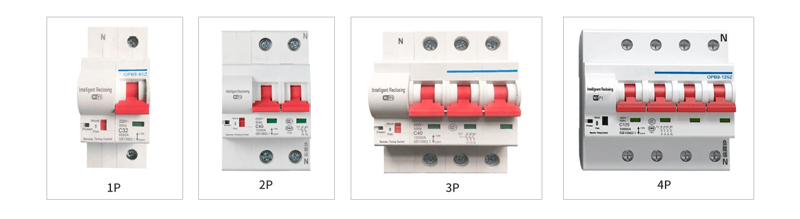

Quantity: 1P 2P 3P 4P
Class of pollution 2style
Protection grade IP20
Rating current of shell frame 125A
Rated curret 32A. 40A. 63A. 80A. 100A. 125A.
Rated shon eincuit brcuking capacity 6kA
ARated impact tolerance voltage 6kV
 INTELLIGENT WIFI RECLOSER CIRCUIT BREAKER
Smart High Technology Series Circuit Breaker WIFI MCB
 Application
Intelligent remote control of Household, Dornitory,Enterprise, Project, Farm, Street light, Pump, ground
heater, water heater, etc.

Connect the zero lines of product and distribution systemwhen using 1P and 3P products.

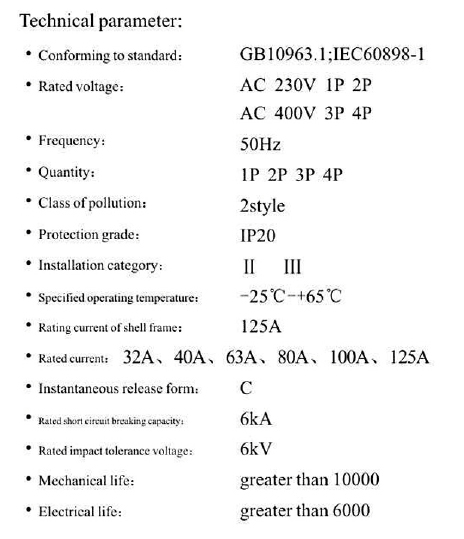

Technical parameter&Wiring diagram

Technical parameter
Wiring tool Cross screwdriver
Word screwdriver
Wiring capacity mm 50mm²
Tightening torque Nm 2.5Nm

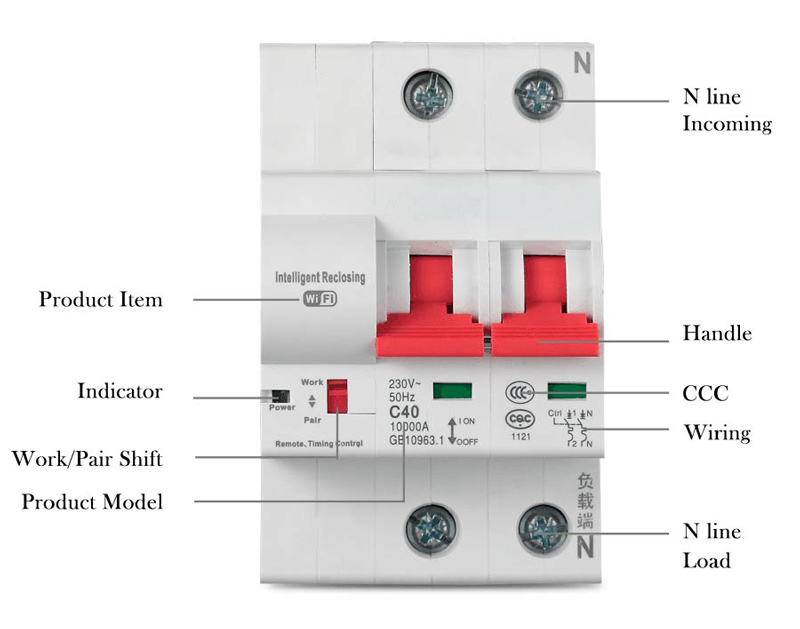

STRUCTURE
Smart High Technology Series Circuit Breaker WIFI MCB

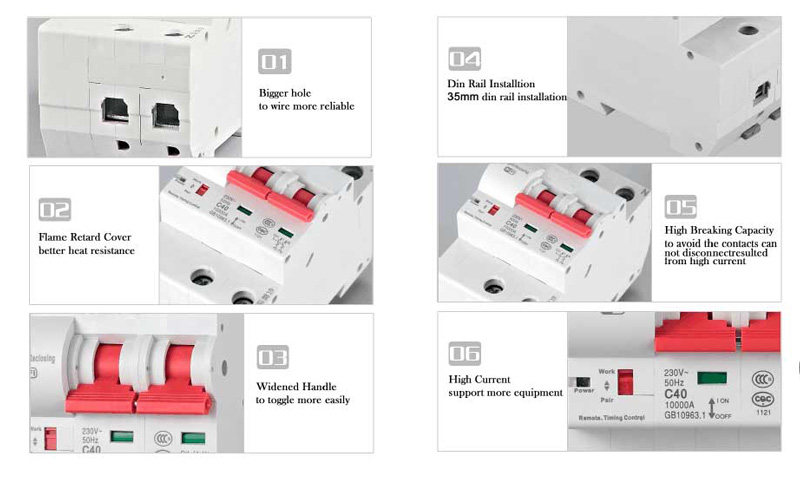

ADVANTAGES
Smart High Technology Series Circuit Breaker WIFI MCB

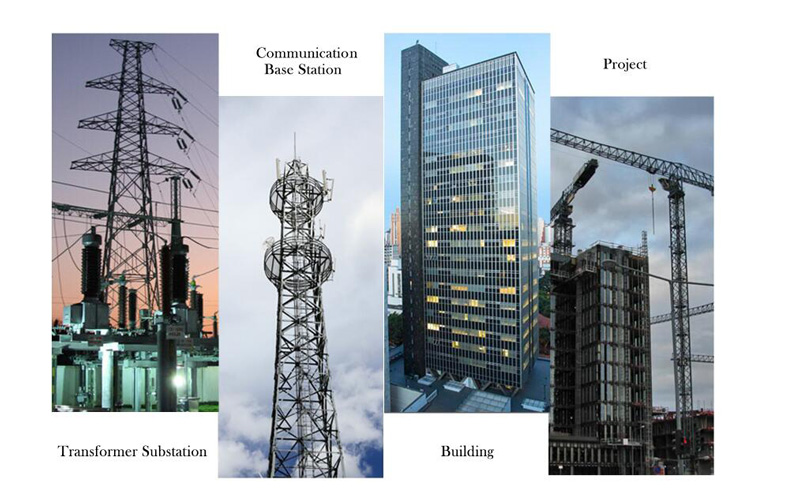

Application
application:Transformer Substation,Communication Base Station,Building,Project
