ZHRA2-A,B,D Motor Protector relay

ZHRA2-A,B,D Motor Protector relay
ZHRA2-A,B,D Motor Protector relay

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

Categories Motor Protector Relay
Rated control supply voltage AC380V. AC220V. 50Hz/60Hz
Contact capacity Ith:5A;AC-15;Ue/Ie 380V/0.95A 240V/1.5A
Setting mode Button setting
IP Class IP20
Use category AC-15
Starting avoid time 2s~ 120s adjustable
Tripping class 1、2(10A)、 3(10)、 4(20)、5(30)
Protection Overload, current unbalance, phase loss, temperature
Convertion time 2s~ 900s adjustable
Current unbalance rate 20%~ 90% adjustable
Function



Applications

Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection  of  over-voltage,  under  voltage, phase failure, phase sequence and phase unbalance. When the power  supply is abnormal, turn off power supply to protect the equipment.

Features

Built-in microprocessor,current measurement accuracy ≤2%.Button setting,double LED digital display. With three-phase current inquiry and protectionof overload, phase failure, unbalance and temperature. Support power-offself-staring, two-speed motors, star-delta starter.No-load start,protection of any phase loss or overload.No contact protection.

Rated control supply voltage AC220V、AC380V 50Hz/60Hz
Setting mode Button stting
Starting avoid time 2s~ 120s adjustable
Tripping class 1.2(10A)、 3(10)、 4(20)、 5(30)
Protection Overload, crrent unbalance, phase loss, temperature
Convertion time 2s~900s adjustable
Current unbalance rate 20% ~90% adjustable
Ground temperature protection support temperature protection with temperature switch
Definite time protection Closable, open with overload ratio 1.2- 6.0 adjustable, protection action time 1s - 9s adjustable
Self- satart after outage Closable, open with 1s ~900s adjustable
Contact capacity Ith: 5A; AC-15: Ue/le 380V/0.95A 240V/1.5A
Use category AC-15
IP Class IP20
Insallation Screw mounting



Wiring Diagram

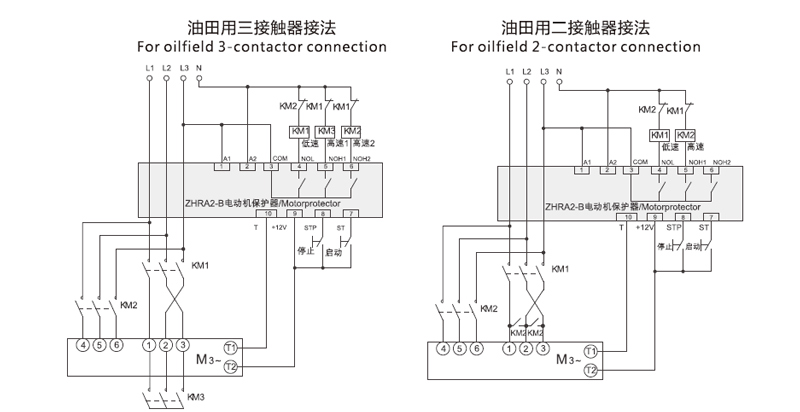

Wiring Diagram:For oilfield 3-contactor connection,For oilfield 2-contactor connection

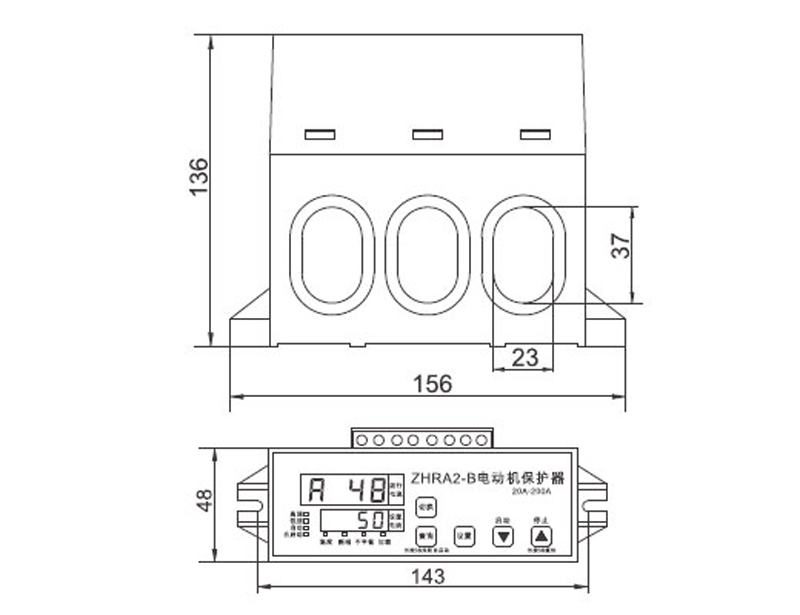

Dimensions
