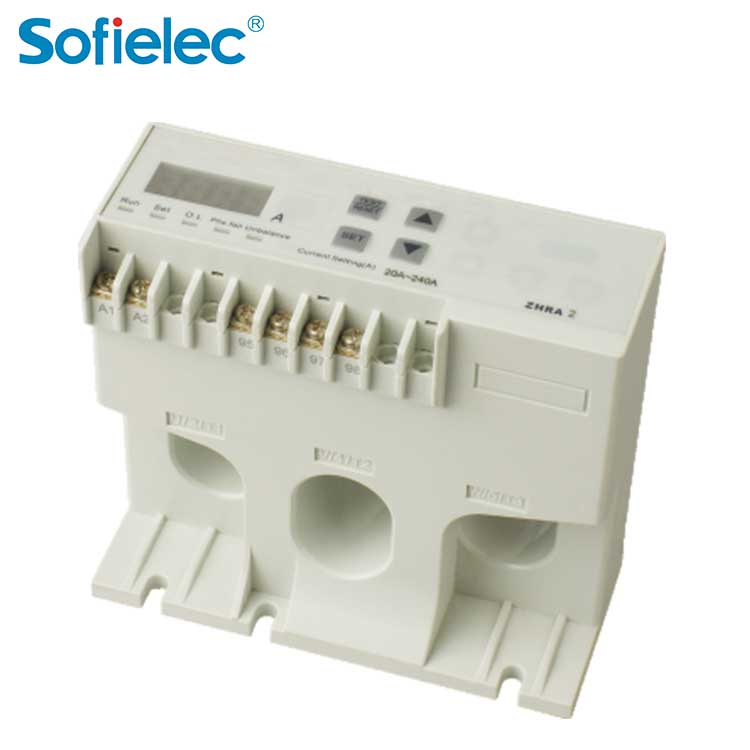

ZHRA2 (S) Motor Protector relay

ZHRA2 (S) Motor Protector relay
ZHRA2 (S) Motor Protector relay
ZHRA2 (S) Motor Protector relay

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

Function

Categories

Motor Protector Relay

Rated control supply voltage

AC380V. AC220V. 50Hz/60Hz

Rated insulation voltage

AC690v

Contact capacity

Ith:5A;AC-15;Ue/Ie 380V/0.95A 240V/1.5A

Current measurement accuracy

≤2%

Number of poles

3P

IP Class

IP20

Use category

AC-15

Altitude

≤2000m

Coordination type

2

Power consumption

≤1.5VA



Applications

Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection  of  over-voltage,  under  voltage, phase failure, phase sequence and phase unbalance. When the power  supply is abnormal, turn off power supply to protect the equipment.



Features

Built-in microprocessor,current measurement accuracy ≤2%.Button(dialbutton)setting,digital tube display current values.With phase failure,overload,unbalance,syall protecting,four optional trip classes.No-load start,protection of any phase loss or overload.No contact protection.

Rated supply voltage AC380V、AC220V 50Hz/60Hz
Current measurement accuracy ≤2%
Display mode Digital tube display
setting mode Button setting
Rated working voltage AC380V
Number of poles 3P
Rated insulation voltage AC690V
IP Class IP20
Coordination type 2
Type and set of contacts 95 ---  96   97-----98
Contact capacity Ith: 5A; AC-15 : Ue/le 380V/0.95A 240V/1.5A
Use category AC-15
Electrical life

105

Mechanical life

106

Altitude ≤2000m
Allowable relative humidity ≤50%(40°C)(No condensation)
Power consumption ≤1 5VA
Insallation Screw or DIN rail mounting

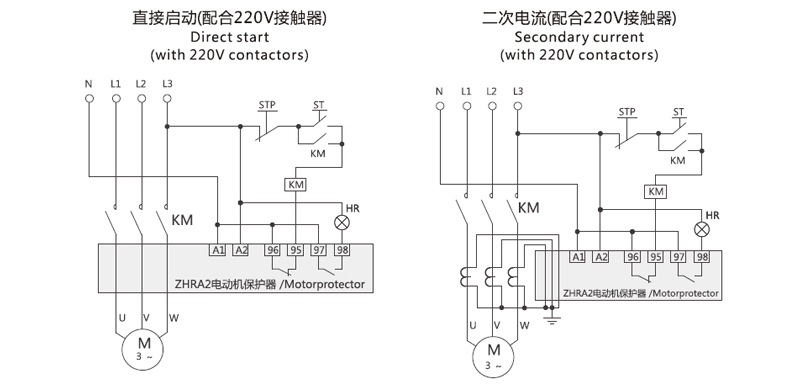

Wiring Diagram

Wiring Diagram:Direct start(with 220V contactors),Direct start(with 380V contactors)

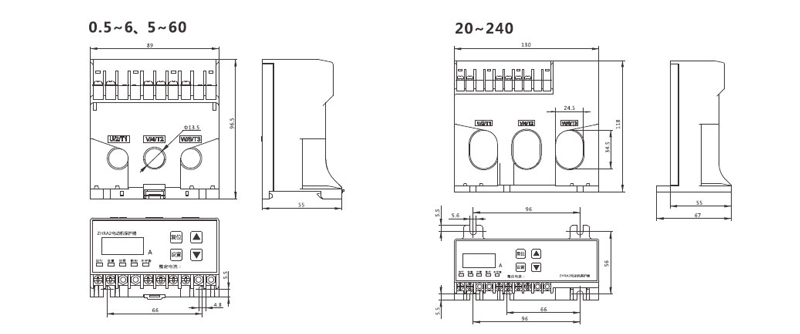

Dimensions

Dimensions:0.5~6、5~60,20~240
