What you want to know about circuit breakers

Publish Time: Author: Site Editor Visit: 52

What is the difference between 6kA and 10kA MCB?

The main difference between the two is their capacity, with the MCB rated under 100 amps with an interrupting rating of under 18,000 amps.

What is kA On breaker?

So what is the kA rating? The value of the kA rating determines how much current the circuit breaker can withstand under fault conditions. For example, a value of 6kA means that the circuit breaker can withstand 6,000 amps of current during the brief time it takes to trip.

What is the kA rating on circuit breakers?

kA rating of an MCB or an MCCB is the maximum current it can safely interrupt in case of a short circuit. If the current goes beyond this value, the circuit breaker could be damaged. kA rating is known as the short circuit withstand capacity or ultimate breaking capacity of a circuit breaker.

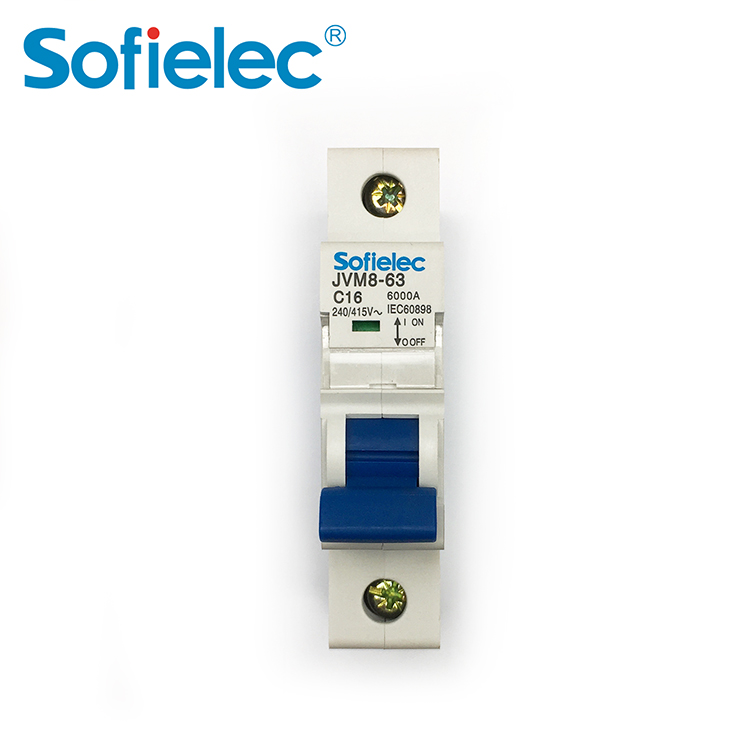

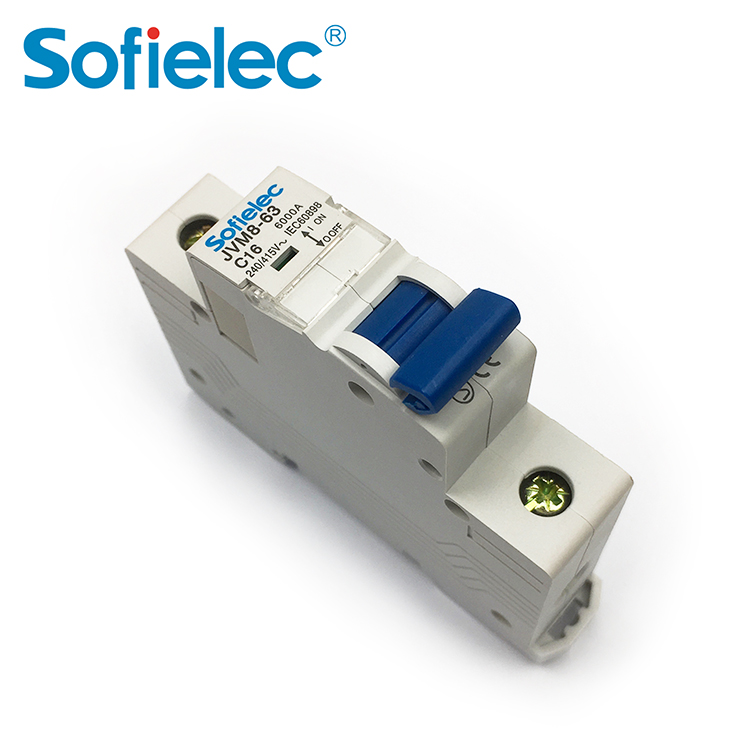

What is the current rating of MCB?

The MCBs used in domestic installations are usually rated at 6000 amps or 6kA. SO the relationship between a typical domestic appliance rating and normal voltage (240v) allows that the over-current occurring as a result of short circuit should not exceed 6kA.

What is the fault current rating?

This rating (in amps) is the equipment’s ability to withstand high levels of current that will flow on the grounded metal of the equipment should a short-to-ground or other fault occur. The equipment must be able to withstand this “fault current” without experiencing a meltdown, explosion, or similar catastrophe.

What are the standard circuit breaker sizes?

Standard sizes for fuses and fixed trip circuit breakers, per 240.6, are 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100, 110, 125, 150, 175, 200, 225, 250, 300, 350, 400, 450, 500, 600, 700, 800, 1000, 1200, 1600, 2000, 2500, 3000, 4000 5000, and 6000 amps.

How do I know what size breaker I need?

To calculate the breaker size, simply divide the adjusted wattage by 240 volts to find the rated amperage needed for your subpanel. Often, the result is not a common circuit breaker size. and you can simply round up to the next higher size of ​the breaker.



How do you size a main breaker?

The general rule of thumb is that circuit breaker size should be 125% of the ampacity of cable and wire or the circuit which has to be protected by the CB. Let see the following solved examples: Example 1: Suppose, a 12 gauge wire is used for 20 amperes lighting circuit having 120V single phase supply.

Should kitchen plugs be 15 or 20 amp?

Requirement: Provide at least two 20-amp, 120-volt circuits to supply power to GFCI (Ground Fault Circuit Interrupter) Why: The 20 amps are required (vs. 15 amp) for the higher power requirements found in kitchens. Think toaster ovens, blenders, and mixers.

Does a fridge need a 20 amp circuit?

Refrigerator Circuit A modern refrigerator requires a dedicated 20-amp, 120/125-volt circuit. You may currently have a smaller refrigerator plugged into a general lighting circuit, but during any major remodeling, a dedicated 120/125-volt circuit for the refrigerator should be installed.

Should bathroom outlets be 15 or 20 amp?

The minimum requirement for outlet receptacles in a bathroom is one GFCI-protected receptacle served by a 20-amp circuit. This is a bare minimum, however, and most bathrooms will have at least two receptacles, and often as many of four or five.

Can I put a 20 amp fuse in a 15 amp slot?

The 15 amp slot is designed for handling current upto 15 amps so if you put a 20 amp fuse in a 15 amp slot and draw a current greater than 15 amps there will be heating and other issues like molten insulation you can put a 20 amp fuse only if u know that u are not going to draw more than 15 amps.

Is it OK to replace a 15 amp outlet with a 20 amp?

Using a 15A switch on a 20A circuit is potentially dangerous though: the circuit may draw up to 20A, but the switch will be overloaded at that point which may cause it to overheat/melt/start a fire

How do you calculate kA rating?

The maximum amount of current that can flow through a circuit is determined by the size of the transformer feeding the circuit and the length of the cable run from the transformer. This is often called the downstream short circuit current. This will determine the maximum kA rating required for the main circuit breaker.

How is Mccb rating calculated?

For 415v, 3phase, 22kw rating of motor how to calculate MCCB rating ? Convert KW to HP (KW/0.75), multiply it by 1.5 gives you the rated current. Multiply it by 1.5 for breaker value.

How is kA rating calculated in Mccb?

For NS 100 N, 100A MCCB at 440V, Short-Circuit Breaking Capacity (Icu) = 35 KA then, Icm = 2.1 x Icu = 73.5 KA. Note: According to the IEC 60947-2, if the Rated Making capacity (Icm) is equal to the value specified in the IEC paragraph 4.3.

What is the current rating of MCCB?

2500 amps

What is difference between Rccb and MCB?

RCCB stands for Residual Current Circuit Breaker. It is the safest device to detect and trip against electrical leakage currents, thus ensure protection against electric shock caused by direct contacts. RCCB is generally used in series with an MCB which protects them from over current and short circuit current.

What are Type C breakers used for?

Type C MCBs Type C circuit breakers are used for more powerful electrical devices where any surges are likely to be higher – typically commercial and industrial environments. They are designed to trip at currents between five and ten times their rated load.

Are RCBOs worth it?

An rcbo provides additional protection, overload protection and short circuit protection to a single circuit. Rcbos are preferred as, if they trip, they only isolate the faulty circuit, avoiding additional inconvenience to the occupier.

Can you mix and match breakers?

Brand: Always install the correct brand of breakers in your breaker panel. While some breakers are interchangeable, many are not, even if they look the same. Replacing one brand of breaker with another can be dangerous, may void your breaker or panel warranty, and may cause you to fail an electrical inspection.

Does a garage consumer unit need an RCD?

Hi. The cable that supplies the garage unit with power may very well need RCD protection itself. A circuit only requires to be covered by one 30m/a RCD which is already in the main consumer unit (if it isn’t, then that needs doing first), so only a main switch is needed in the garage unit.
