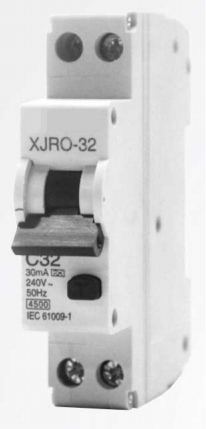

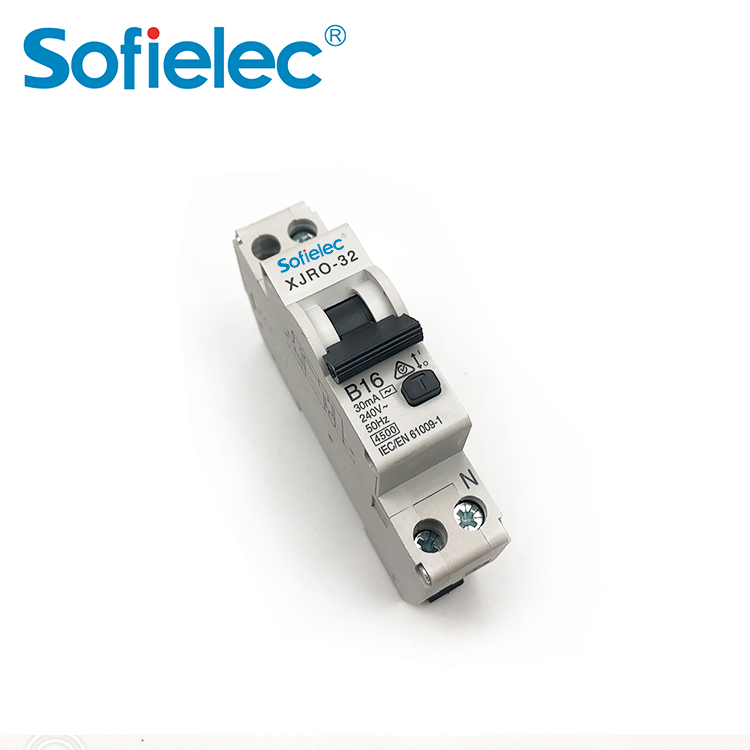

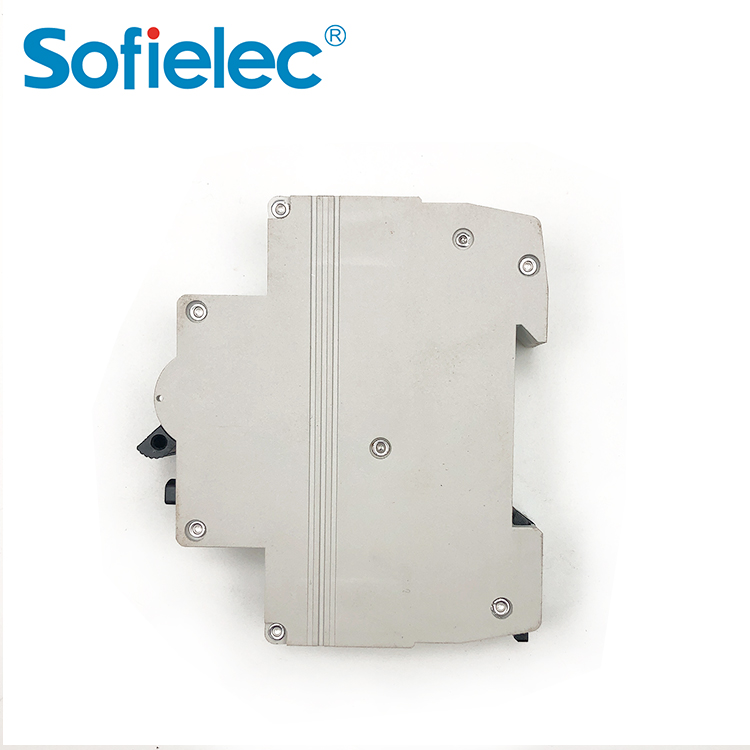

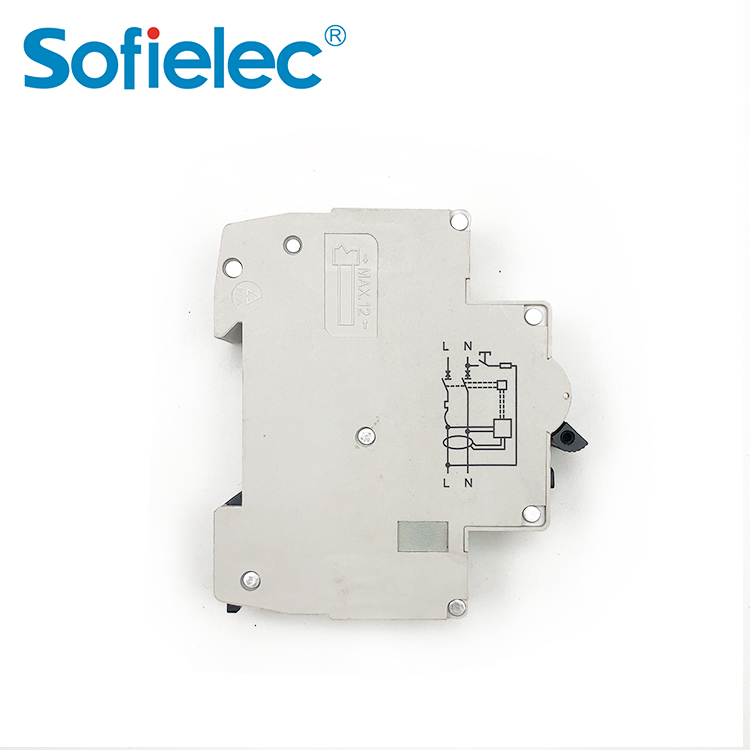

Model XJRO-32
esidual curet chaensics AC,A
Pole No 1P+N
Tripping curve B,C,D
Rated shot-ircuit breaking capacity 4.5kA
Rated current (A) 6, 10, 16, 20, 25, 32
Rated voltage 240V
Rated frequency 50Hz
Rated residual operating current(A) 0.03
Tripping duration instantaneous≤0.1s
Electro-mechanical endurance 4000 cycles
Construcion and Feature

Construction and Feature for Product



■Operating machanism adopt double contact with DPN form,N pole Opening firts,then breaking.
■Leakage protecion adopt electronic type integrated ciruit,Contact ON/OFF state display.
■Trigger has middle-position function and a clamshell to put tags in and characteristic stripes on both sides.
■Provides protection against earth fauit/leakage current,short-circuit,overload,and function of isolation.



Technical Data
■Residual current characteristics:AC,A ■Rated frequency:50Hz ■Fastening torque:1.2N.m
■Pole No.:1P+N ■Rated residual operating current(A):0.03 □On symmetrical DIN rail 35mm
■Tripping curve:B,C ■Tripping duration:instantaneous≤0.1s
■Rated short-circuit breaking capcity:4.5kA ■Electro-mechanical endurance:4000 cycles
■Rated current(A):6,10,16,20,25,32 ■Diaameter of screw d(mm):M4
■Rated voltage:240V ■Degree of protection:IP20

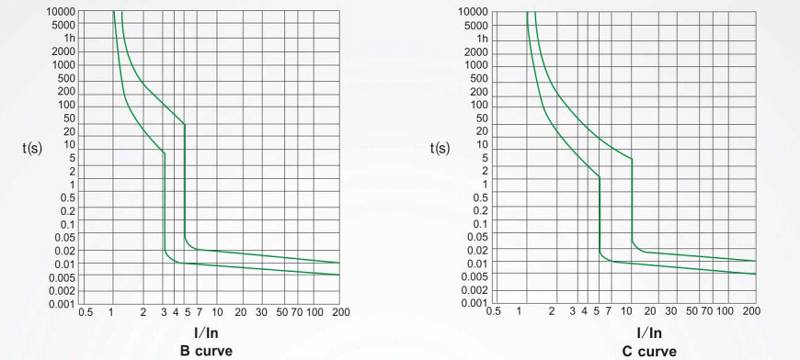

Characteristic Curve

Characteristic Curve

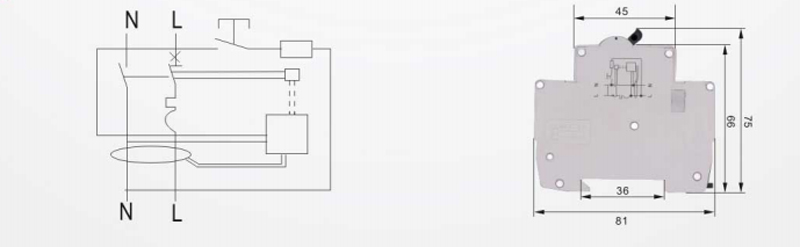

Wiring Diagram

Wiring Diagram
