20KA/40KA Surge Protection Device 80KA Surge Protector XZ-SPD80/65(60)/10

XZ-SPD80/65(60)/40/20/10 Series Surge Protector
XZ-SPD80/65(60)/40/20/10 Series Surge Protector

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

20KA/40KA Surge Protection Device 80KA Surge Protector Product overview



20KA/40KA/ 80KA Surge Protection Device is suitable for low-voltage AC power distribution 50/60Hz,230/400V and belowIT, TT, TN-C, TN-S, TN-C-S and other power supply systems can be connected in parallel on the power line for equal potential when lightning strikes. 80KA Surge Protector mainly used to protect low- voltage customer electrical installations from surges caused by atmospheric discharge (e.g. to indirect lightning) or other operating instantaneous overvoltages. As a single voltage limiting device. Products in line with GB 18802.1, GB50057 and IEC/EN61643- 11 standards.



The SPD has a built-in disconnector. When the SPD fails due to overheating or breakdown, the disconnector can automatically disconnect it from the power grid and give an indication signal. The visual window displays green when SPD is working normally, and red when it disengages.



20KA Surge Protection Device shall be installed at the end of the upline (immediately connected to the downline of the pull-in wire) required to protect the customer's equipment, connecting the outer lead (L) or neutral lead (N) to the grounding device of the customer's equipment. 20KA Type 2 SPD is installed at the junction of LPZOB/LPZ1 and LPZ2 with 35mm standard guide rail and 2.5-35mm copper multi- stranded wire.



Each front pole of SPD surge protector must be connected in series with XZSCB series surge backup protector or fuse.



40KA Surge Protection Device(40KA Surge Protector) installed in the line of low voltage main distribution cabinet, used for the protection of the secondary power supply equipment, used in the floor of vulnerable to lightning distribution cabinets, elevator, fire control, network equipment, such as in the center of the civil building distribution box, computer, telecom equipment room, elevator, fire control center control room, cable TV room, villa, village resident distribution box, etc.





20KA/40KA/ 80KA Surge Protector Main technical parameters



Specifications XZ-SPD80 XZ-SPD65(60) XZ-SPD40 XZ-SPD20 XZ-SPD10
The number of 1P、2P、3P、4P
In(8/20μs)
Nominal discharge current
40kA 30kA 20kA 10kA 5kA
lmax(8/20μs)
Maximum discharge current
80kA 60(60)kA 40kA 20kA 10kA
Uc(VAC)
Maximum Continuous Operating Voltage
320 385 420 275 320 385 385 420 36 150 275 320 385 440 750 1000 275 320 385 420 275 320 385 420
Uc(kV)
Voltage protection level
2.0 2.2 2.5 1.6 1.8 1.8 2.0 2.2 0.5 1.0 1.5 1.6 1.8 2.0 3 3.5 1.2 1.4 1.5 1.8 1.0 1.2 1.3 1.6
(ns) Response time <25
Protection grade IP20
The filure indicator Green is normal, red is neffective
Test cassification Class II
Ambient limit temperature TU -40℃~80℃
Front over current protection device XZSCB-80 XZSCB-60(65) XZSCB: T2 level
Type of installation 35mm standard guide rail is used for nalalation
(mm2)
Induced power line cross- sectional area
2.5-35mm2/ Multicore flexible cable
Note Remote signal function can be added, other maximum continuous working vltage uC can be customized

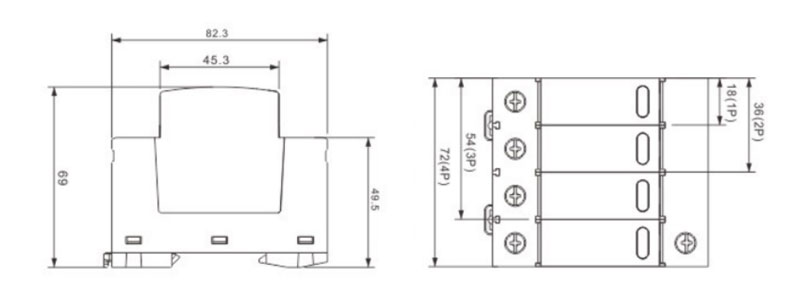

20KA/40KA/ 80KA Surge Protector Overall dimensions
