The state-of-art design

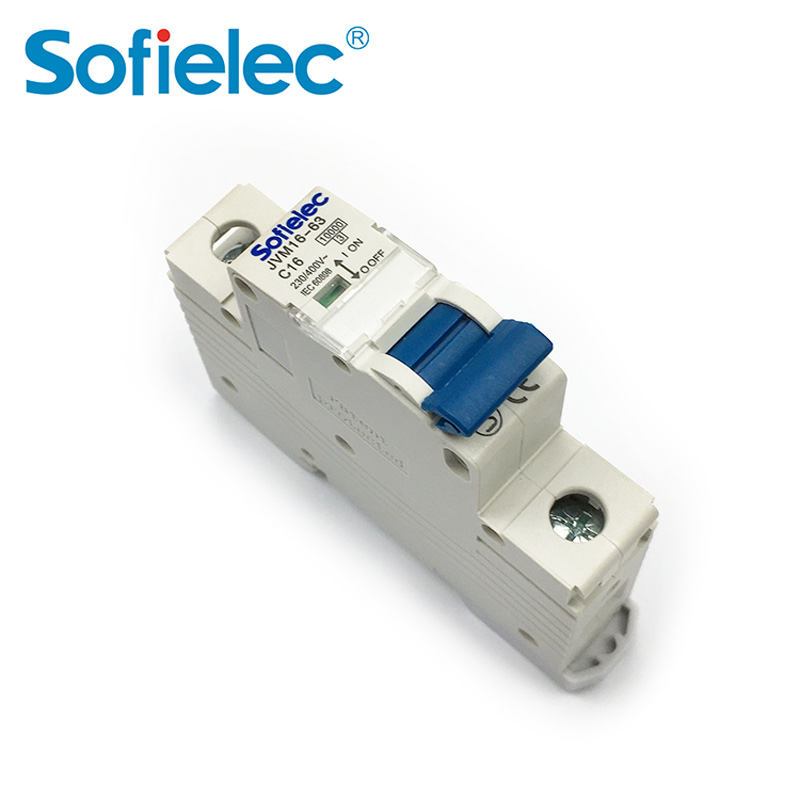

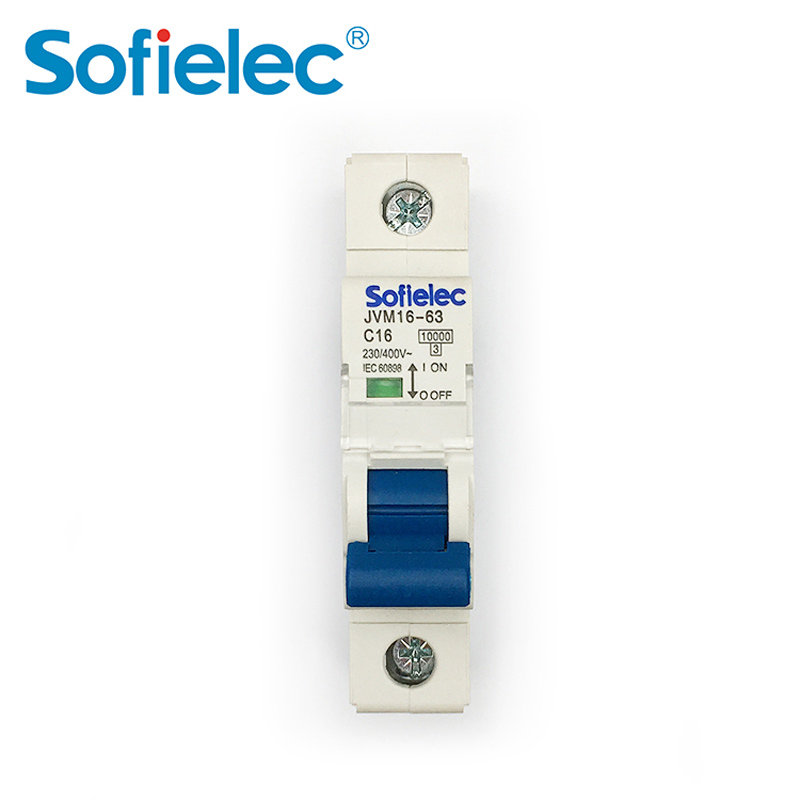

Elegant appearance; cover and handle in arc shape make comfortable operation.
Contact position indicating window
Transparent cover designed to carry label.





Categories

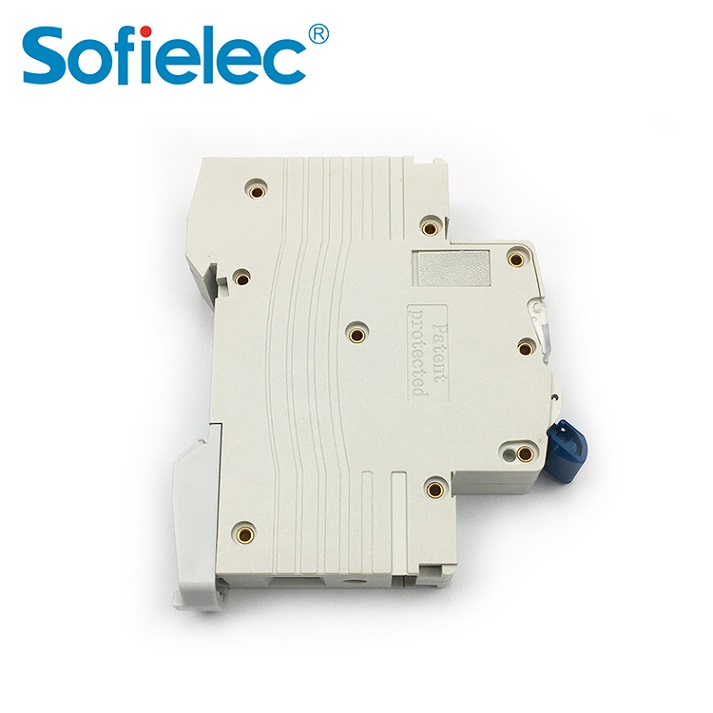

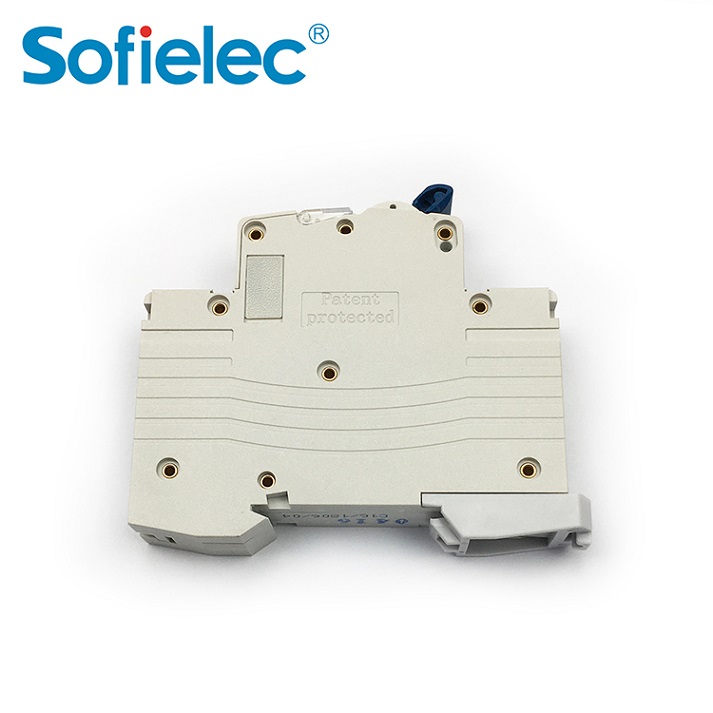

Superior 10kA 16 Series Circuit Breaker
Model JVM16-63

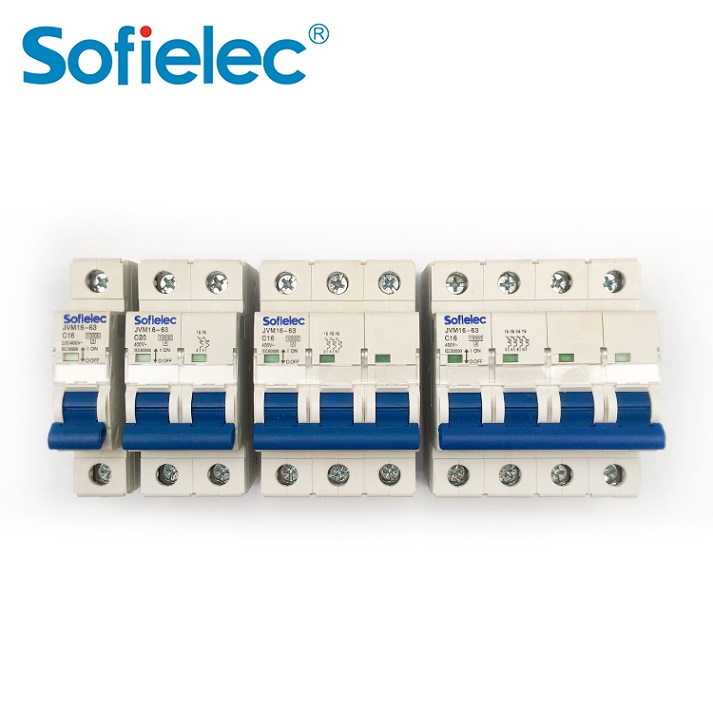

Pole No 1, 1P+N, 2, 3, 3P+N, 4
Rated voltage AC 230/400V
Rated current (A) 1,2,3,4,6, 10, 13, 16, 20, 25, 32, 40, 50, 63
Tripping curve B,C,D
Energy limiting class 3
Rated frequency 50/60Hz
Rated impulse wihstand voltage 6.2kV
High sho-ciruit breaking capacity (lcn) 10KA
Rated serie sh-ircut breaking cpait(cs) 7.5KA
Eletr-mechanical endurance 20000





Technical Data
JVM16-63 circuit breaker

l Pole No.: 1, 1P+N, 2, 3, 3P+N, 4

l Rated voltage: AC 230/400V

l Rated current (A):1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63

l Tripping curve: B, C, D

l High short-circuit breaking capacity (Icn): 10kA

l Rated service short-circuit breaking capacity(Ics): 7.5kA

l Rated frequency: 50/60Hz

l Energy limiting class: 3

l Rated impulse withstand voltage: 6.2kV

l Electro-mechanical endurance: 20000

JVM16-63 circuit breaker

l Contact position indication

l Connection terminal:Screw terminal
                               Pillar terminal with clamp

l Connection capacity: Rigid conductor up to 25mm ²

l Terminal Connection Height: 19mm

l Fastening torque: 2.0Nm

l Installation:On symmetrical DIN rail
                35mm
                Panel mounting

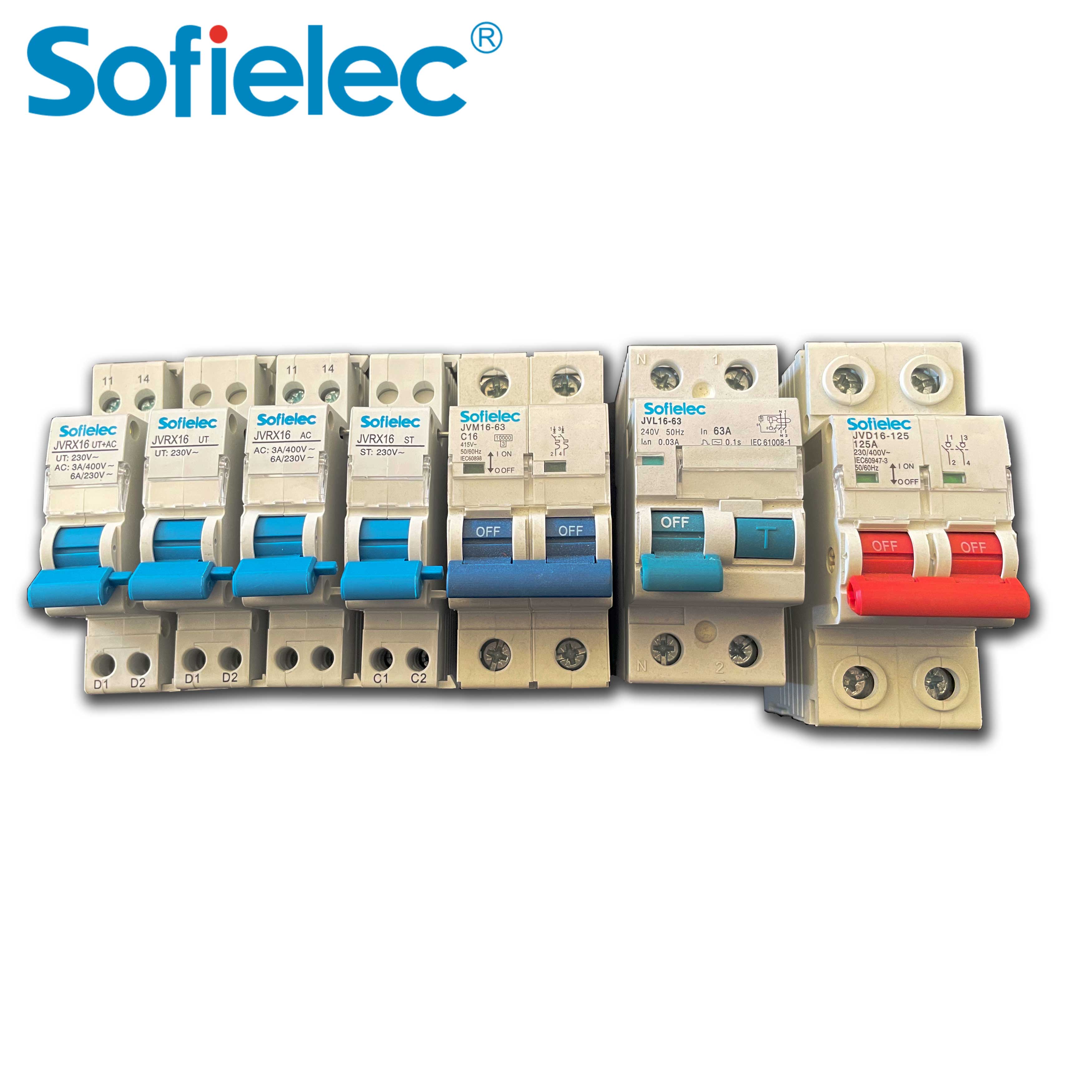

Accessories

F3 Auxiliary contact

S3 Shunt tripper

JVRX16 Auxiliary

SD3 Alarm Switch

U3+O3 Over-Voltage/

Under-Voltage Tripper

Construction and Feature
● The state-of-art design

● Elegant appearance; cover and handle in arc shape make comfortable operation. Contact position indicating window Transparent cover designed to carry label.

● Handle central-staying function for circuit fault indicating

● In case of overload, to protected circuit, MCB handle trips and stays at central position, which enables a quick solution to the faulty line. The handle cannot stay in such position when operatedmanually.

● High short-circuit capacity

● High short-circuit capacity 10KA for whole range and 15kA capacity for current rating up to 40A thanks to the powerful electric arc extinguishing system.

● Long electrical endurance up to 6000 cycles thanks to quick making mechanism. Handle padlock device

● MCB handle can be locked either at “ON” position or at “OFF” position to prevent unwanted operation of the product.

● Screw terminal lock device

● The lock device prevents unwanted or casual dismounting of connected terminals.

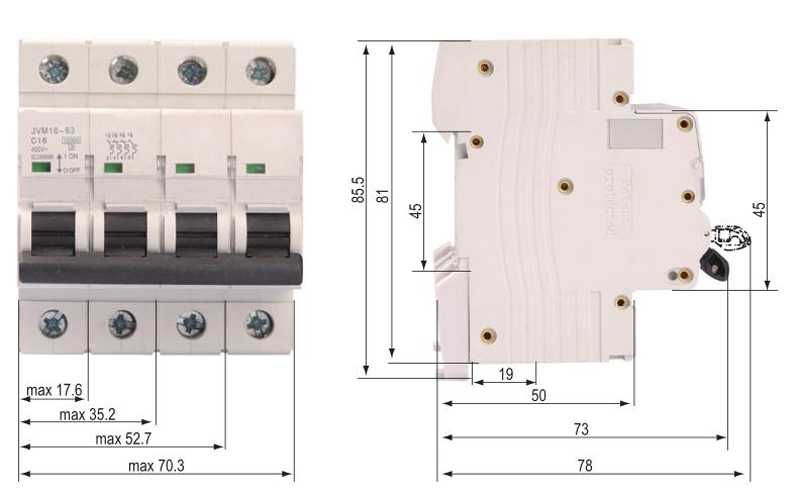

Overall & Installation Dimensions
JVM16-63 circuit breaker parameter

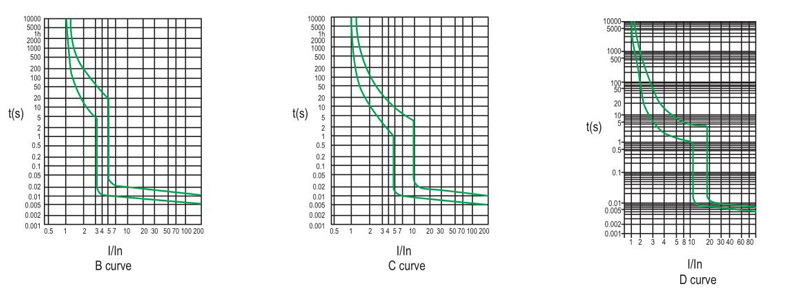

Characteristic Curve
Characteristic Curve
