ZHRT1-F Sofielec time relay

ZHRT1-F Sofielec time relay
ZHRT1-F Sofielec time relay
Categories Time Relay
Model ZHRT1-F
Rated control supply voltage DC12V. DC24V AC110V. AC220V. AC380V AC/DC 24V ~24
Rated power consumption AC:≤1.5VA DC:≤1W
Delay range 0.1s~100h multi range adjustment
Setting accuracy ≤5%
Repeat accuracy ≤0.2%
Repeat power- on interval ≥200ms
Altitude ≤2000m
Contact configuration capacity(A) 1 C/O 8A;2 C/O 5A
IP Class IP 20
Use category AC-15
Function



Applications

Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection  of  over-voltage,  under  voltage, phase failure, phase sequence and phase unbalance. When the power  supply is abnormal, turn off power supply to protect the equipment.

Features

Built-in microprocessors, true RMS measurement, voltage measurementaccuracy ≤ 1%. Measuring frequency 45Hz~65Hz, knob setting. LED indicator shows working status. Rated voltage three-phase three-wire 220V~ 460Vuniversal. DIN-rail mounting.

Rated control supply voltage DC12V、DC24V、AC110V、AC220V、AC380V、AC/DC 24V~240V 50/60Hz
Rated power consumption AC:≤1.5VA DC:≤1W
Delay range 0.1s~100h Multi range adjustment
Setting accuracy ≤5%
Repeat accuracy ≤0.2%
Repeat power-on interval ≥200ms
Electrical life 105
Mechanical life 106
Altitude ≤2000m
IP Class IP 20
Class of pollution
Contact configuration capacity(A) 1 C/o 8A;2 C/O 5A
Use category AC-15
Contact capacity Ue/Ie AC240V/1.5A, AC 380V/0.95A
Standard Guide Width 35mm(IED/EN60715)

Function Diagram

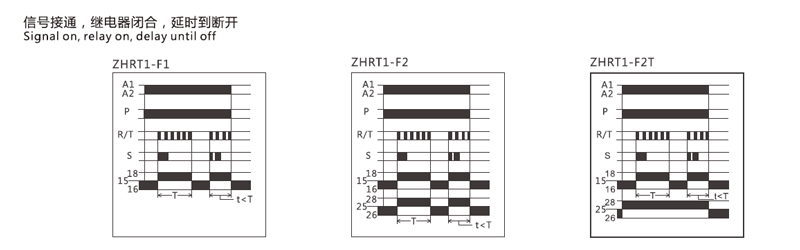

Function Diagram:Signal on,relay on,delay until off
Wiring Diagram

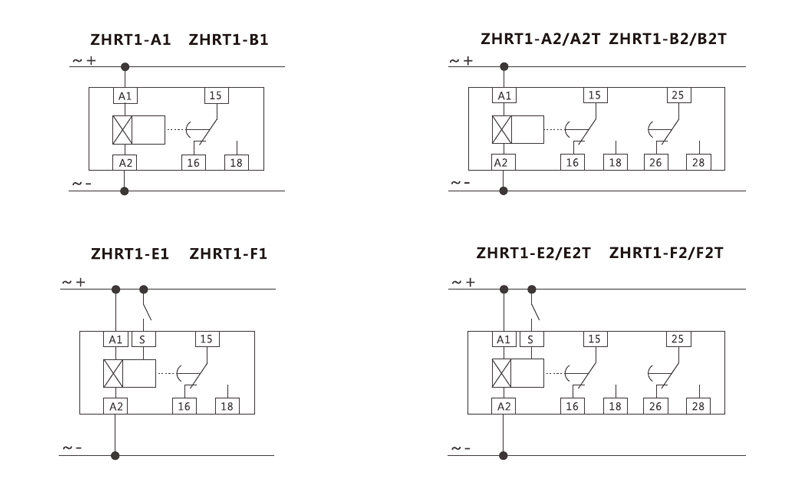

Wiring Diagram:ZHRT1-A1 ZHRT1-B1,ZHRT1-A2/A2T ZHRT1-B2/B2T,ZHRT1-E1,ZHRT1-F1,ZHRT1-E2/E2T ZHRT1-F2/F2T
Dimensions

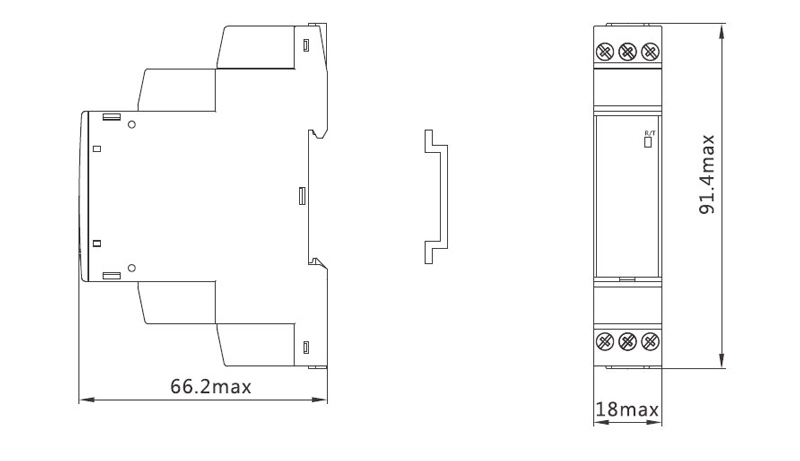

Dimensions
