| Categories | Time Relay |
| Rated supply voltage | DC12V AC/DC 24V~240V 50、60Hz |
| Rated power consumption | ≤1W |
| Delay range | 0.1s~100h |
| Setting accuracy | ≤5% |
| Repeat accuracy | ≤0.2% |
| Repeat power-on interval | ≥200ms |
| Altitude | ≤2000m |
| Contact configuration capacity(A) | C/O:16A,2C/O:16A,3C/O:8A,2C/O+1 instantC/O:8A+16A |
| Contact capacity | Ue/Ie AC240V/1.5A |
| Ѕtаndаrd Guіdе | (width)35mm |
Function
Applications
Used in control cabinets, cabinets and other electrical control circuit,according to the scheduled time automatically switch on or off the circuit.
Features
Built-in microcontrollers, 0.1s ~100h wide delay range, repeat accuracy <0.2%. Knob setting, LED indicator shows working status. Variety of optionalrated voltage. DIN rail mounting.
| Rated control supply voltage | DC12V. AC/DC 24V ~240V 50/60Hz |
| Rated power consumption | ≤1W |
| Delay range | 0.1s~ 100h |
| Setting accuracy | ≤5% |
| Repeat accuracy | ≤0.2% |
| Repeat power-on interval | ≥200ms |
| Electrical life | 105 |
| Mechanical life | 106 |
| Altitude | ≤2000m |
| Contact configuration capacity(A) | 1C/O:16A ,2C/O:16A, 3C/O:8A,2C/0+1 instant C/O:8A+ 16A |
| IP Class | IP20 |
| Class of pollution | II |
| Use category | AC-15 |
| Contact capacity | Ue/Ie AC240V/1.5A |
| Contact capacity | 1C/0 ,2C/O,3C/O,2C/0+1 instant C/0 |
| Standard Guide | width:35mm(IEC/EN60715) |

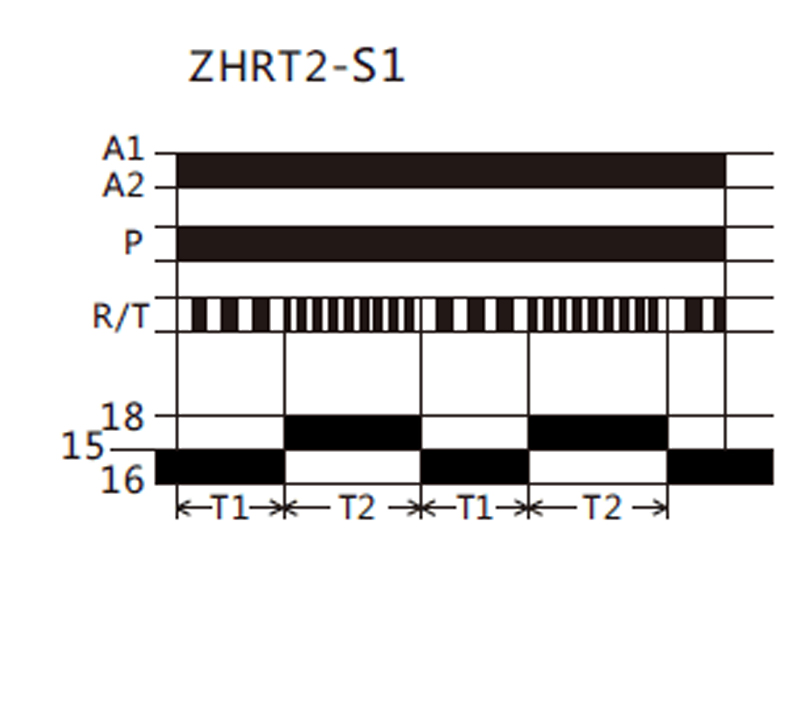

Function Diagram

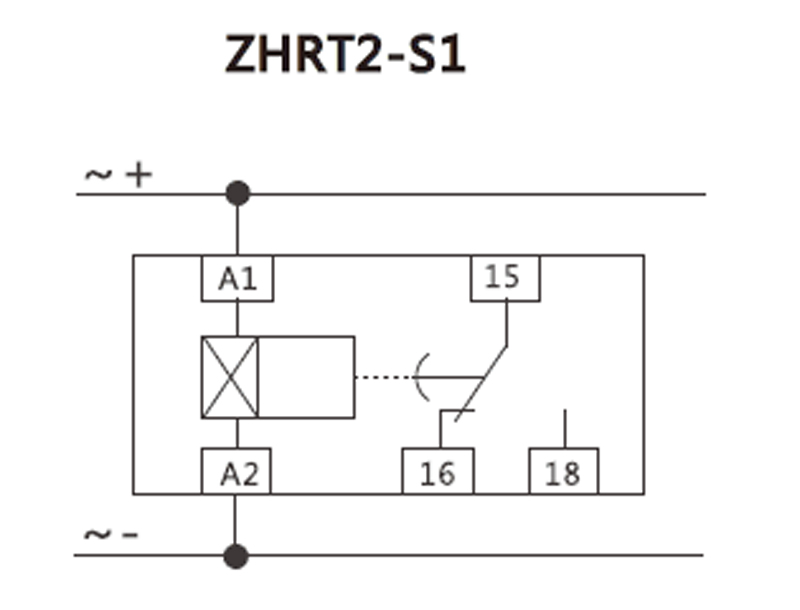

Wiring Diagram

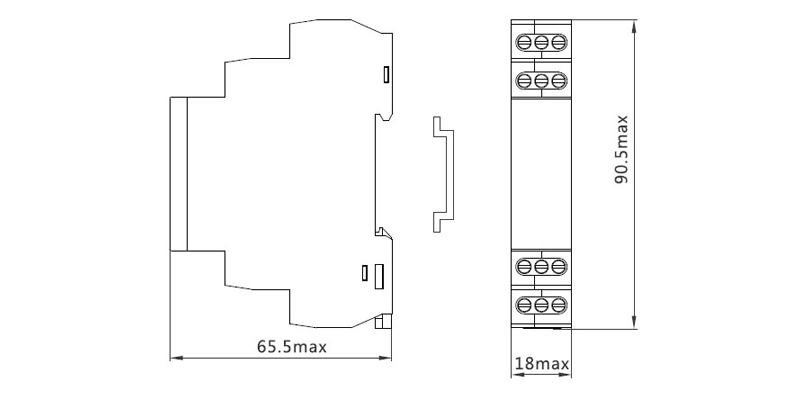

Dimensions
