AHC810 series Digital time switch

AHC810 series Digital time switch
AHC810 series Digital time switch

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

Categories Time Switch
Model AHC810
Supply voltage 230Vac, 50Hz other voltages on request
Switching capacity (per channel) resistive load: 16 A / 250 V~ at cosφ=1
Switching capacity (per channel) inductive load: 10 A / 250 V~ at cosφ=0,6
Minimum interval 1 Min.
Time accuracy at 25 °C ≤± 2 Sek./day (quartz)
Power reserve approx. 5 years
Housing and insulation material Self-extinguishing thermoplastic
Type of protection IP 20
Class of protection II according to EN 60 730-1
Permitted ambient temperature -10 ~ +50 °C (non-icing)
Test approval CE
Application

AHC810 series fits for the particular use of the following tasks: Illumination of private and industrial areas, street and shop-window lightening, regulation of air conditioning, flushing, motors, pumps, plants and machinery as well as to simulate presence etc.

Description

1 channel or 2 channels

Fully operable without mains connection

Daily and weekly program

Preset date and time

44 ON/OFF program

PIN Code

Full automatic Daylight saving time

5 years battery reserve

6 Languages (English/Spain/France/Portugal/Germany/Italy)

Built-in lithium battery, keep working when power failure.

EXTRA FUNCTION for AHC811 AHC822: Random or Holiday program; 20 pulse

programs(1s~59m59s); 18 Cycle program

Maximum recommended load (10,000 operations)

Filament /

Halogen lamp

230V

Compact

Fluorescent

Lamp

LED lamp

230V > 5 W

Fluorescent

lamp with

electronic

ballast

Fluorescent

lamp

uncompens

ated

Fluorescent

lamp series

compensat

ed

Fluorescent

lamp

parallel

compensat

ed

2600 W

200 W

200 W

650 W

1000 W

1000 W

550 W

Technical date
supplier voltage 230Vac,50Hz other voltage on request
Switching capacity(per channel) resistiv load:16A/250V~at cosφ=1
inductive load:10A/250V~at cosφ=0,6
Minimum interval 1 Min
Time accuracy at 25℃ ≤±2 Sek./day(quartz)
Power reserve approx. 5 years
Housing and insulation material Self-extinguishing thermoplastic
Type of protection IP 20
Class of protection ll according to EN 60 730-1
Permitted ambient temperature -10~+50℃(non-icing)
Test approval CE

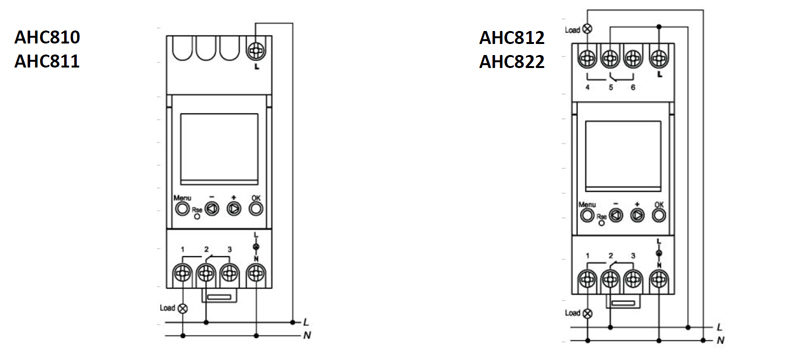

Wiring diagram

Wiring diagram

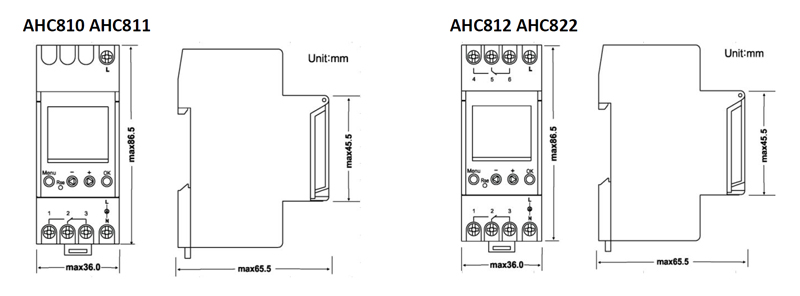

Dimensions

Dimensions
