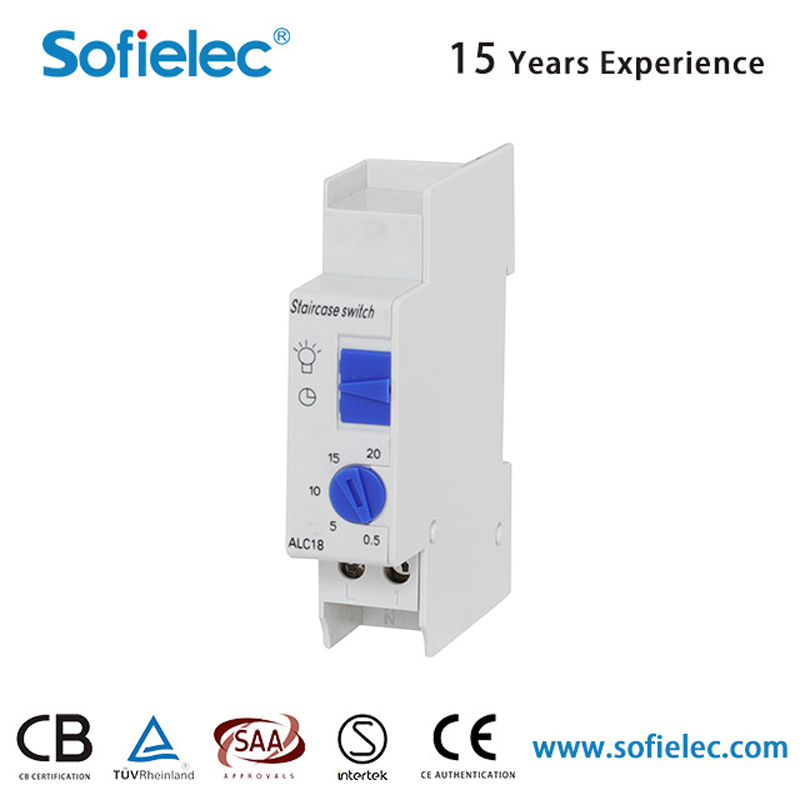

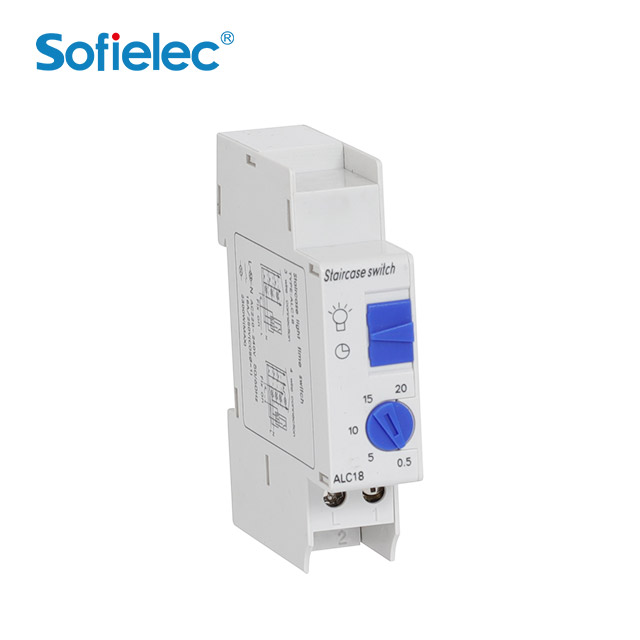

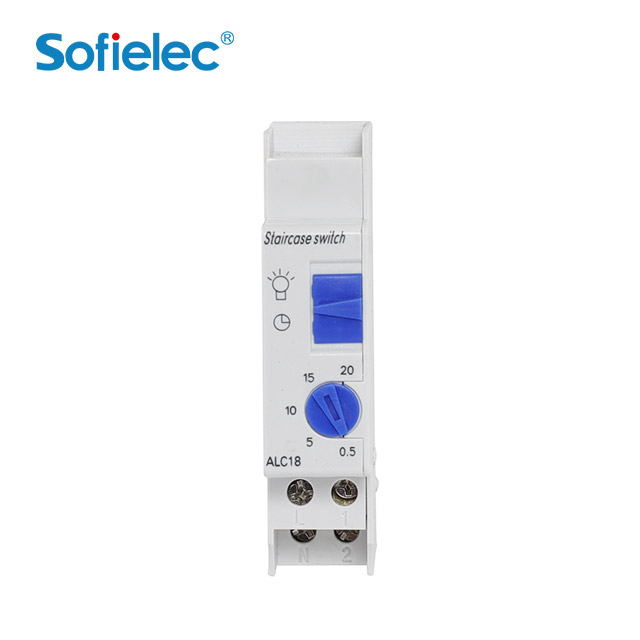

ALC18 20 Minutes 0.5 Minimum time switch

Din rail staircase time switch

Toggle switch for permanent light

External push switch control

 Countdown period: 30s~20m

 0~20m: +/- 150s

0~30s: +/- 3s

 Screw terminals

ALC18E: Input with electronic overload protection

              Connected glow lamp in parallel

 Glow lamp load : 150mA Max

Applications:Staircase,Corridor,Lobby
Technical Data

Type

ALC18/ALC18E

Operating voltage

230V AC

Frequency

50 Hz

Width

1 modules

Installation type

Din rail

Glow lamp load

NC/150mA

Setting range time

0.5-20 min

Terminal  Quantity

4

1/2-way conductors

Automatic

Switching output

Potential-free and phase-independent

Method of connection terminal

Screw terminals

Incandescent/halogen lamp load 230V

2300W

Fluorescent lamp load (conventional) lead-lag circuit

2300W

Fluorescent lamp load (conventional)
parallel-corrected

400 VA 42uF

Energy saving lamps

90W

LED lamp < 2 W

20W

LED lamp 2–8 W

55W

LED lamp > 8 W

70W

Fluorescent lamp load (electronic ballast)

350W

Switching capacity

10A (at 230V AC cos φ = 0.6 ) ,16A (at 230V AC cos φ = 1 )

Consumed power

4VA

Test approval

CE

Type of protection

IP 20

Protection class

II according to EN 60 730-1

Housing and insulation material

High-temperature resistant, self-extinguishing thermoplastic

Work  temperature

-10 ~ +50 °C (non-icing)

Ambient humidity

35~0.85 RH

Connection Example

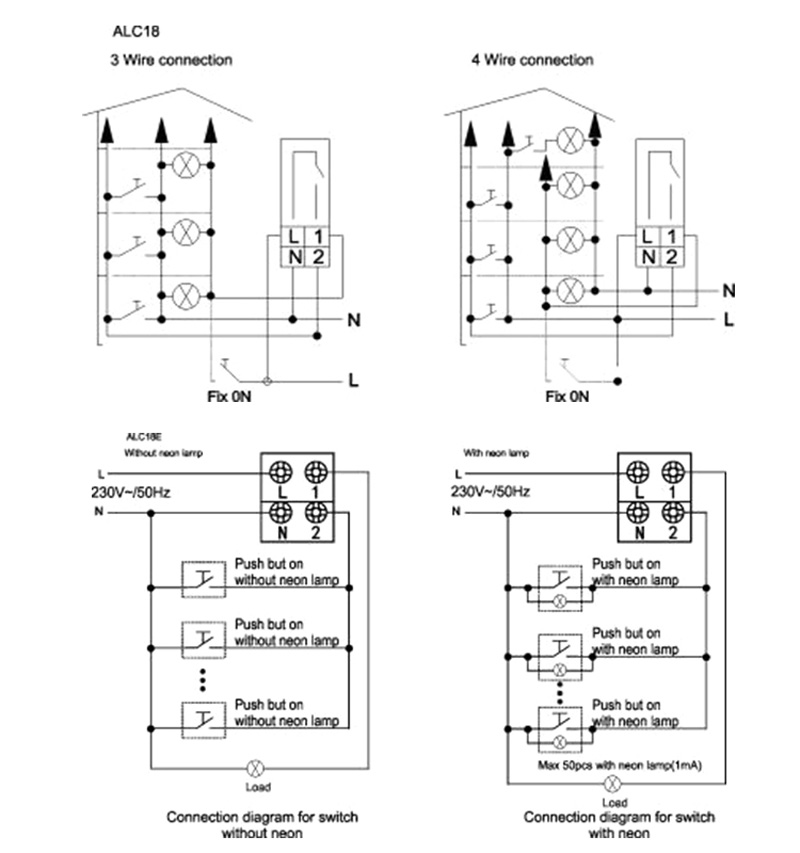

Connection Example:ALC18 3 Wire connection,4 Wire connection,Connection diagram for switch without neon
Scale Drawings

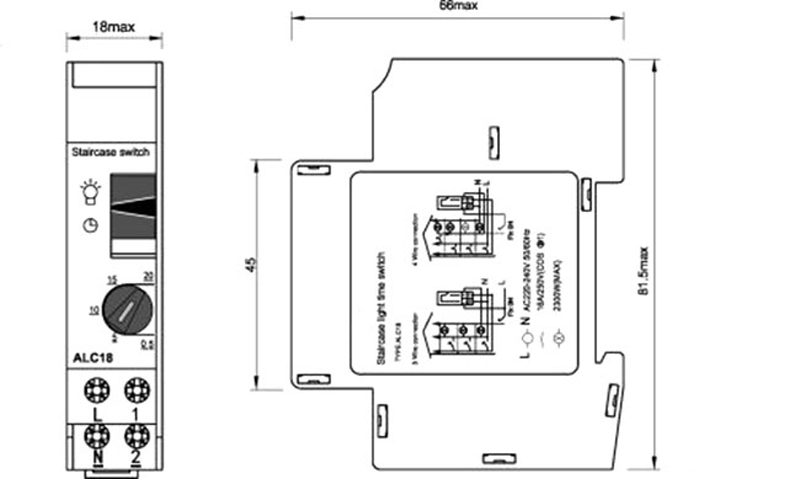

Scale Drawings
