Categories：Time Switch

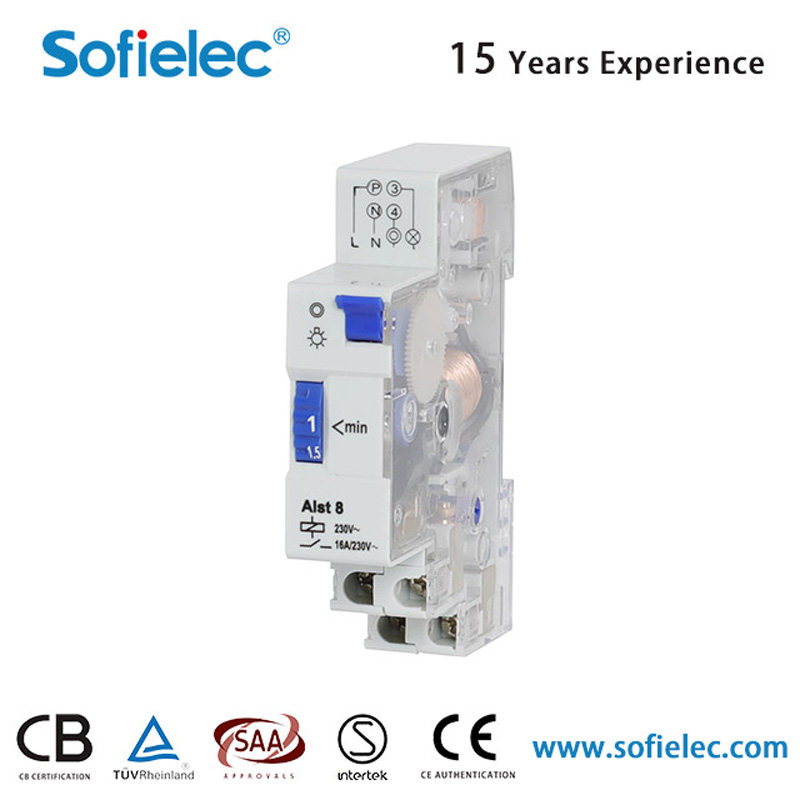

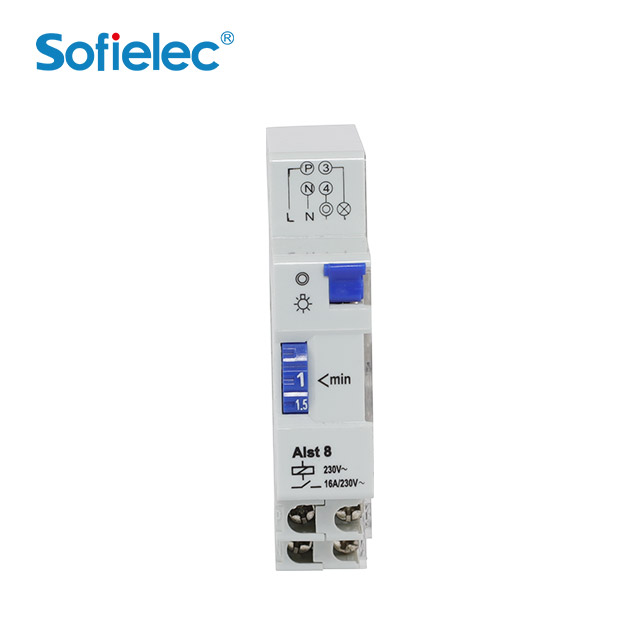

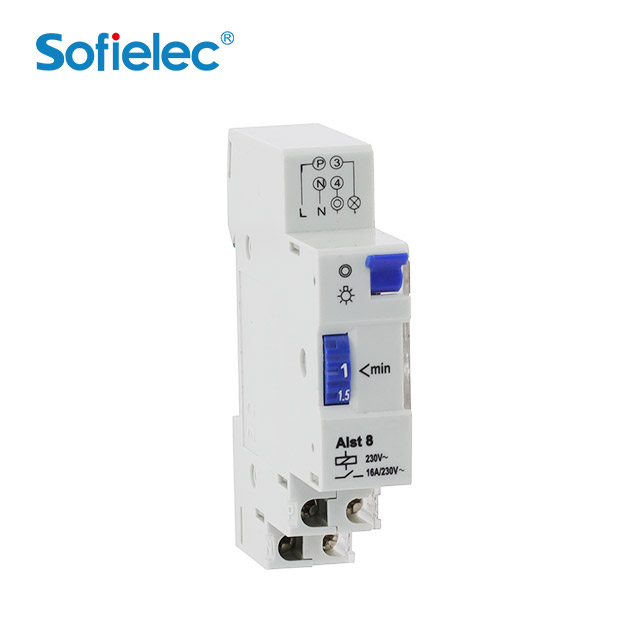

Model：ALst8
Function
|
Staircase time switch, electron-mechcanicsm |
|
4 conductor with floor lighting connection |
|
3 conductor without floor lighting (no longer permitted for new systems) |
|
Retriggerable |
|
No closed-circuit current consumption |
|
Toggle switch for permanent light ON |
|
Reliable due to synchronous motor drive |
|
Simplest possible time setting and direct delay time readout on absolute scale |
|
Precision mechanics and therefore exact switching period |
|
Low sensitivity to interference |
Technical Data
|
Operating voltage |
230V AC |
|
Frequency |
50 Hz |
|
Width |
1 modules |
|
Installation type |
Din rail |
|
Stand-by consumption |
0 W |
|
Glow lamp load |
50mA |
|
Setting range time |
1 – 7 min |
|
Type of connection
|
Automatic |
|
3/4-way conductors |
Yes |
|
Secondary switching |
After 30 s |
|
Type of contact |
NO contact |
|
Opening width |
> 3 mm |
|
Switching output |
Not potential-free (230 V) |
|
Incandescent/halogen lamp load |
2300 W |
|
Fluorescent lamp load (conventional)lead-lag circuit
|
2300 VA |
|
Fluorescent lamp load (conventional) parallel-corrected |
1300 VA 70 uF |
|
energy saving lamps |
150 W |
|
LED lamp |
< 2 W = 30 W or > 2 W < 8 W = 90 W |
|
Fluorescent lamp load (electronic ballast) |
600 W |
|
Fluorescent lamp load (conventional)series-corrected |
2300 VA
|
|
Switching capacity |
6 A (at 230 V AC, cos φ = 0.3), 16 A (at 230 V AC, cos φ = 1) |
|
Switch for permanent light |
Toggle switch |
|
Housing and insulation material |
High-temperature resistant, self-extinguishing |
|
Ambient temperature |
-10 °C … +50 °C |
|
Protection class |
II in accordance with EN 60 730-1 |
|
Type of protection |
IP 20 |

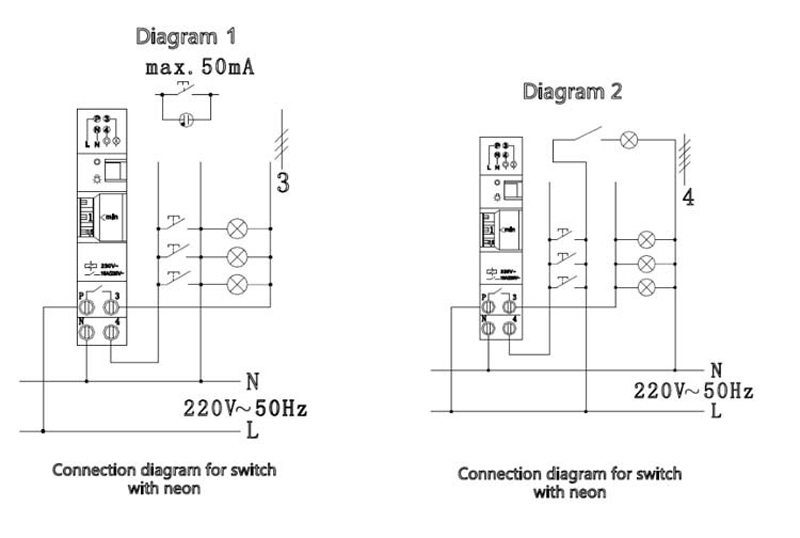

Connection Example

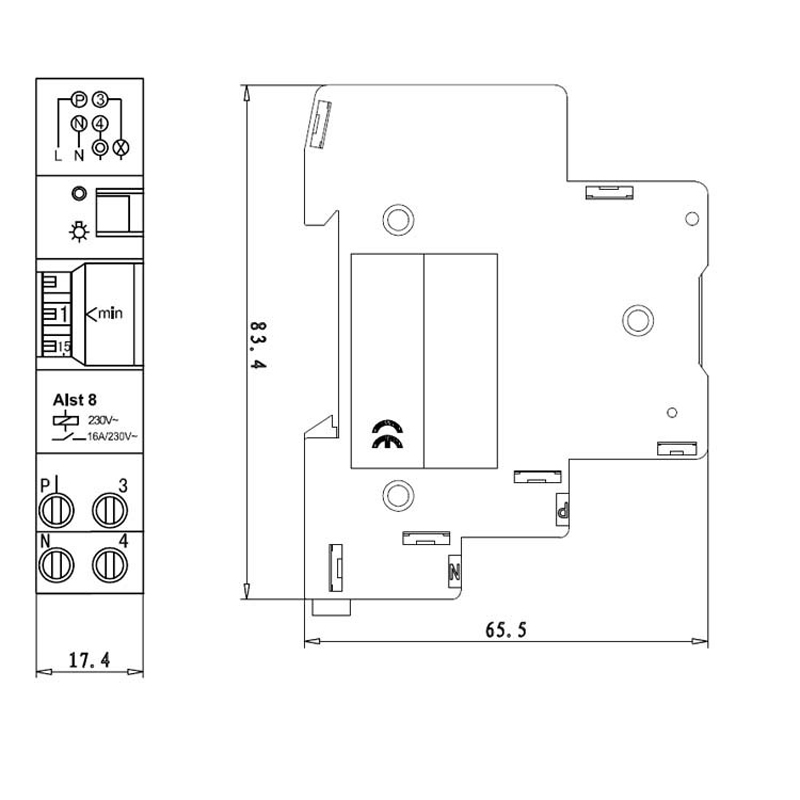

Scale Drawings
Other
